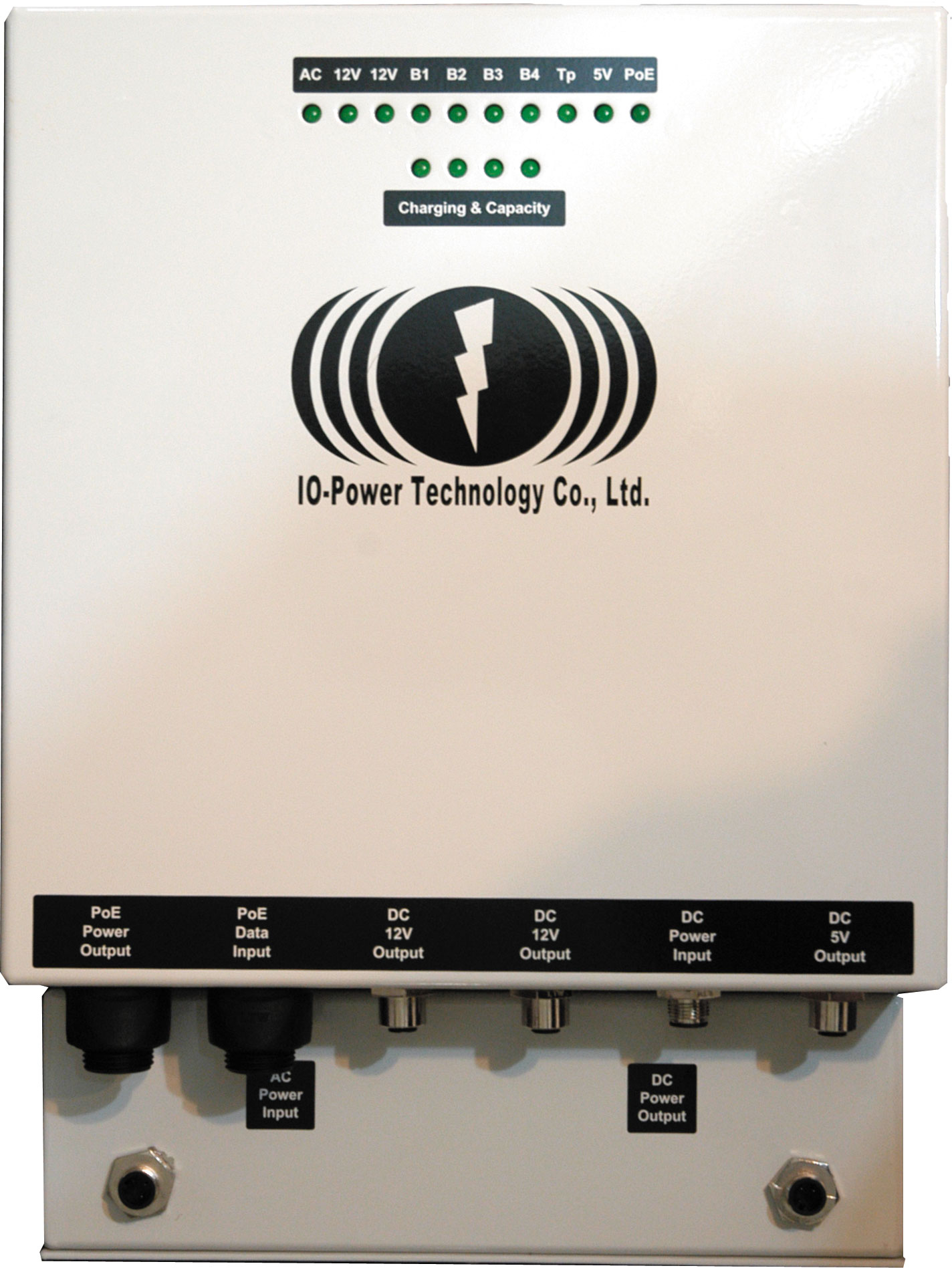

IO-Power USRP-12V1060-OA Series

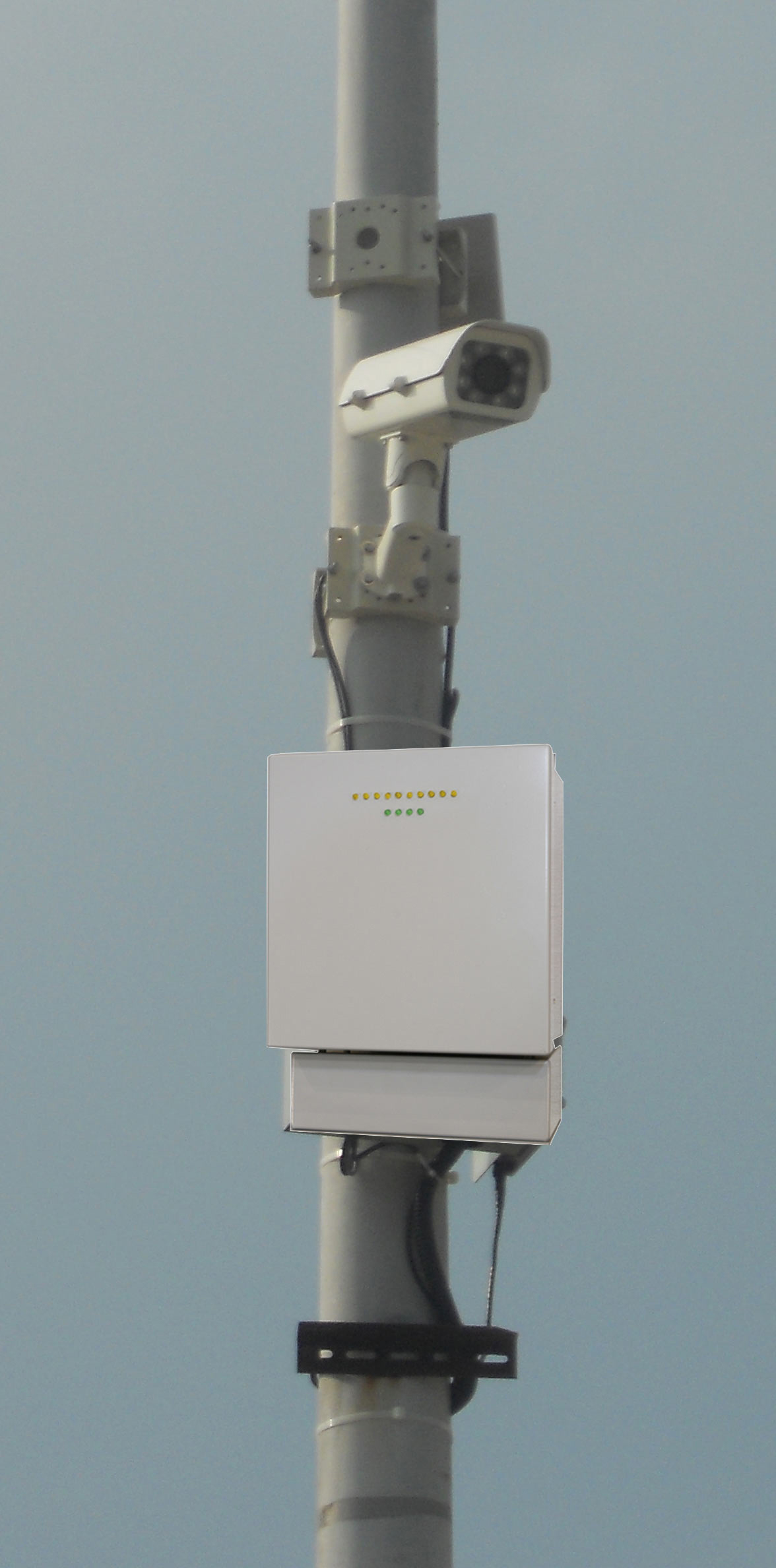

Outdoor Multi-Function Street Lamps Model
Online Type Street Lamps Uninterruptible Recharge Power System



IO-Power USRP-12V1060-OA series, specifically targeted at systems engineering at the time of outdoor construction, was unable to make stable and effective source of power, resulting in project implementation cannot be complete acceptance problems facing proposed integration of the original street lamps and high and low temperature resistance of C-LiFePO4 lithium batteries power new outdoor power system solution, completely solve the system operators in outdoor construction cannot get stable power problems effectively.

IO-Power technology import high and low temperature resistance of the latest technology batteries, supplemented with independent charge and discharge in parallel invention patented microprocessor design and unique charging and discharging control management system, matching many kinds is designed for all types of data transmission, video monitoring and control system equipment, such as the design of power supply port, construction-become a Multifunctional Online Type Street Lamps Uninterruptible Recharge Power System. It is worth mentioning, outdoor multifunctional online type street lamps uninterruptible recharge power system, distributed systems application architecture design, easily solve the conventional centralized electricity systems, unable to cope with the outdoor system establishment characteristics around the system in a decentralized, more highlighting the multi-functional online without disrupting the operation of power systems advantages of outdoor use.

IO-Power USRP-12V1060-OA series, take online type does not interrupt of stability long-term street lamps power supply system design, special for take with outdoor street lamps 240V AC power, thought battery night supplementary power of sources, by match long-term of C-LiFePO4 lithium battery can power supply time over 14 hours above, enough due to should summer more long of device day operation time; day multiple load device through microprocessor of charging and discharging module, indirect by C-LiFePO4 lithium battery made by required of operation DC power, night is modified by street lamps controller of circuit power made power, the AC power by transformer go DC electric power, through microprocessor circuit on multiple load device for directly supply power, same time of street lamps circuit power also through microprocessor of charging and discharging module, on C-LiFePO4 lithium battery for their independent of charging control and the battery charging balance.

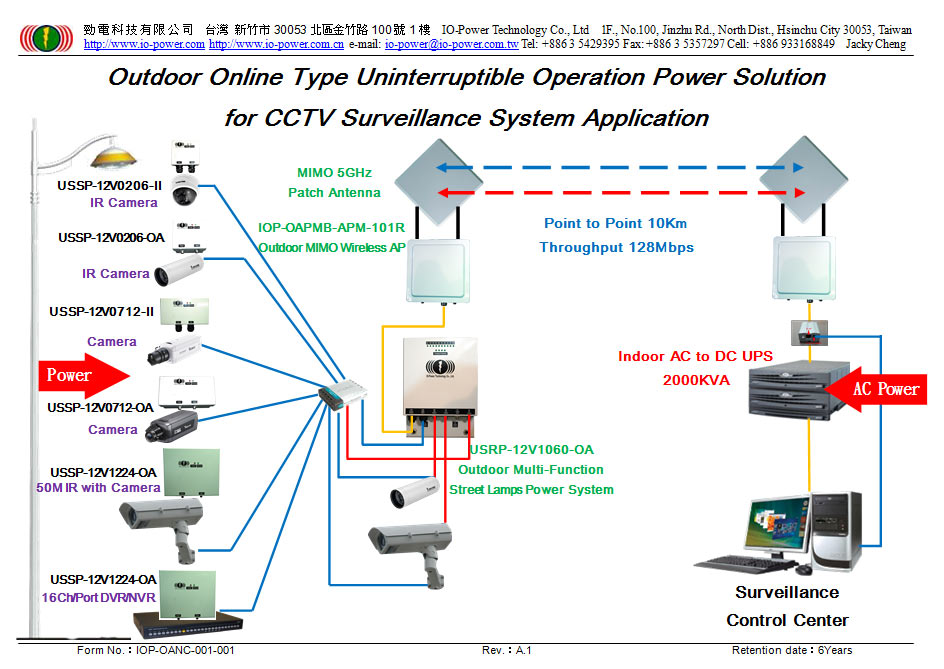

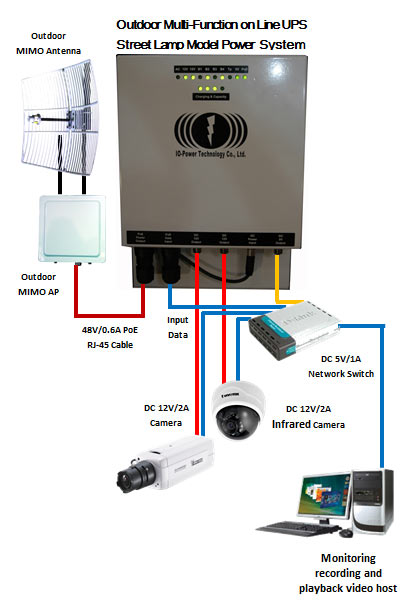

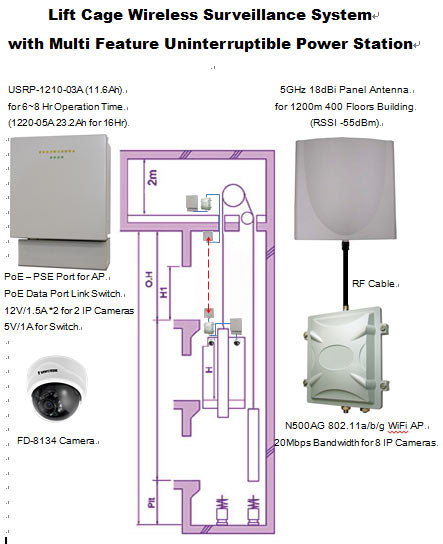

Multifunctional online type street lamps uninterruptible recharge power system, except match street lamps power application characteristics outside, more provides including: 2 Port 12V/1.5A DC power, 1 Port 5V/1A DC power and the 1 Port 48V/0.6A PoE-PSE Port, can directly application to outdoor surveillance system, outdoor long distance wireless surveillance system, outdoor infrared surveillance security system, outdoor infrared projection lamp, outdoor data capture device system, outdoor alternate power system, expressway charges trading video monitoring and the license plate identification records system, outdoor large electronic advertising licensing transmission system, elevator security video monitoring system, mobile power supply system, mine and the special work environment device system,  financial institutions security protection system and fire security system … and so on.

Also, consider to different of outdoor system exists many different size load power demand and outdoor high and low temperature environment on battery of power supply capacity and the cycle using life of interference, special design can parallel expanded battery capacity of matching platform, from minimum of 11.6Ah (148WH) battery capacity, matching expanded to 62.4Ah (798WH) of battery capacity, to due to should systems engineering commercial erection construction environment of changes using power capacity demand.

IO-Power USRP-12V1060-OA series aluminum metal thermal protective shell and using industrial-grade design of water and dust proof to IP67 and high and low temperature resistance industrial M12 connector, to meet the outdoor temperature of -20° C ~ +45° C harsh of environment temperature trials, day and night for outdoor systems can still normal operation of the security and stability.

USRP-12V1060-OA Series Specification (* Patent Pending)

Model

RP-1103A
(IOP-USRP-1210-03A)

RP-1205A
(IOP-USRP-1220-05A)

RP-1306A
(IOP-USRP-1230-06A)

RP-1409A
(IOP-USRP-1240-09A)

Outdoor Model
Industrial M12 Connector
Industrial Aluminium
Radiating Airtight Housing
IP67



Power Capacity

148WH

297WH

445WH

594WH

AC Power Switch
Input AC Voltage/Amp

90-264V / 3A  50/60Hz

90-264V / 3A  50/60Hz

90-264V / 3A  50/60Hz

90-264V / 3A  50/60Hz

AC Power Switch
Output DC Voltage/Amp

15.5V / 10A Max
(PFC Function Optional)

15.5V / 14A Max
(PFC Function Optional)

15.5V / 14A Max
(PFC Function Optional)

15.5V / 20A Max
(PFC Function Optional)

DC to DC for Device

1.11V ~ 13V +- 3% / 1.5A Max
2.11V ~ 13V +- 3%/ 1.5A Max
3. 5V +- 3% / 1A Max
4. 48V / 0.6A PoE (PSE Port)

1.11V ~ 13V +- 3% / 1.5A Max
2.11V ~ 13V +- 3%/ 1.5A Max
3. 5V +- 3% / 1A Max
4. 48V / 0.6A PoE (PSE Port)

1.11V ~ 13V +- 3% / 1.5A Max
2.11V ~ 13V +- 3%/ 1.5A Max
3. 5V +- 3% / 1A Max
4. 48V / 0.6A PoE (PSE Port)

1.11V ~ 13V +- 3% / 1.5A Max
2.11V ~ 13V +- 3%/ 1.5A Max
3. 5V +- 3% / 1A Max
4. 48V / 0.6A PoE (PSE Port)

DC to DC for Battery

Output DC 14.4V +- 3%/ 3A Max

Output DC 14.4V +- 3%/ 3A Max
Output DC 14.4V +- 3%/ 2A Max

Output DC 14.4V +- 3%/ 3A Max
Output DC 14.4V +- 3%/ 2A Max
Output DC 14.4V +- 3%/ 2A Max

Output DC 14.4V +- 3%/ 3A Max
Output DC 14.4V +- 3%/ 2A Max
Output DC 14.4V +- 3%/ 2A Max
Output DC 14.4V +- 3%/ 2A Max

Transform Efficiency

85%~
(Option PFC Function)

85%~
(Option PFC Function)

85%~
(Option PFC Function)

85%~
(Option PFC Function)

Protection

On Line Working System Non Stop
Hot-swappable batteries
Independent Short circuit Protection*
Independent Battery Charging / Discharge Protection Feature*
Independent Device Operate Protection Feature*
Auto detect Battery Type decide Charging Mode*
Detect Battery Low Voltage Charging Protection*
Polarity Reversed Protection
Standby Consume Protection
Charging and Discharge Current limit Protection
Overcharge Protection
Over discharge Protection
Independent battery charging balance Protection
Over current Protection
Overload Protection

Support Battery Type
(Don’t use other battery
 type for outdoor)

C-LiFePO4 Battery

C-LiFePO4 Battery

C-LiFePO4 Battery

C-LiFePO4 Battery

Battery Capacity

11.6Ah @ 12.8V

11.6Ah @ 12.8V
11.6Ah @ 12.8V

11.6Ah @ 12.8V
11.6Ah @ 12.8V
11.6Ah @ 12.8V

11.6Ah @ 12.8V
11.6Ah @ 12.8V
11.6Ah @ 12.8V
11.6Ah @ 12.8V

Battery Charge Mode

CC/CV Special Design Charge*

CC/CV Special Design Charge *

CC/CV Special Design Charge*

CC/CV Special Design Charge*

Battery Charge Voltage

14.4V +- 3%

14.4V +- 3%

14.4V +- 3%

14.4V +- 3%

Battery Charge
Float Voltage

13.8V +- 3%

13.8V +- 3%

13.8V +- 3%

13.8V +- 3%

Battery Cut-off
Discharge Voltage

11.5V +- 3%

11.5V +- 3%

11.5V +- 3%

11.5V +- 3%

Detect Battery Low
Voltage Protection

11V +- 3%

11V +- 3%

11V +- 3%

11V +- 3%

Max Charge Current

3A Max for Battery 1

3A Max for Battery 1
2A Max for Battery 2

3A Max for Battery 1
2A Max for Battery 2
2A Max for Battery 3

3A Max for Battery 1
2A Max for Battery 2
2A Max for Battery 3
2A Max for Battery 4

Max Discharge Current

3A Max from Battery 1

3A Max from Battery 1
2A Max from  Battery 2

3A Max from Battery 1
2A Max from Battery 2
2A Max from Battery 3

3A Max from Battery 1
2A Max from Battery 2
2A Max from Battery 3
2A Max from Battery 4

Charging Time
@95% Capacity

Non discharge 8hrs
On line discharging 10hrs

Non discharge 9hrs
On line discharging 10hrs

Non discharge 9hrs
On line discharging 11hrs

Non discharge 9hrs
On line discharging 11hrs

Battery Cycle Life
(80% Capacity)
0.2C Charging
0.5C Discharge

@ 25°C 2000 Times
@ 45°C 1600 Times
@ 50°C 1200 Times
@ 60°C  550 Times
@ 60°C  720 Times 70% Capacity

@ 25°C 2000 Times
@ 45°C 1600 Times
@ 50°C 1200 Times
@ 60°C  550 Times
@ 60°C  720 Times 70% Capacity

@ 25°C 2000 Times
@ 45°C 1600 Times
@ 50°C 1200 Times
@ 60°C  550 Times
@ 60°C  720 Times 70% Capacity

@ 25°C 2000 Times
@ 45°C 1600 Times
@ 50°C 1200 Times
@ 60°C  550 Times
@ 60°C  720 Times 70% Capacity

Industrial Housing
& Connector

Aluminium Radiating Airtight Housing
Industrial IP67 M12 Connector

Aluminium Radiating Airtight Housing
Industrial IP67 M12 Connector

Aluminium Radiating Airtight Housing
Industrial IP67 M12 Connector

Aluminium Radiating Airtight Housing
Industrial IP67 M12 Connector

Connector Type

1.Input AC Power : 90~264V M12 Female – AC Plug
2.Input DC Power :15.5V M12 Female -- M12 Female
3.Output DC 12V : 12V M12 Male – DC Jack
4.Output DC 12V : 12V M12 Male – DC Jack
5.Output DC 5V : 5V M12 Male – DC Jack
6.Output 48V PoE RJ-45 Port (PSE) Waterproof IP 67 Connector
7.Input PoE RJ-45 Data Port Waterproof IP 67 Connector

Operating Temperature
(Discharge)

-20°C ~ 60°C
20~40°C Battery Capacity:100%
-10°C Battery Capacity : 60%
-20°C Battery Capacity : 48%

-20°C ~ 60°C
20~40°C Battery Capacity:100%
-10°C Battery Capacity : 60%
-20°C Battery Capacity : 48%

-20°C ~ 60°C
20~40°C Battery Capacity:100%
-10°C Battery Capacity : 60%
-20°C Battery Capacity : 48%

-20°C ~ 60°C
20~40°C Battery Capacity:100%
-10°C Battery Capacity : 60%
-20°C Battery Capacity : 48%

Charging Temperature

-30°C ~ 60°C

-30°C ~ 60°C

-30°C ~ 60°C

-30°C ~ 60°C

Storage Temperature

-20°C ~ 40°C

-20°C ~ 40°C

-20°C ~ 40°C

-20°C ~ 40°C

Rel. Humidity

10~95%RH

10~95%RH

10~95%RH

10~95%RH

Storage Time
(Before the Use,
please First Charge)

6 months
(Please every three months charge one time)

6 months
(Please every three months charge one time)

6 months
(Please every three months charge one time)

6 months
(Please every three months charge one time)

Dimension

260(H) x 214(W)x 370 (D)mm

260(H) x 214(W)x 370 (D)mm

260(H) x 214(W)x 370 (D)mm

260(H) x 214(W)x 370 (D)mm

Weight

4.5Kg

7Kg

9.5Kg

12Kg

LED Indicator

1.Input AC Power Indicator (Flash is Error)
2.Temp Indicator (Flash is Error)
3.12V Output 1 Indicator (Flash is Error)
4.12V Output 2 Indicator (Flash is Error)
5.5V Output Indicator (Flash is Error)
6.PoE PSE Output Indicator (Flash is Error)
7.Battery Indicator
-- Full Capacity 4 LEDs always Light
-- Battery Voltage Normal LED Slowly Flash
-- Battery Voltage Under 11V LED Quickly Flash
-- Error or Non connect Battery LED No Light
Battery Voltage ~9V：MCU non-working, All LED No Light
Battery Voltage 9V~10.5V：200mA Charging, LED Quickly Flash, Battery Capacity LED No Light.
Battery Voltage 10.5V~11V：Normal Charging, LED Quickly Flash, Battery Capacity LED No Light.
Battery Voltage 11V~14.4V：Normal Charging, LED Slowly Flash, Battery Capacity LED Start to Light from 1 until 3 LEDs.
Battery Voltage 14.4V~：Battery Capacity Full (more than 95%), 4 LEDs always Light

Housing

Weather-proof IP67

Weather-proof IP67

Weather-proof IP67

Weather-proof IP67

Approvals
(Processing)

．CE, UL, C-Tick

．CE, UL, C-Tick

．CE, UL, C-Tick

．CE, UL, C-Tick

Installation

1.Street lamps pole mount
2.Upright pole mount
3.Wall mount installation

1.Street lamps pole mount
2.Upright pole mount
3.Wall mount installation

1.Street lamps pole mount
2.Upright pole mount
3.Wall mount installation

1.Street lamps pole mount
2.Upright pole mount
3.Wall mount installation

Warranty

12 months

12 months

12 months

12 months

Product specifications change, without notice, consultation with agent or dealer before buying the latest specifications

　
