Single Crystalline Solar Modules

FEATURES:

1.     Single crystalline silicon photovoltaic module.

2.     High power module using 5” mono crystalline solar cell.

3.     Bypass diode is attached minimize power reduction caused by shade.

4.     36 solar cells and connection in series.

5.     Using optical low iron tempered glass, EVA resin, module with aluminum frame for outdoor use.

The module will maintain 90% of minimum specification performance along the first 12 years, and will maintain 80% of minimum specification performance along sequent 13 years.


Specification

Model

OSPSC-070164201

OSPSC-070164401

OSPSC-080174601

OSPSC-085174801

OSPSC-090175001

Maximum Power Rating (Pmax)

70W

75W

80W

85W

90W

Maximum Power Voltage (Vpm)

16.50V

16.85V

17.21V

17.55V

17.90V

Maximum Power Current (Ipm)

4.25A

4.46A

4.65A

4.85A

5.03A

Open Circuit Voltage (Voc)

21.24V

21.56V

21.81V

22.03V

22.35V

Short Circuit Current (Isc)

4.59A

4.79A

5.00A

5.17A

5.35A

Module Efficiency (ƞm)

10.8%

11.5%

12.3%

13.1%

13.8%

No & type solar cells

36 in series / 5” (125 * 125 mm) Single

Maximum system voltage

TUV : DC 1000 V / UL : DC 600V

Series fuse rating

15A

Performance tolerance

± 3%

Operating temperature

-40 to +90 °C

Storage temperature

-40 to +90 °C

Dimensions

1206 * 539 * 38.1 mm+-2 mm / 47.5” * 21.2” * 1.5” +-0.08”

Weight

8.2 Kg / 18.08 lbs

Output Terminal (Tyco J-Box)

1394462-4 (Male -) / 6-1394461-2 (Female +)

(STC) Standard Test Conditions: 25°C, 1 kW/m², AM 1.5



 Download : 70 ~ 90W Single Crystalline Solar Panel Data Sheet



Multi Crystalline Silicon Solar Modules

FEATURES:

1.   Multi crystalline silicon solar modules

2.   High power module using 6” multicrystalline solar cell.

3.   Bypass diode is attached minimize power reduction caused by shade.

4.   36 solar cells and connection in series.

5.   Using optical low iron tempered glass, EVA resin, module with aluminum frame for outdoor use.

6.   ±5400 Pa testing load, extended test to CNS13972 for wind and snow loads.

The module will maintain 90% of minimum specification Performance along the first 12 years, and will maintain 80% of minimum specification performance along sequent 13 years.

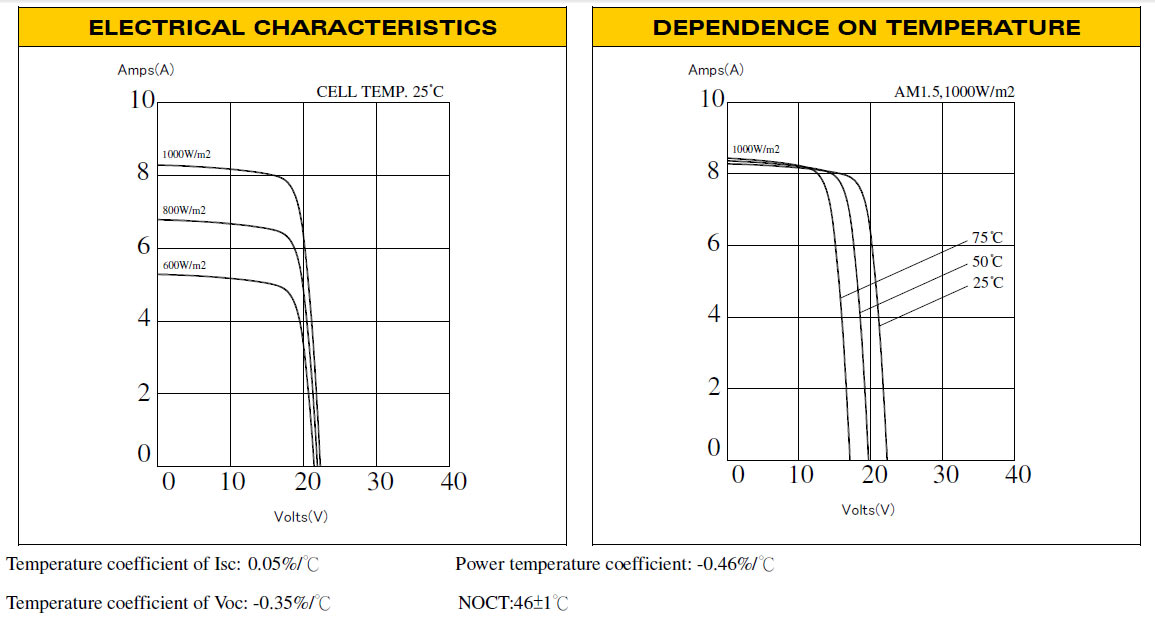

Specification

Model

OSPMC-110176401

OSPMC-115176701

OSPMC-120176901

OSPMC-125177101

OSPMC-130177301

OSPMC-135177501

OSPMC-140187701

Maximum Power Rating (Pmax)

110W

115W

120W

125W

130W

135W

140W

Maximum Power Voltage (Vpm)

17.05V

17.16V

17.34V

17.55V

17.75V

17.96V

18.16V

Maximum Power Current (Ipm)

6.46A

6.70A

6.93A

7.13A

7.33A

7.52A

7.71A

Open Circuit Voltage (Voc)

21.45V

21.56V

21.85V

21.89V

22.10V

22.14V

22.25V

Short Circuit Current (Isc)

7.21A

7.40A

7.77A

7.86A

8.06A

8.13A

8.27A

Module Efficiency (ƞm)

11.4%

11.9%

12.4%

12.9%

13.4%

14.0%

14.5%

No & type solar cells

36 in series / 6” (156 * 156 mm) Multicry

Maximum system voltage

TUV : DC 1000 V / UL : DC 600V

Series fuse rating

15A

Performance tolerance

± 3%

Operating temperature

-40 to +90 °C

Storage temperature

-40 to +90 °C

Dimensions

1466 * 660 * 38.1 mm+-2 mm / 57.7” * 26” * 1.5” +-0.08”

Weight

11.8 Kg / 26.01 lbs

Output Terminal (Tyco J-Box)

1394462-4 (Male -) / 6-1394461-2 (Female +)

(STC) Standard Test Conditions: 25°C, 1 kW/m², AM 1.5



  Download : 110 ~ 140W Multi Crystalline Solar Panel Data Sheet



Solar Collection Cloudy DC UPS Power System

Design Calculations

English

IO-Power Cloudy Weather Collection Model Solar Energy System Calculation Formula (C-LiFePO4 Lithium Batteries)


Chinese (Traditional)

下載: 勁電科技 陰雨天集能型 太陽能系統評估計算公式 (磷酸鐵鋰電池)








indoor UPS and outdoor UPS Power System

Comprehensive Comparison Tables

No.

Item

Indoor UPS

Outdoor UPS

Remark

1

Set up Type

Group

Distributed

Erection of emergency systems should spread risk

2

Size

Big

Small

In the same capacity, C-LiFePO4 Lithium Batteries size, less than the Lead-acid battery 35%

3

Weight

Heavy

Lift

In the same capacity, C-LiFePO4 Lithium Batteries weight, less than the Lead-acid battery 50%

4

Dusty & Waterproof

IP44 or Non

IP67



5

Power conversion efficiency

normal

better



6

Power supply mode

On-line/Interactive
/Off-line

On-line

Online devices operate without disruption

7

Battery type

Lead-acid batteries

C-LiFePO4 Lithium Batteries

Lead-acid battery cannot cell management charging & discharge

8

Battery cycle life

(for Indoor Used)

300~450 times,
Left 50-60% Power capacity

>2000 times

Outdoor UPS of C-LiFePO4 Lithium Batteries after 2000 times are still 80% power capacity

9

Service life

(for Indoor Used)

1.5 year

>7 year

Outdoor UPS of C-LiFePO4 Lithium Batteries for indoor used, will have more battery cycle life

10

Battery cycle life

(for Outdoor Used)

150~300 times, Left 50-60%Power capacity

>1100 times

Outdoor UPS of C-LiFePO4 Lithium Batteries after 1100 times are still 80% power capacity

11

Service life

(for Outdoor Used)

0.5~1 year
(need replace 6 times in 3 years)

>3 year

Outdoor UPS of C-LiFePO4 Lithium Batteries real outdoor tested 3 years still 95%~ power capacity

12

Operation of high and low temperature

-0~45 °C

-20~70 °C

Lead-acid temperature 50 °C operation easily damaged

13

RoHS

Does not meet the RoHS

accord with RoHS

2015 Lead Acid disabled

14

Charging time

8hrs

1.5hrs

@95% Capacity, C-LiFePO4 Lithium Batteries can fast charge

15

High rate discharge

not allowed

Reliable

Outdoor UPS of C-LiFePO4 Lithium Batteries can supply 5~8 times current discharge

16

Memory effect

yes

no



17

Security

Releasing toxic gas and explosion hazards

No explosion risk

Outdoor UPS of C-LiFePO4 Lithium Batteries @short circuit conditions, maximum temperature up to 120~130°C, at the same time have the security design of the pressure relief valve, so no explosion risk

18

Maintenance costs

higher

lowest

Lead-acid batteries for use in outdoor environments, will face 6 times in 3 years replacement cost ; While operation due to frequent battery replacement issues, resulting in low system properly rate

19

System cost

Cheap

Expensive

Lead-acid as 1 price< deep Lead-acid as 3 times< Gen Lithium as 4~5 times < C-LiFePO4 Lithium as 6~7 times

20

System application

Indoor

Indoor and Outdoor

Outdoor UPS for indoor use, will have more Battery cycle life

 Download : Indoor UPS and outdoor UPS Power System Comprehensive Comparison Tables files
