IO-Power DC UPS Power System Special Design Parts

-- DC Extend Connector / DC Extend Cable / Automobile Cigar Lighter Up Voltage & Stable Power Converter / Solar Panel

1.DC Extend Connector
1 to 1 10.5cm



1.Female to Female Connector
2.Φ5.5*2.1mm DC Jack
3.20AWG Cable
4.2C OD:3.0mm
5.10.5cm

2.DC Extend Connector
1 to 2 15cm




1. 1 Female to 2 Female Branch Connector
2.Φ5.5*2.1mm DC Jack
3.20AWG Cable
4.2C OD:3.0mm
5.15cm

3.DC Extend Cable
1 to 1 18.8cm




  1.Male to Male Connector
2.Φ5.5*2.1mm DC Plug
3.22AWG Cable
4.2C OD:3.0mm
5.18.8cm

4.DC Extend Cable
1 to 1 150cm






1.Male to Male Connector
2.Φ5.5*2.1mm DC Plug
3.22AWG Cable
4.2C OD:3.0mm
5.150cm

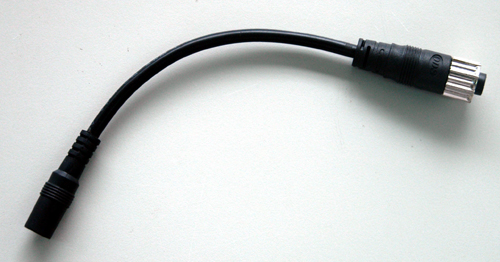

5.DC Exchange M12 Connector Cable 1.DC to M12 Exchange Connector
2.Φ5.5*2.1mm DC Jack Female to M12 Male Plug
3.20AWG Cable
4.2C OD:4.8mm
5.18.5cm

6.Solar Tyco /MC4 Patent Connector Exchange to M12 Female Plug Connector Cable 1.Tyco 1394462-4 (Female) & 1394461-2 (Male) Solar PV Connector
2.M12 Female Plug
3.20AWG Cable
4.3C OD:5.0mm
5.285cm

1.MC4
2.M12 Female Plug
3.20AWG Cable
4.3C OD:5.0mm
5.285cm


7.M12 Male  Exchange to DC Male   1.M12 Male Jack
2.Φ5.5*2.1mm DC Plug Male
3.22AWG Cable
4.2C OD:3.5mm
5.210cm

8.M12 Male   to DC Male
design for Solar APS

Suggest to support Max 2 Cameras.
Suggest to support Max 4 Cameras.
Suggest to support Max 6 Cameras.
Suggest to support Max 8 Cameras.
3.Automobile Cigar Lighter Up Voltage & Stable Power Converter



Automobile Cigar Lighter 12VDC/5A Up Voltage to 18VDC 3A for DC UPS Power System

Operating Temperature : -40°C ~ 70°C


4.Solar Panel

Single Crystalline Solar Modules : 70 ~ 90W

Download : 70 ~ 90W Single Crystalline Solar Panel Data Sheet

Multi Crystalline Silicon Solar Modules : 110 ~ 140W

Download : 110 ~ 140W Multi Crystalline Solar Panel Data Sheet


5.Outdoor DC to DC Power over Ethernet (PoE) Converter


6.Outdoor 12VDC to 24VAC Power Inverter


Special Design for Speed Dome 24VAC Power Solution


7.Outdoor Auto Power Selector


8.Outdoor Buck / Boost Voltage Convertor
