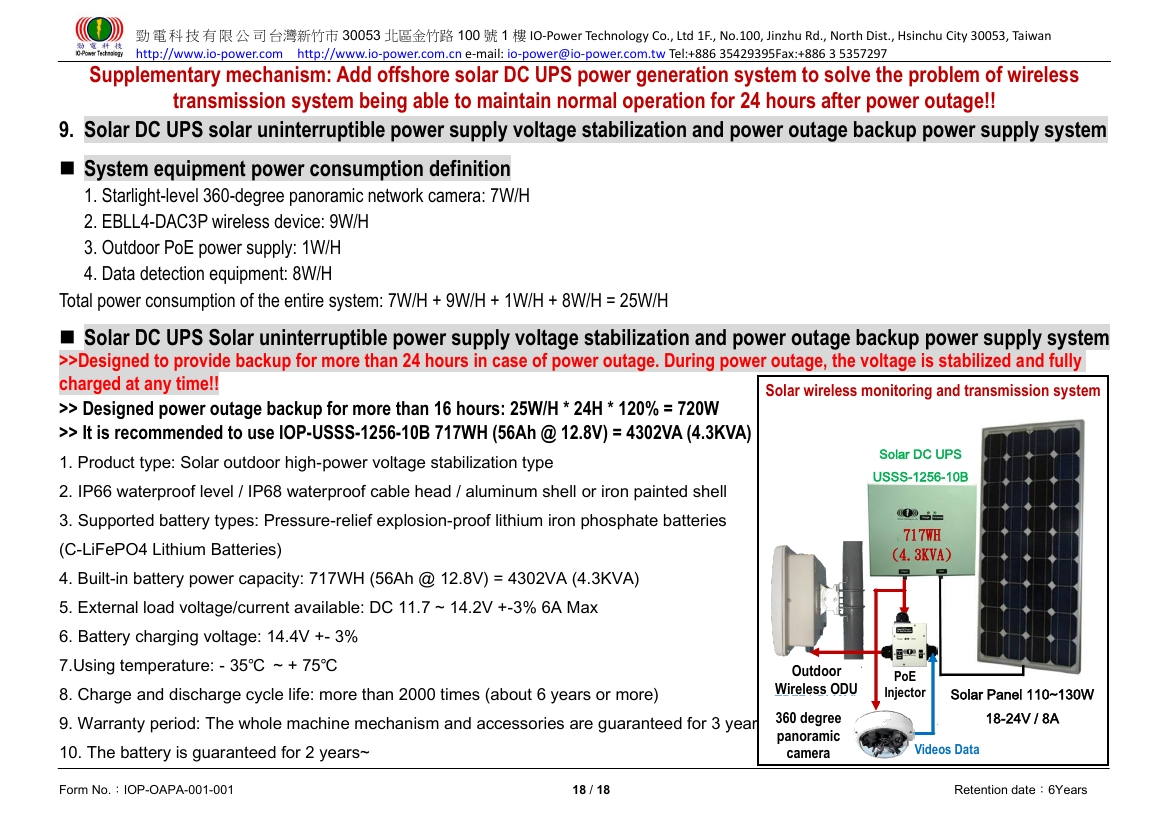

 Wireless Surveillance Solar Power System 05
Wireless Automobile Data Transmission Slution for Parking Lot (Mobile DVR/NVR)
Outdoor Streetlamp Model DC UPS Power System
 Streetlamp Model DC UPS Installation Instruction

Outdoor Mobile 3G4G_WiFi Wireless Surveillance with DC UPS Power System Design EV3
Design scheme of high altitude cable car WiFi MIMO hi-mobile wireless monitoring transmission system
Smart City -- "Smart Street Light Operation System"

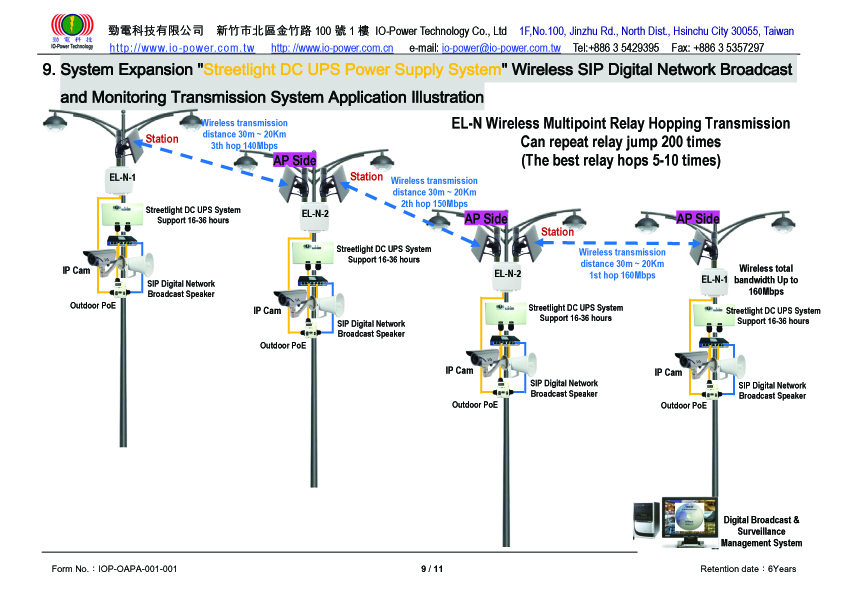

Street Light Power Supply And Wireless Transmission System and Network Management System Design
All [Achievement Cases] and [Project Design & Technical Data] reference links

3Km_20Km『Wireless Information Highway』transmission system

for 【offshore wind power】and【onshore wind power】power generation systems

Equipped with military-grade PTP Mesh Loops wireless multi-loop, multi-path, multi-redundancy,

and automatic repair connection mechanisms

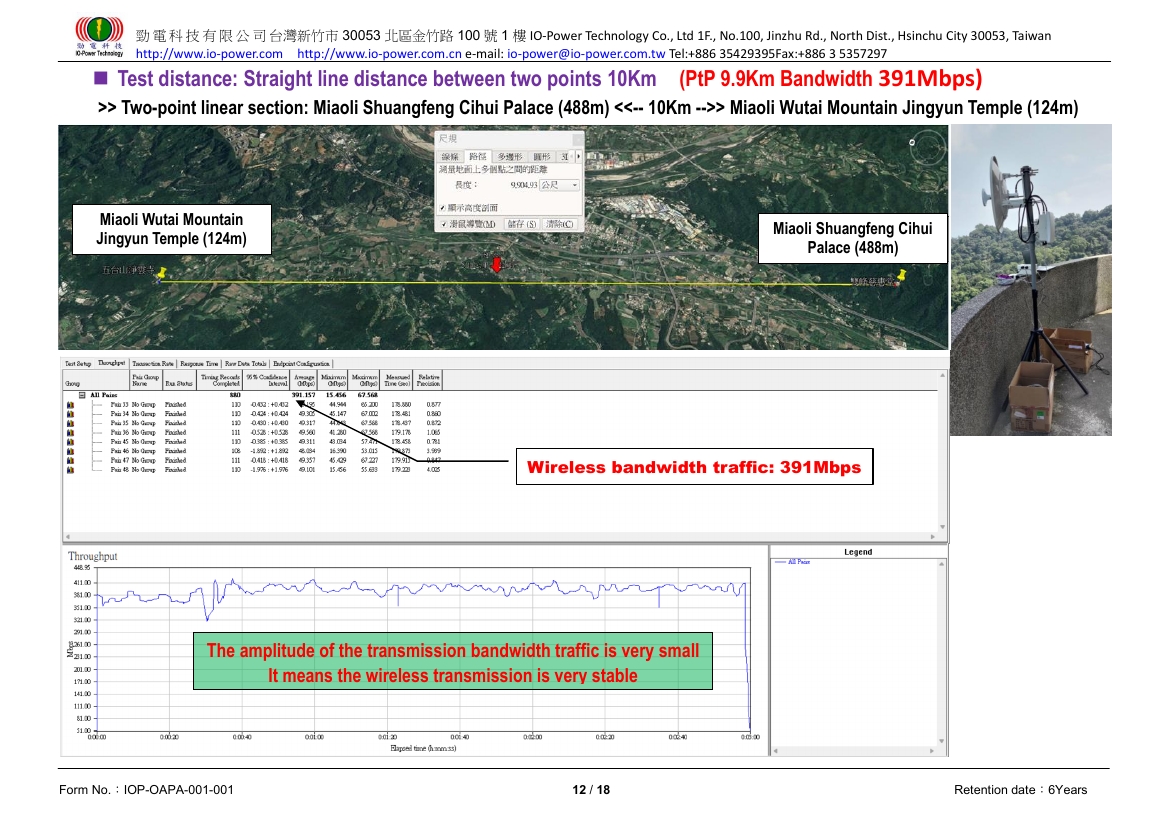

Download Case Study : 3Km_20Km『Wireless Information Highway』transmission system

Download Case Study : 3Km_20Km『Wireless Information Highway』transmission system


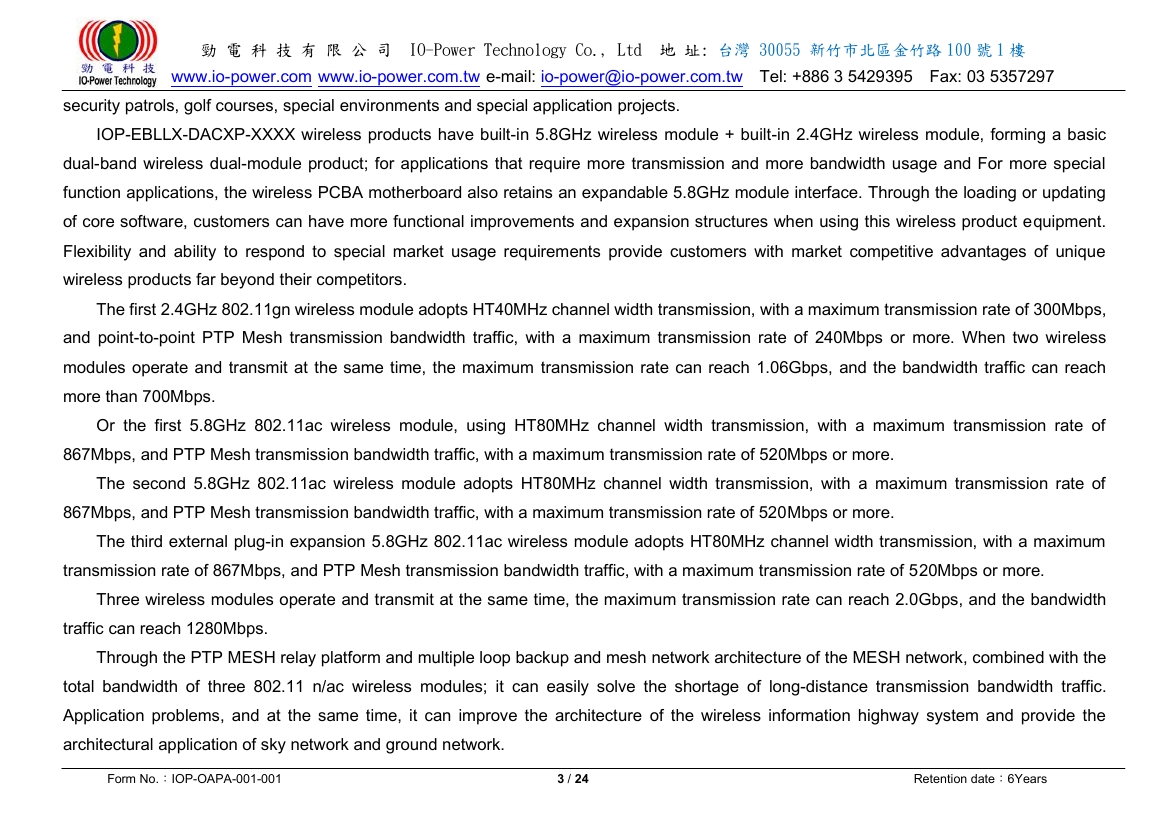

802.11AG/AGN/AC point-to-point continuous relay hop loop backup system
WiFi MIMO Long Distance / Large Bandwidth / Multi-function / Dual-mode, Dual-band, Dual backup
 WiFi 5 Mil-Spec Outdoor Wireless Access Point

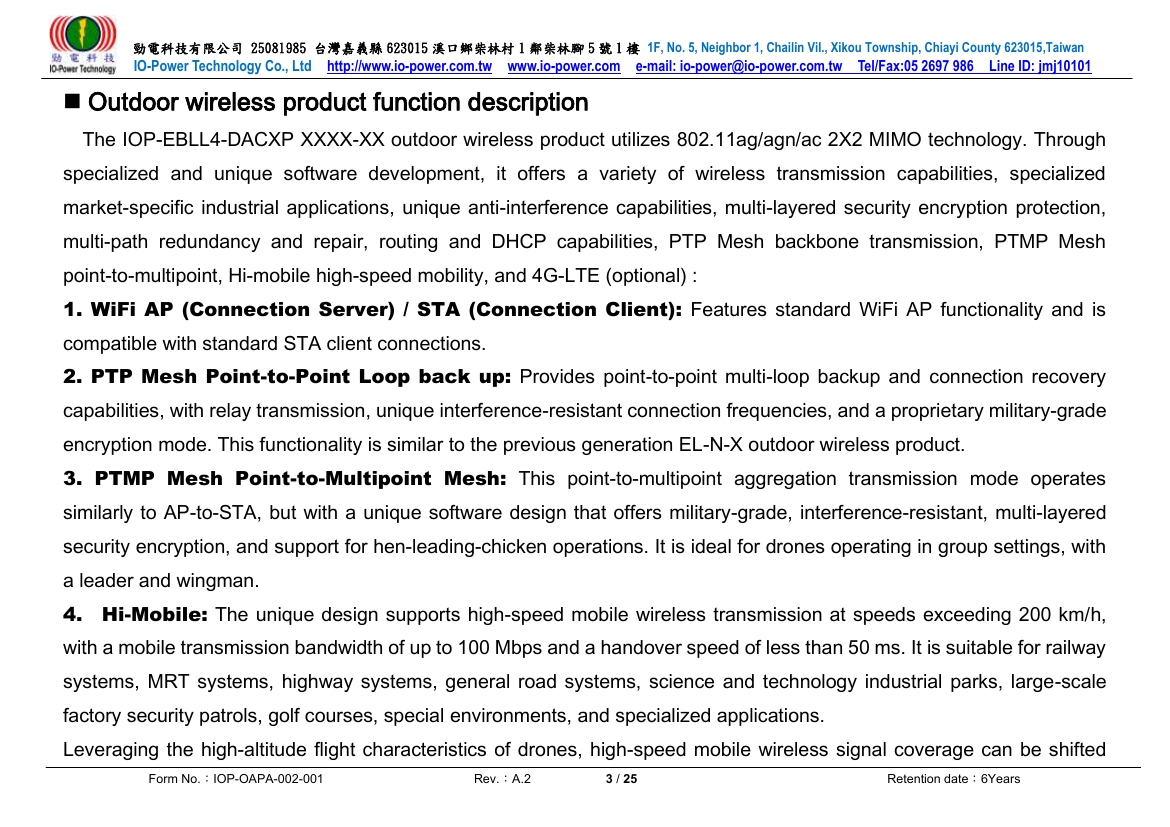

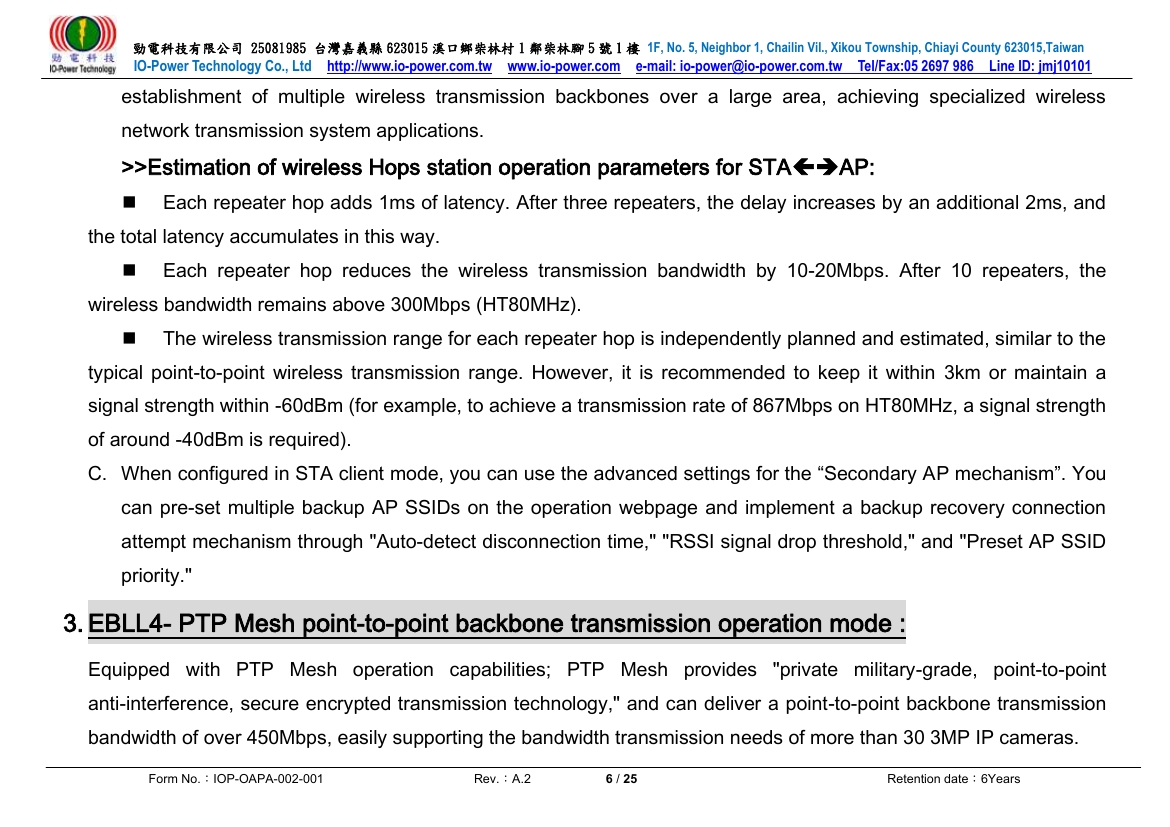

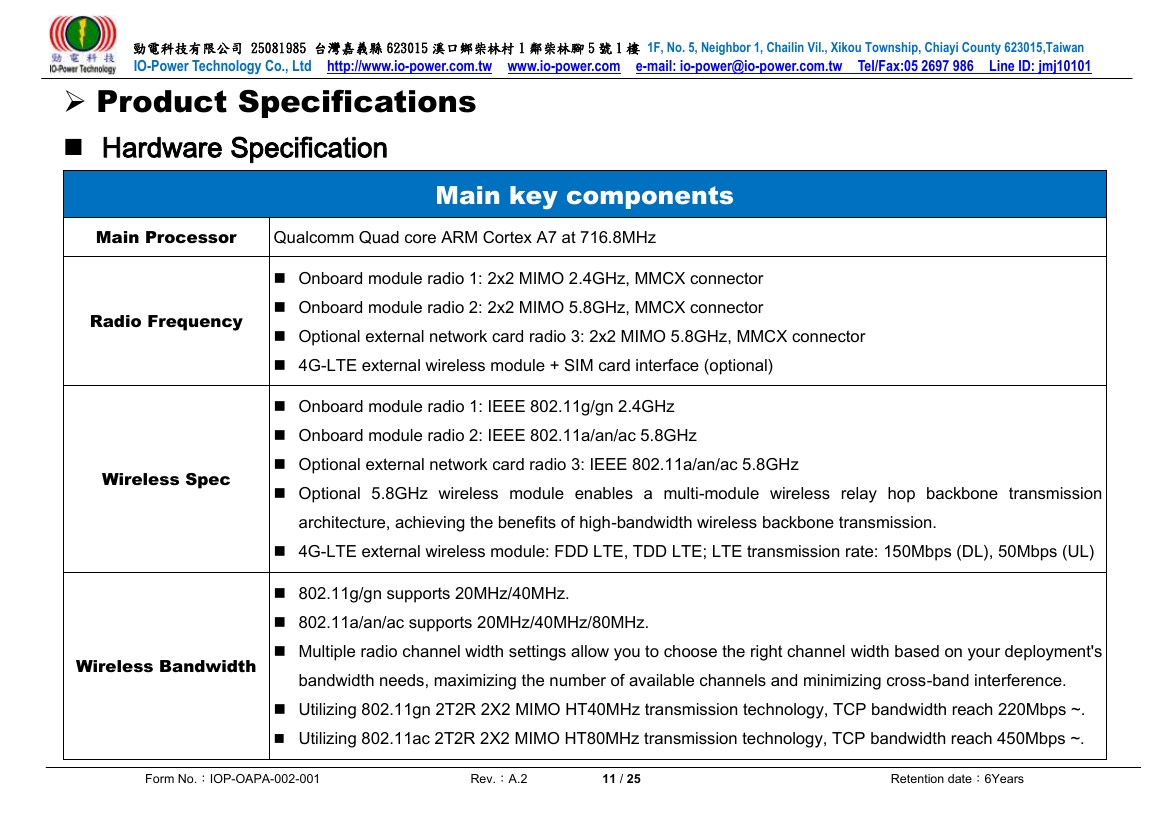

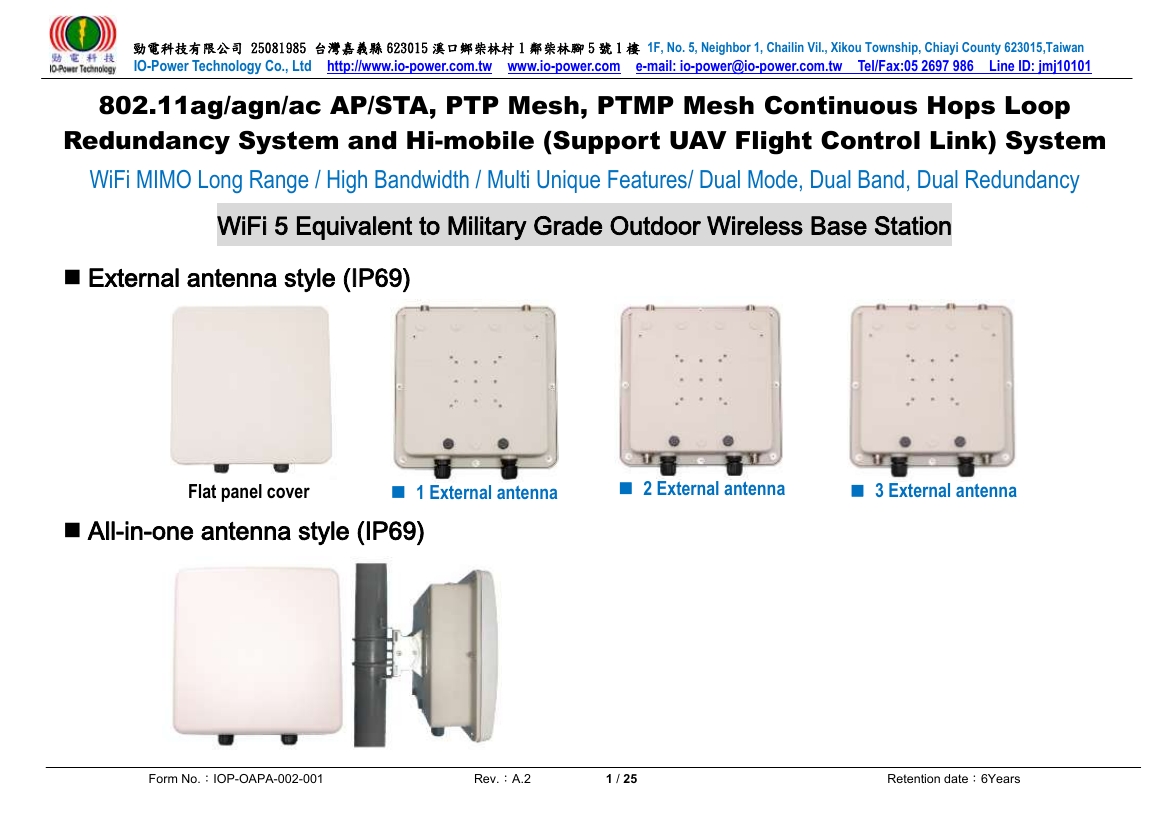

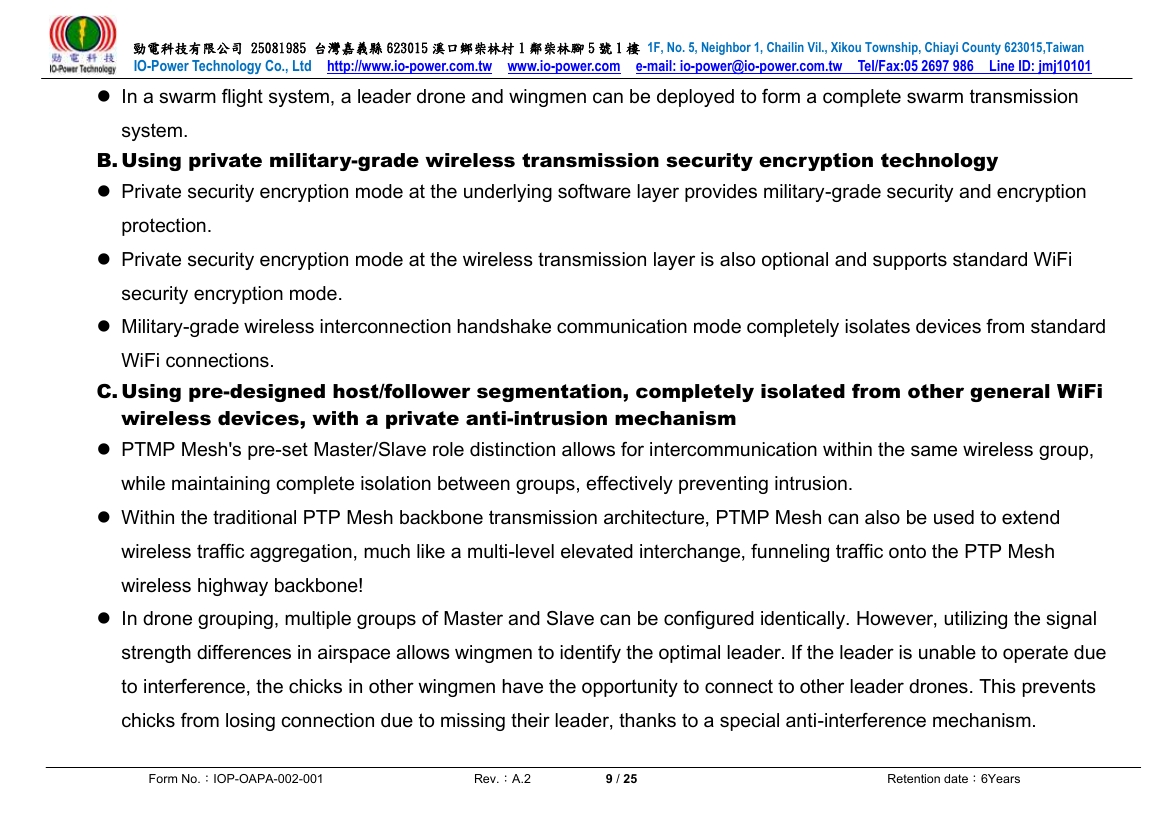

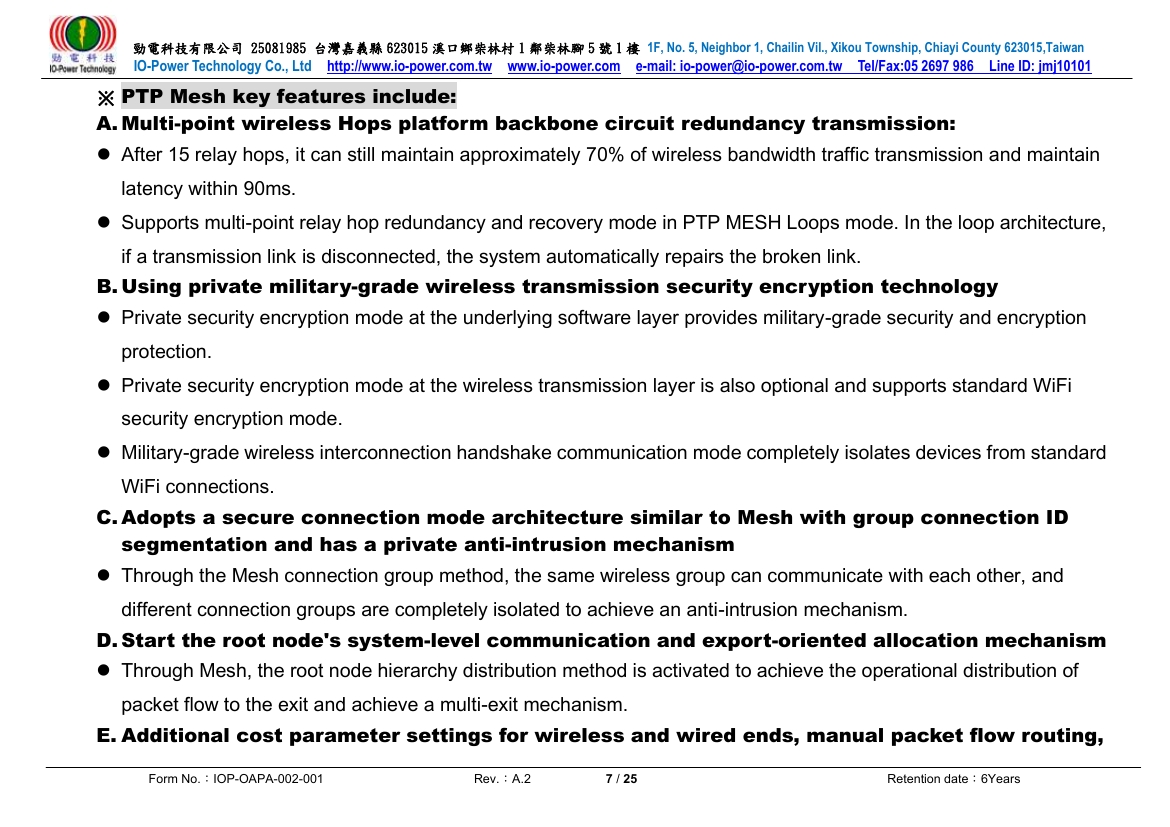

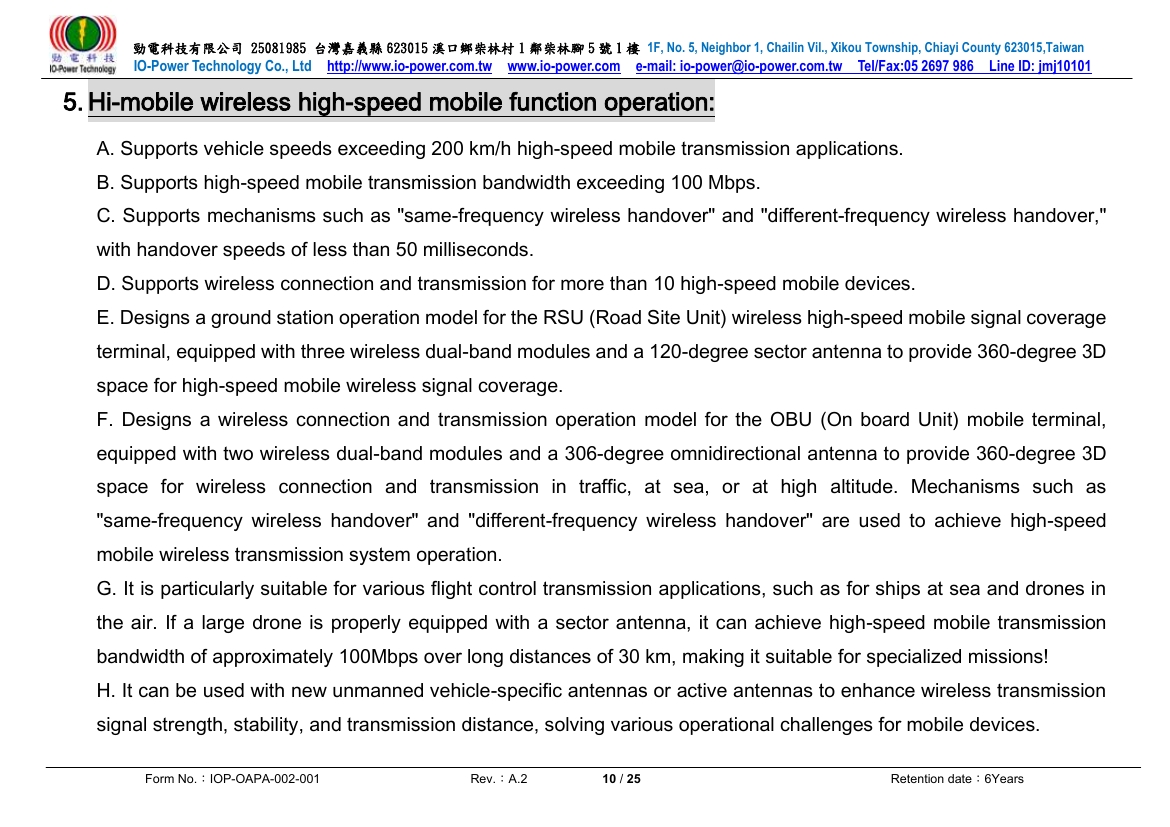

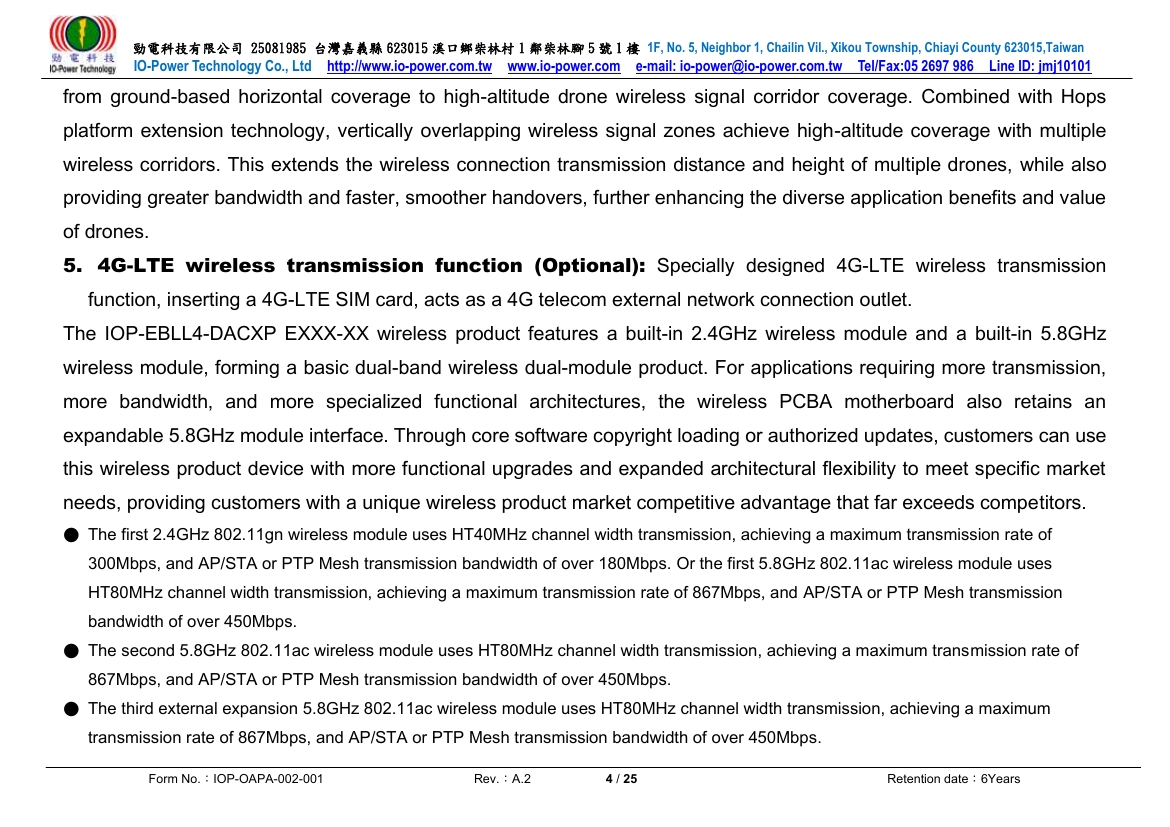

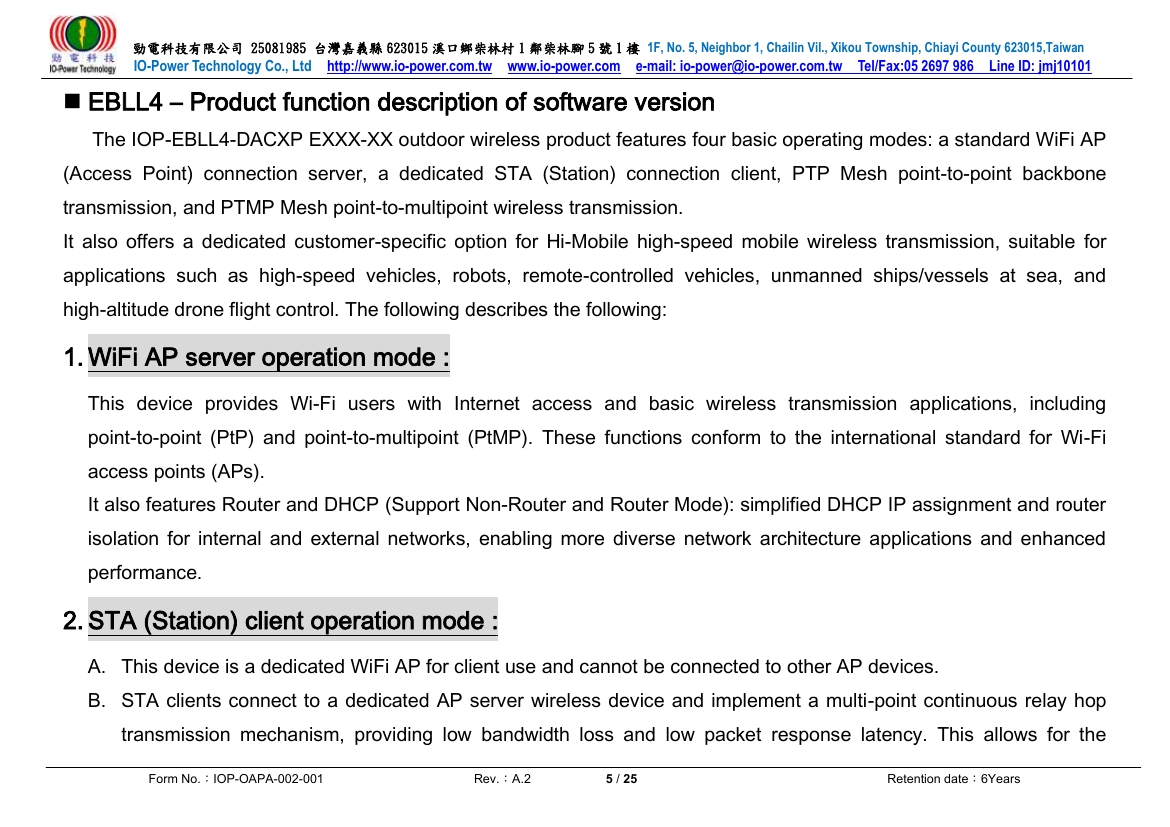

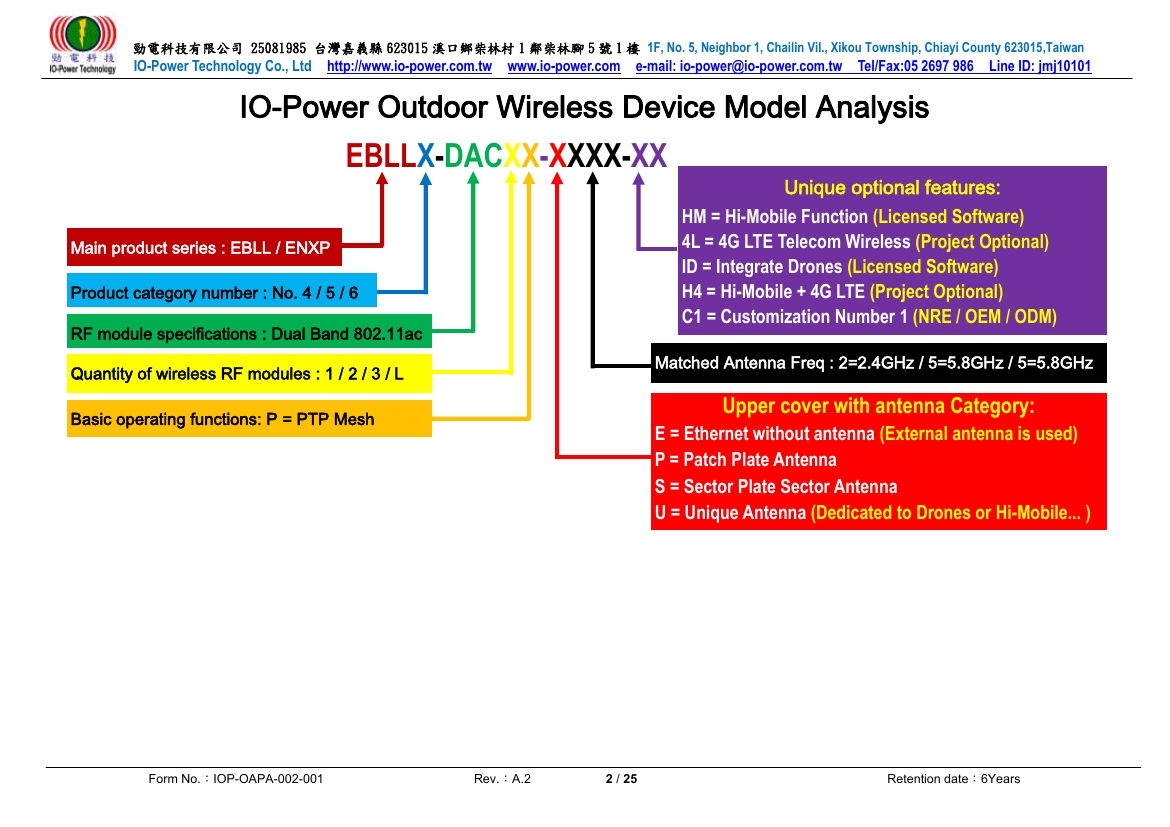

Download Data Sheet : WiFi 5 Mil-Spec Outdoor Wireless Access Point

Download QIG : IOP-EBLL4-DACXP 5 Steps Quick Installation Guide

　

Download Data Sheet : WiFi 5 Mil-Spec Outdoor Wireless Access Point

Download QIG : IOP-EBLL4-DACXP 5 Steps Quick Installation Guide

Roof rack special "stainless steel VESA international standard wind pressure resistance"  fixing bracket

Applicable to fixing "roof rack solar panels", "roof luggage", "various roof accessories"

　

Model: IOP-SCMK-VESA75-1

Roof rack special "stainless steel VESA international standard wind pressure resistance" single layer 75mm fixing bracket

　

n  Illustration of the main parts and accessories of the stainless steel fixing frame:

-- Single group single layer fixing frame: (height 75mm)

A. VESA international standard stainless steel mount * 1 Pcs.

B. M5 * 12mm stainless steel screws * 10 Pcs.

C. M5 nut with spacer * 3 Pcs.

(Lock the metal frame of the solar panel, if the hole position cannot be matched, please drill the corresponding hole in the frame)

D. Length 100mm * Width 65mm * Height 25mm Anti-collision foam * 2 Pcs.

E. Hot-melt waterproof tape for outdoor use * 1 Pcs

(It can be cut into 2-4 sections, and the positive and negative poles of the solar panel are connected for waterproof protection; The hot-melt tape can be stretched and extended 2-6 times in length for multiple layers of interactive coverage, and finally melts into one layer. )

####

-- Product use has characteristics:

-- Robust and safe: Don't worry about driving on the highway anymore!!

-- Elastic inclination: solar panels can be erected at an inclination and the reverse flow effect of high-speed driving!!

-- Suspension shock absorption: no longer need to worry about solar panel collision damage

-- Easy to assemble and disassemble: remove 4 screws to remove, lock 4 screws to assemble and fix

-- Height selection: In response to the height limit requirements of the underground parking lot, you can choose a single-layer or double-layer fixing frame, or double-layer height, which can be reduced to a single-layer height at any time

####

-- Stainless steel fixing frame, use mode:

1. Single group single layer fixing frame (height 75mm):

A. Group 1: Simply attach camping items or waterproof bags...etc.

B. Group 2: Small storage boxes, bicycles, etc. can be erected.

C. Group 3: Can set up SUP/surfboard, large storage box...etc.

D. Group 4: Solar panels/canoes, bicycles, etc. can be erected.

####

-- Stainless steel fixing frame, price model: FOB Taiwan, freight is excluded.

(Camping friends recommends commercialization, to solve the problem of not being able to buy it!!)

-- Single group single layer fixing frame (height 75mm):

A. Group 1: 23 USD

B. Group 2: 40 USD

C. Group 3: 57 USD

D. Group 4: 74 USD

####

-- Optional additional price purchase:

A. 2 U-shaped M6 screws (including 4 M6 nuts with washers): 5 USD.

B. 4 pieces of anti-collision foam with a thickness of 2.5mm: 3 USD.

C. 1 piece of hot-melt waterproof tape for outdoor use: 2 USD.

D. 5 pieces of M5 * 12mm stainless steel screws: 2 USD.

E. 5 pieces of M5 * 20mm stainless steel screws: 2 USD.

F. 10 pieces of M5 nuts with spacers: 1USD

G. 12 pieces of M5 elastic spacers: 1USD

 ####

Roof rack special "stainless steel VESA international standard wind pressure resistance"  fixing bracket

Applicable to fixing "roof rack solar panels", "roof luggage", "various roof accessories"

　

Model: IOP-SCMK-VESA75-2

Roof rack special "stainless steel VESA international standard wind pressure resistance" double layer 150mm fixing bracket

　

n  Illustration of the main parts and accessories of the stainless steel fixing frame:

-- Double-deck stacking bracket: (height 150mm)

A. VESA international standard stainless steel mount * 2 Pcs.

B. M5 * 12mm stainless steel screws * 20 Pcs.

C. M5 nut with spacer * 7 Pcs.

(Lock the metal frame of the solar panel, if the hole position cannot be matched, please drill the corresponding hole in the frame)

D. Length 100mm * Width 65mm * Height 25mm Anti-collision foam * 2 Pcs.

E. Hot-melt waterproof tape for outdoor use * 1 Pcs

(It can be cut into 2-4 sections, and the positive and negative poles of the solar panel are connected for waterproof protection; The hot-melt tape can be stretched and extended 2-6 times in length for multiple layers of interactive coverage, and finally melts into one layer. )

####

-- Product use has characteristics:

-- Robust and safe: Don't worry about driving on the highway anymore!!

-- Elastic inclination: solar panels can be erected at an inclination and the reverse flow effect of high-speed driving!!

-- Suspension shock absorption: no longer need to worry about solar panel collision damage

-- Easy to assemble and disassemble: remove 4 screws to remove, lock 4 screws to assemble and fix

-- Height selection: In response to the height limit requirements of the underground parking lot, you can choose a single-layer or double-layer fixing frame, or double-layer height, which can be reduced to a single-layer height at any time

####

-- Stainless steel fixing frame, use mode:

1. Double-deck stacking bracket (height 150mm):

A. Group 1: Simply attach camping items or waterproof bags...etc.

B. Group 2: Small storage boxes, bicycles, etc. can be erected.

C. Group 3: Can set up SUP/surfboard, large storage box...etc.

D. Group 4: Solar panels/canoes, bicycles, etc. can be erected.

####

-- Stainless steel fixing frame, price model: FOB Taiwan, freight is excluded.

(Camping friends recommends commercialization, to solve the problem of not being able to buy it!!)

-- Two sets of double-layer stacking brackets (height 150mm):

A. Group 1: 40 USD

B. Group 2: 74 USD

C. Group 3: 107 USD

D. Group 4: 140 USD

####

-- Optional additional price purchase:

A. 2 U-shaped M6 screws (including 4 M6 nuts with washers): 5 USD.

B. 4 pieces of anti-collision foam with a thickness of 2.5mm: 3 USD.

C. 1 piece of hot-melt waterproof tape for outdoor use: 2 USD.

D. 5 pieces of M5 * 12mm stainless steel screws: 2 USD.

E. 5 pieces of M5 * 20mm stainless steel screws: 2 USD.

F. 10 pieces of M5 nuts with spacers: 1USD

G. 12 pieces of M5 elastic spacers: 1USD

####



Roof rack special "stainless steel VESA international standard wind pressure resistance fixing bracket

Design of Hi-mobile wireless surveillance and transmission system for port cranes, container yards and storage areas

--Port container crane / plant area mobile crane / warehouse transmission system / forklift mobile transmission/chemical plant mobile industrial safety monitoring / AI / ID 4.0 / IoT... and other applications

Download Files

New Products Announce  !!

<<Customized solar 4G-LTE wireless mobile monitoring system>>

Please prepare the following information before consulting the system integration requirements design for customization:
1. Please provide "power consumption data of various equipment in the system"
(or matching transformer specifications)


2. Please provide the "data on the estimated installation location of the system"
(or data on the number of sunshine hours in the area)


3. Please estimate "the number of operating hours the system must cope with continuous cloudy and rainy days"
(or a response plan for cloudy and rainy days)


4. Please estimate "after the solar system is operating, if it is found that the pre-assessment plan is exceeded, is there a backup plan?"


5. Please evaluate "whether there are more energy-saving system equipment available"
(energy-saving equipment can save 30-60% of power consumption and cost)

Mobile solar 4G-LTE wireless cloud video surveillance system_12Ah_ EV1

Mobile solar 4G-LTE wireless cloud video surveillance system_12Ah_ EV1

New Products Announce  !!

IOP-SANFO-5M1506010

4.9~6.1GHz 14-15dBi Dual Polarization MIMO Sector Antenna

Welcome to consult OEM / ODM custom business cooperation!!



　

New Products Announce  !!

MBAP-RF1-SANFO-5M1506010

4.9~6.1GHz 14-15dBi Dual Polarization MIMO Sector Antenna

Assembled in Aluminum Die-cast IP69 Waterproof Case
(without Wireless Motherboard)

Welcome to consult OEM / ODM custom business cooperation!!



New Products Announce  !!

IOP-SANFO-2M1207525

2.4GHz 12dBi Dual Polarization MIMO Sector Antenna

Welcome to consult OEM / ODM custom business cooperation!!



New Products Announce  !!

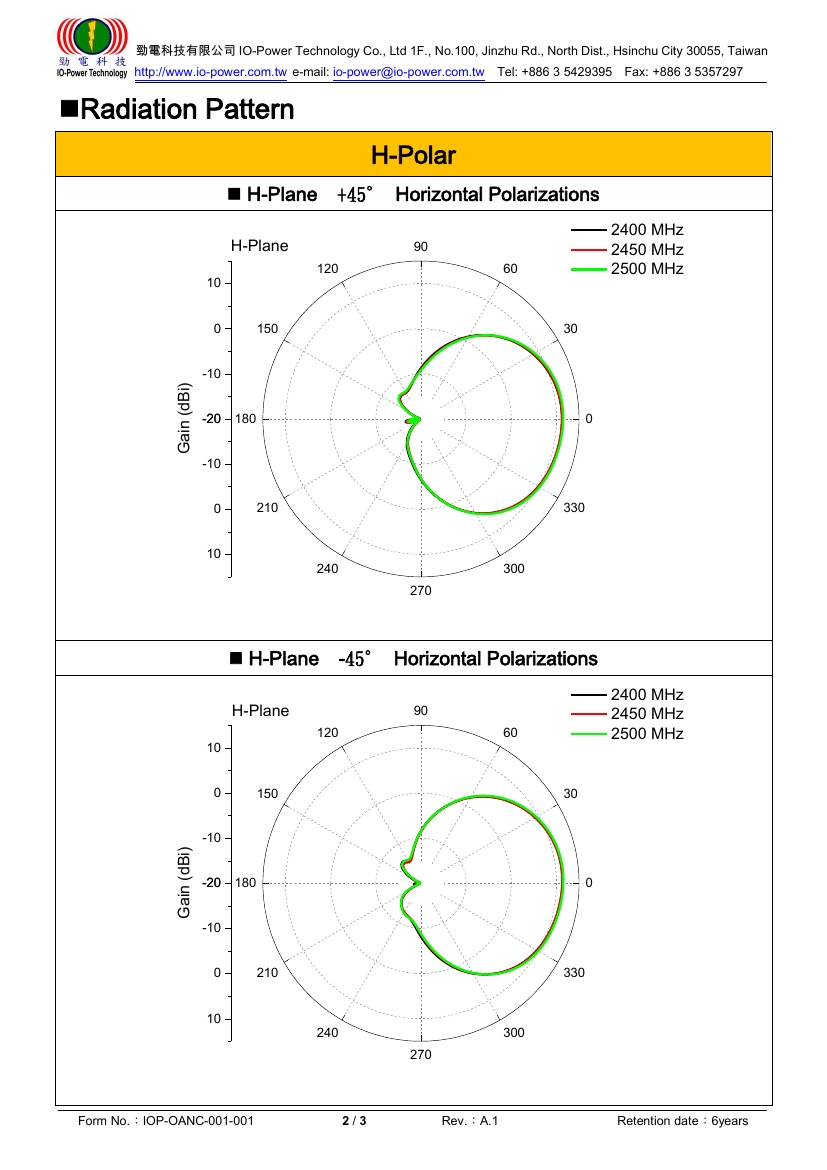

MBAP-RF1-SANFO-2M1207525

2.4GHz 12dBi Dual Polarization MIMO Sector Antenna

Assembled in Aluminum Die-cast IP69 Waterproof Case
(without Wireless Motherboard)

Welcome to consult OEM / ODM custom business cooperation!!



　

Waterproof, Dustproof, Corrosion-resistant, Wind-resistant, Anti-interference Aluminum Alloy Die-cast Case

IP69 High Temperature and High Pressure Dustproof and Waterproof Test Verification Report_202010

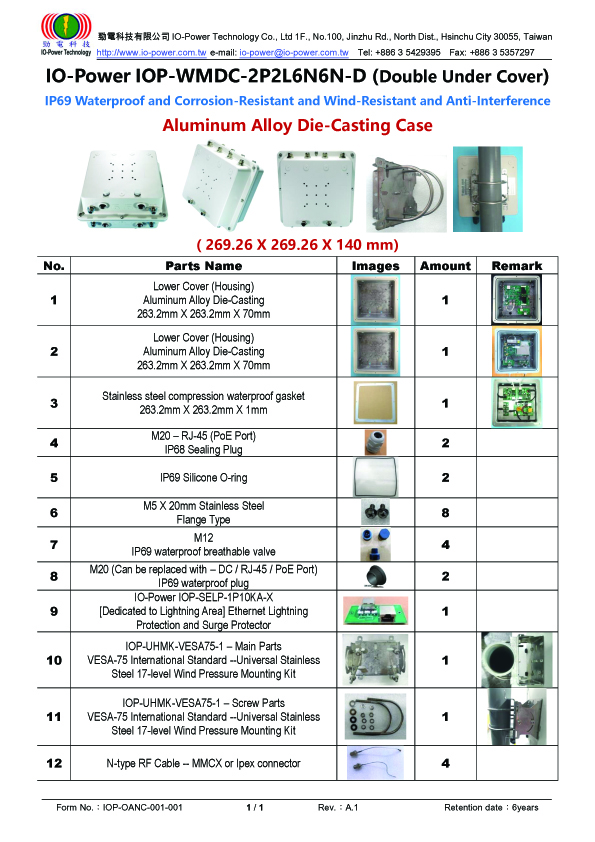

IOP-WMDC-1P1L6N0N-F ( Flat Cover )

IOP-WMDC-1P1L6N4N-T ( Toppan Cover  )

IOP-WMDC-2P2L6N6N-D ( Double Under Cover)

MBAP-RF1-PANFO-5M2001213 (Top Cover 5GHz Antenna All-in-one Machine)

The following is the IP69 (IP69K) related IPX9 test video link of the network:

1. https://www.youtube.com/watch?v=3tncb7xNFR8

2. https://www.youtube.com/watch?v=CKjywN3EXP4

3. https://www.youtube.com/watch?v=eua0bHuBjRE

4. https://www.youtube.com/watch?v=eCjQFMk1hwc

5. https://www.youtube.com/watch?v=fvBv99xsBK0

Welcome to inquire about OEM/ODM customized business cooperation!!

　

IO-Power IOP-WMDC-1P1L6N0N-F (Flat Cover)

IP69 Waterproof and Corrosion-Resistant and Wind-Resistant and Anti-Interference

Aluminum Alloy Die-Casting Case

　

IO-Power IOP-WMDC-1P1L6N4N-T (Toppan Cover)

IP69 Waterproof and Corrosion-Resistant and Wind-Resistant and Anti-Interference

Aluminum Alloy Die-Casting Case

　

IO-Power IOP-WMDC-2P2L6N6N-D (Double Under Cover)

IP69 Waterproof and Corrosion-Resistant and Wind-Resistant and Anti-Interference

Aluminum Alloy Die-Casting Case

　

MBAP-RF1-PANFO-5M2001213

5GHz 18-20dBi Dual Polarization MIMO Panel Antenna

Assembled above the case (without Wireless Motherboard)

Welcome to inquire about OEM/ODM customized business cooperation!!

Outdoor Wireless SIP Digital Network Broadcast Transmission System

--WiFi Wireless Information Highway Application—

"Recording Monitoring System" + "Digital Broadcasting System" + "AI, IoT, Industry 4.0" …and so on

Outdoor Wireless SIP Digital Network Broadcast Transmission System

Welcome to consult OEM / ODM custom business cooperation!!

IOP-DAPI-12243A-2 IOP-DAPI-24243A-2
Input 12Vdc to Output 24VAC Input 24Vdc to Output 24VAC
Input Current 6A~ Above Input Current 3A~ Above
Output 12VAC/2.5A--60W/100W Max Output 24VAC/2.5A--60W/100W Max
Specially designed for Speed Dome 24VAC AC power supply
Data Sheet  Data Sheet

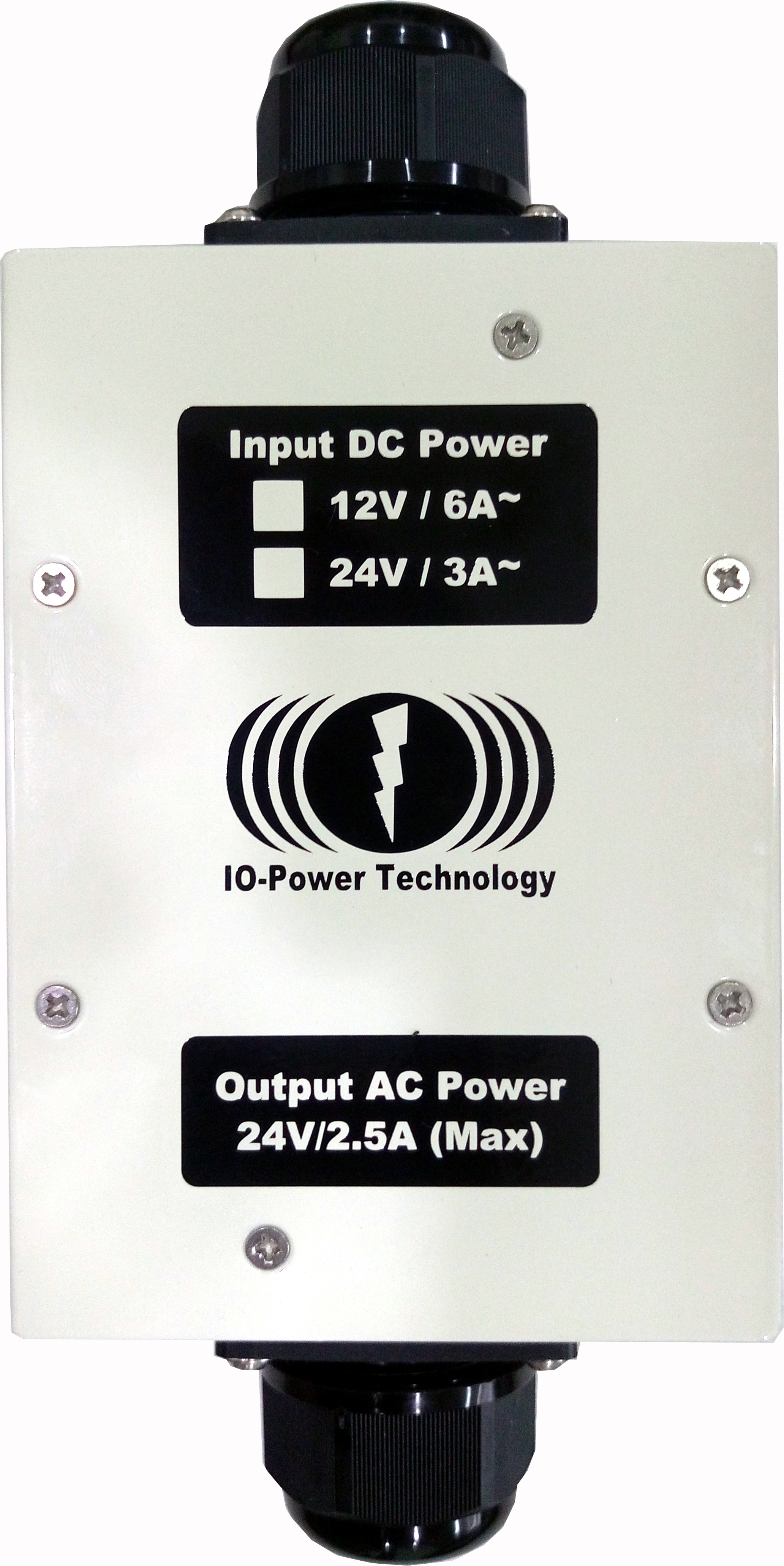

IO-Power IOP-DAPI-12243A-2

Outdoor 12VDC to 24VAC Power Inverter

Special Design for Speed Dome 24VAC Power Solution



IO-Power IOP-DAPI-12243A-2 is a specially designed outdoor DC to AC Inverter for 24VAC Speed Dome, adopting 12VDC input power, which is different from the usual adapter — input power 100~240VAC, output power 24VAC. It helps the system integrate (SI) easily collocate with 12VDC power source from the Outdoor DC UPS power system and 12VDC power source from the adapter (over 6A). It decreases the power transmission loss from DC to AC, then anther power transmission loss from 110VAC~240VAC to 24VAC (about 15%~30% loss of electricity). Therefore, IOP-DAPI-12243A-2 is especially suitable for green energy power system, such as solar power system and winder power system. The electricity loss it saves makes 30% of cost benefit for the whole power system.

DC to AC Inverter is adopted industrial level of Iron metal thermal protection shell and waterproof dust reached IP67 of mechanism design and the Waterproof and heat-resistant beam head to handle the outside tough temperature at -30°C ~ +70°C to maintain the outdoor system normally working during day and night.

IO-Power IOP-DAPI-12243A-2 adopts 12VDC input power of high current. The output of the conversion output is 60W and the peak power supply 100W maximum, enough for the normal Speed Dome which consumes 10~18W/H, and for the long-distance infrared rays Speed Dome, which consumes 18~35W/H. The 24VAC voltage and 2.5A current (and peak power supply 4A Max) can manage the transient current of Speed Dome which reaches 2~3A to reach the requirements of the Inverter of “Special Design for Speed Dome Power Solution”.

Adopting 12VDC input power can collocate with not only 12VDC power source from Outdoor DC UPS power systems, but also 12VDC power source from normal adapters (over 6A). Therefore, the applications are for 24VAC outdoor surveillance system, 24VAC outdoor emergency rescuing system, 24VAC mobile power supply system, 24VAC outdoor surveillance recording system, 24VAC outdoor public sign and indication system, 24VAC outdoor financial security system, 24VAC elevator security monitoring system, 24VAC fire security system, 24VAC expressway charges trading surveillance system, etc.

IOP-DAPI-12243A-2 Specification

Model Number

IOP-DAPI-12243A-2

Outdoor 12VDC to 24VAC

Iron Airtight Housing

IP 67



Input DC Voltage

12VDC (10VDC~15VDC Max)

**Before using, please confirm that the upper cover is marked with input 12Vdc / 6A~ or 24VDC / 3A~ voltage mode, please follow the instructions input voltage power supply.

Input DC Current

12VDC 6A~ (Recommended for 8A above will be better)

Output AC Voltage

24VAC (22VAC~28.5VAC Max)

Output AC Current

2.5A and peak power supply 4A Max

Output Power Frequency

47-50 Hz

Output Power Consume Watts

Operating power 60W and peak power supply 100W Max

Input Connector

DC Female Jack Pin OD: 2.1mm

Output Connector

DC Female Jack Pin OD: 2.1mm

Transform Efficiency

85%~

Protection

Input power overcurrent protection

Low input voltage protection

High input voltage protection

Output power overcurrent protection

Short circuit protection

Imported power polarity protection for anti-welding

Power surge 5KVA protection

Industrial Housing & Connector

Iron Airtight Housing

IP 67 Gland Connector

** Top cover marked 12VDC / 6A ~ and 24VDC / 3A ~ of the shipping product input voltage mark distinction

Connector Type

Input DC Power: 10~15VDC 6A~ , DC Female Jack Pin OD: 2.1mm

Output AC Power: 22VAC~28.5VAC 2.5A and peak power supply 4A Max, DC Female Jack Pin OD: 2.1mm

Operating Temperature

-30°C ~ +70°C

Storage Temperature

-40°C ~ 80°C

Rel. Humidity

0~95%RH

Dimension

210mm(L) x 92mm(W) x 50mm(H)

Weight

0.5Kg

Housing

IP67

Approvals

CE FCC Processing

Installation

1.Street lamp pole mount or Upright pole mount
2.Wall mount installation

Warranty

12 months

Remark 1: Product specifications change, without notice, consultation with agent or dealer before buying the latest specifications

Remark 2: Before using, please confirm that the upper cover is marked with input 12Vdc / 6A ~ or 24VDC / 3A ~ voltage mode, please follow the instructions input voltage power supply.

IO-Power IOP-DAPI-24243A-2

Outdoor 24VDC to 24VAC Power Inverter

Special Design for Speed Dome 24VAC Power Solution



IO-Power IOP-DAPI-24243A-2 is a specially designed outdoor DC to AC Inverter for 24VAC Speed Dome, adopting 24VDC input power, which is different from the usual adapter — input power 100~240VAC, output power 24VAC. It helps the system integrate (SI) easily collocate with 24VDC power source from the Outdoor DC UPS power system and 24VDC power source from the adapter (over 5A). It decreases the power transmission loss from DC to AC, then anther power transmission loss from 110VAC~240VAC to 24VAC (about 15%~30% loss of electricity). Therefore, IOP-DAPI-24243A-2 is especially suitable for green energy power system, such as solar power system and winder power system. The electricity loss it saves makes 30% of cost benefit for the whole power system.

DC to AC Inverter is adopted industrial level of Iron metal thermal protection shell and waterproof dust reached IP67 of mechanism design and the Waterproof and heat-resistant beam head to handle the outside tough temperature at -30°C ~ +70°C to maintain the outdoor system normally working during day and night.

IO-Power IOP-DAPI-24243A-2 adopts 24VDC input power of high current. The output of the conversion output is 60W and the peak power supply 100W maximum, enough for the normal Speed Dome which consumes 10~18W/H, and for the long-distance infrared rays Speed Dome, which consumes 18~35W/H. The 24VAC voltage and 2.5A current (and peak power supply 4A Max) can manage the transient current of Speed Dome which reaches 2~3A to reach the requirements of the Inverter of “Special Design for Speed Dome Power Solution”.

Adopting 24VDC input power can collocate with not only 24VDC power source from Outdoor DC UPS power systems, but also 24VDC power source from normal adapters (over 5A). Therefore, the applications are for 24VAC outdoor surveillance system, 24VAC outdoor emergency rescuing system, 24VAC mobile power supply system, 24VAC outdoor surveillance recording system, 24VAC outdoor public sign and indication system, 24VAC outdoor financial security system, 24VAC elevator security monitoring system, 24VAC fire security system, 24VAC expressway charges trading surveillance system, etc.

IOP-DAPI-24243A-2 Specification

Model Number

IOP-DAPI-24243A-2

Outdoor 24VDC to 24VAC

Iron Airtight Housing

IP 67



Input DC Voltage

24VDC (20VDC~26VDC Max)

**Before using, please confirm that the upper cover is marked with input 12Vdc / 6A~ or 24Vdc / 3A~ voltage mode, please follow the instructions input voltage power supply.

Input DC Current

24VDC 3A~ (Recommended for 5A above will be better)

Output AC Voltage

24VAC (22VAC~28.5VAC Max)

Output AC Current

2.5A and peak power supply 4A Max

Output Power Frequency

47-50 Hz

Output Power Consume Watts

Operating power 60W and peak power supply 100W Max

Input Connector

DC Female Jack Pin OD: 2.1mm

Output Connector

DC Female Jack Pin OD: 2.1mm

Transform Efficiency

85%~

Protection

Input power overcurrent protection

Low input voltage protection

High input voltage protection

Output power overcurrent protection

Short circuit protection

Imported power polarity protection for anti-welding

Power surge 5KVA protection

Industrial Housing & Connector

Iron Airtight Housing

IP 67 Gland Connector

** Top cover marked 12VDC / 6A ~ and 24VDC / 3A ~ of the shipping product input voltage mark distinction

Connector Type

Input DC Power: 20~26VDC 3A~ (Recommended for 5A above will be better), DC Female Jack Pin OD: 2.1mm

Output AC Power: 22VAC~28.5VAC 2.5A and peak power supply 4A Max, DC Female Jack Pin OD: 2.1mm

Operating Temperature

-30°C ~ +70°C

Storage Temperature

-40°C ~ 80°C

Rel. Humidity

0~95%RH

Dimension

210mm(L) x 92mm(W) x 50mm(H)

Weight

0.5Kg

Housing

IP67

Approvals

CE FCC Processing

Installation

1.Street lamp pole mount or Upright pole mount
2.Wall mount installation

Warranty

12 months

Remark 1: Product specifications change, without notice, consultation with agent or dealer before buying the latest specifications

Remark 2: Before using, please confirm that the upper cover is marked with input 12Vdc / 6A ~ or 24VDC / 3A ~ voltage mode, please follow the instructions input voltage power supply.

Welcome to consult OEM / ODM custom business cooperation!!

IP69 Aluminum Die-casting Anti-UV Corrosion Resistant Waterproof Case

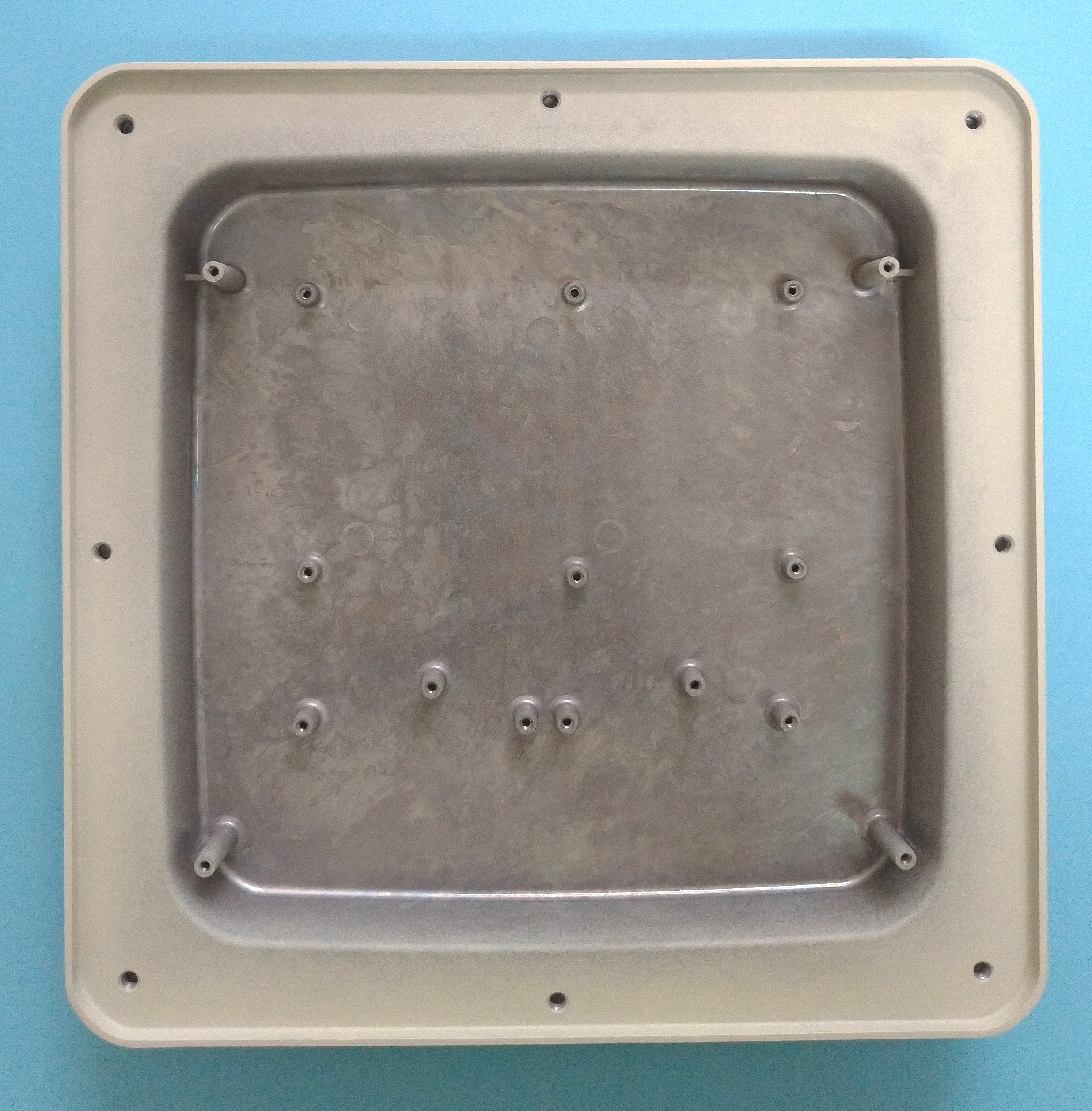

Model Number : IOP-MBAP-XACX_A1
 MBAP-XACX_A1_01  MBAP-XACX_A1_02  MBAP-XACX_A1_03  MBAP-XACX_A1_04 　
　
　 　 16 Screw column
 for PCBA assembly		 Space and Screw
for DC UPS Battery-9.8Ah		 　
Model Number : IOP-MBAP-XACX_A2
 MBAP-XACX_A2_01  MBAP-XACX_A2_02  MBAP-XACX_A2_03  MBAP-XACX_A2_04 　
　
M16 Type have 4 Holes 　 16 Screw column
 for PCBA assembly		 Space and Screw
for DC UPS Battery-7Ah		 　
Model Number : IOP-MBAP-XACX_A3
 MBAP-XACX_A3_01  MBAP-XACX_A3_02  MBAP-XACX_A3_03   　
　 　
M16 Type have 8 Holes 　 16 Screw column
 for PCBA assembly		 　 　
Model Number : IOP-MBAP-XACX_B1
 MBAP-XACX_B1_01  MBAP-XACX_B1_02 　   　
　 　 　
　 12 Screw column
 for PCBA assembly		 　 　 　
Model Number : IOP-MBAP-XACX_C1
 MBAP-XACX_C1_01  MBAP-XACX_C1_02  MBAP-XACX_C1_03   MBAP-XACX_C1_04 　
M12 Type have 2 Holes
M16 Type have 2 Holes
M20 Type have 2 Holes		 14 Screw column
 for PCBA assembly		 　 　 　
Model Number : IOP-MBAP-XACX_C2
 MBAP-XACX_C2_01  MBAP-XACX_C2_02  MBAP-XACX_C2_03  MBAP-XACX_C2_04 　
　
M12 Type have 2 Holes
M16 Type have 4 Holes
M20 Type have 2 Holes		 14 Screw column
 for PCBA assembly		 　 　 　
Model Number : IOP-MBAP-XACX_C3
 MBAP-XACX_C3_01  MBAP-XACX_C3_02  MBAP-XACX_C3_03  MBAP-XACX_C3_04 MBAP-XACX_C3_05
M12 Type have 2 Holes
M16 Type have 6 Holes
M20 Type have 2 Holes		 14 Screw column
 for PCBA assembly		 　 　 Space and Screw
for DC UPS Battery-21Ah
Model Number : IOP-MBAP-XACX_C4
 MBAP-XACX_C4_01  MBAP-XACX_C4_02  MBAP-XACX_C4_03  MBAP-XACX_C4_04 MBAP-XACX_C4_05
M12 Type have 6 Holes
M16 Type have 8 Holes
M20 Type have 2 Holes		 14 Screw column
 for PCBA assembly		 　 　 M12 Type have 6 Holes

Welcome to consult OEM / ODM custom business cooperation!!





Welcome to consult OEM / ODM custom business cooperation!!

IP68 Customized Waterproof Connector Wiring
--M12/ M16/ M20/ RJ-45/ DC2.1/ N-type

No Type Image Model Main Spec Pin Head
1 DC to DC IOP-DCP-02
_DCM2.1-39CM-DCM2.1

1. DC 2.1 to DC2.1
2. 39CM
3. 18AWG
4. 12A
5. IP65
6. -20 ~ +80℃
7. 300V

 　
2 DC to DC IOP-DCP-01
_DCM2.1-160CM-DCM2.1

1. DC 2.1 to DC2.1
2. 160CM
3. 18AWG
4. 12A
5. IP65
6. -20 ~ +80℃
7. 300V

 　
3 DC to DC
　		 IOP-DCP-03
_1DCFP-17CM-2DCFP

1. 1DC FP to 2DC FP
2. 17CM
3. 18AWG
4. 12A
5. IP65
6. -20 ~ +80℃
7. 300V

 　
4 RJ-45 to RJ-45 IOP-C5EMM08-A-RJP01_C5E(MMP8)-260-A-RJP01

1. 1 RJ45 to 1 RJ45
2. 26CM
3. 20AWG
4. 2A
5. -20 ~ +80℃
6. 60V

 　
5 M12 to M16

to Ethernet Cable
　		 IOP-M12RM08-A-RJP01
_M12(RMP8)-M16-A-RJP01

1. M12 to M16 to RJ45
2. 23CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V
6 M12 to M12

to Ethernet Cable
IOP-M12PM08-B-RJP01
_M12(PMP8)-M12-B-RJP01

1. M12 to M12 to RJ45
2. 23CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V
7 M12 to M12

to DC
　		 IOP-M12RF02-B-DCP01
_M12(RFP2)-M12-B-DCF2.1		 1. M12 RFP2 to M12 to DC
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V
8 M12 to M12

to DC
　		 IOP-M12RM02-B-DCP01
_M12(RMP2)-M12-B-DCF2.1		 1. M12 RMP2 to M12 to DC
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V

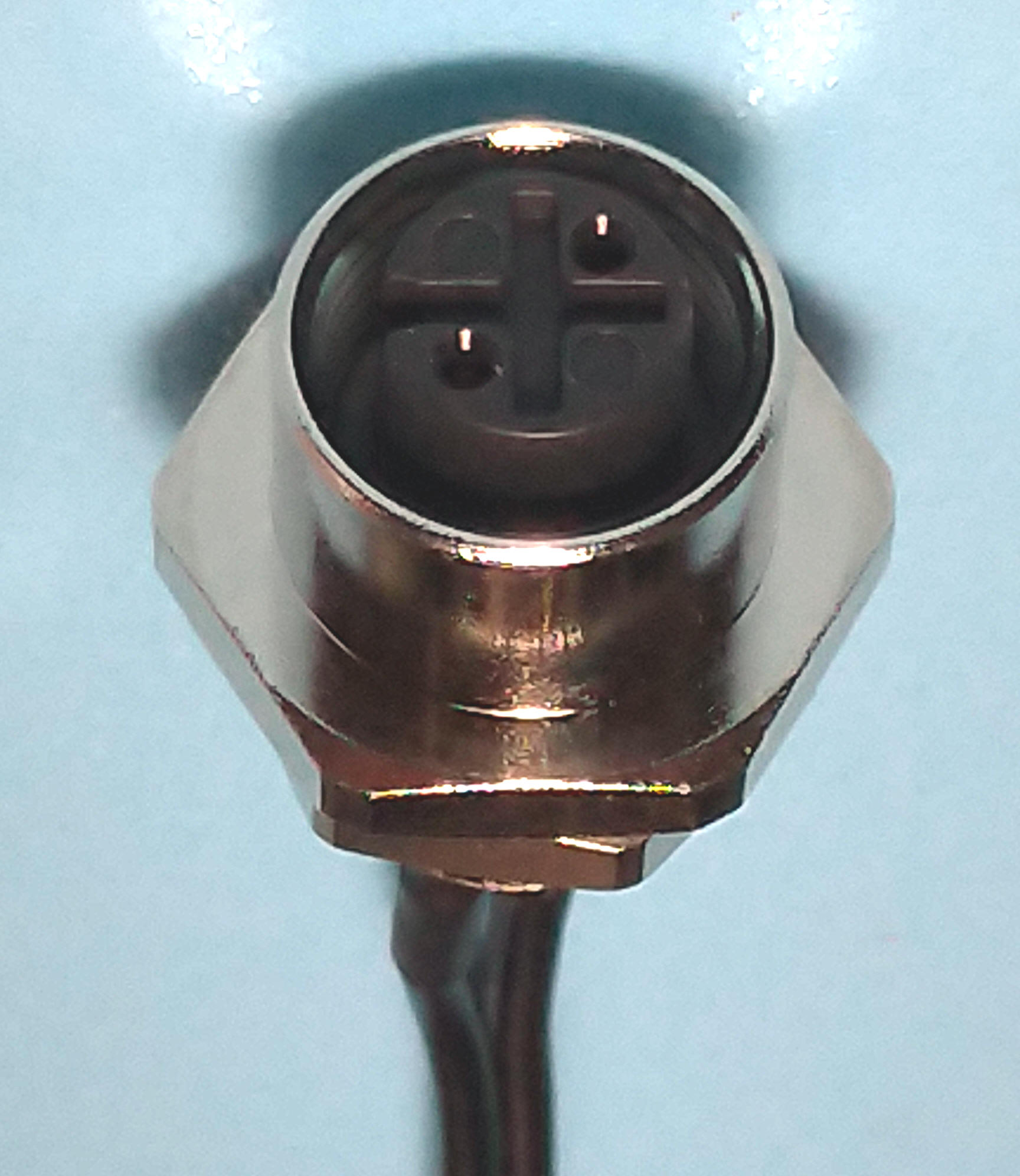

9 M12 to M12

to Line
　		 IOP-M12RF02-B-01
_M12(RFP2)-M16-B-01-L		 1. M12 RFP2 to M12 to Line
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V

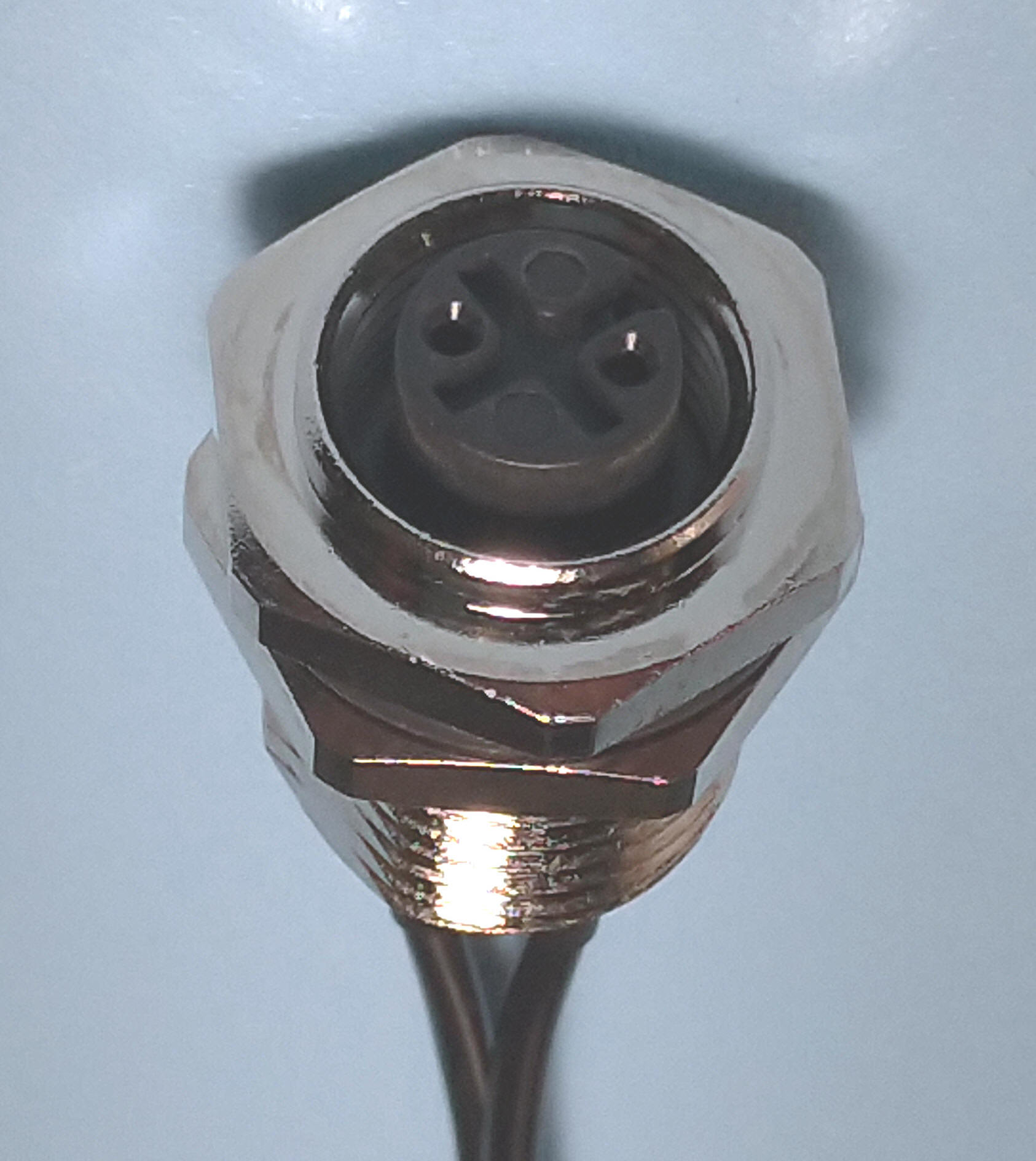

10 M12 to M16

to Line
　		 IOP-M12RF02-A-01
_M12(RFP2)-M16-A-01-L		 1. M12 RFP2 to M16 to Line
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V
11 M12 to M16

to DC
　		 IOP-M12RF02-A-DCP01
_M12(RFP2)-M16-A-DCF2.1		 1. M12 RFP2 to M16 to DC
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V
12 M12 to M16

to DC
　		 IOP-M12RM02-A-DCP01
_M12(RMP2)-M16-A-DCF2.1		 1. M12 RMP2 to M16 to DC
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V
13 Outside M12 to DC
　		 IOP-M12CF02-DCJ01
_M12(CFP2)-30CM-DCJ01		 1. Outside M12 CFP2 to DC
2. 30CM
3. 18AWG
4. 12A
5. IP67
6. -20 ~ +80℃
7. 300V
14 Outside M12 to DC
　		 IOP-M12CM02-DCP02
_M12(CMP2)-30CM-DCP02		 1. Outside M12 CMP2 to DC
2. 30CM
3. 18AWG
4. 12A
5. IP67
6. -20 ~ +80℃
7. 300V
15 Outside M12 to DC
　		 IOP-M12CM02-200CM-DCP01
_M12(CMP2)-200CM-DCP01		 1. Outside M12 CMP2 to DC
2. 200CM
3. 18AWG
4. 12A
5. IP67
6. -20 ~ +80℃
7. 300V
16 Outside M12 to RJ-45
　		 IOP-M12CF08-RJP01
_M12(CFP8)-27CM-RJP01		 1. Outside M12 CFP8 to RJ45
2. 27CM
3. 18AWG
4. 12A
5. IP67
6. -20 ~ +80℃
7. 300V
17 N-type to M16

to MMCX

 IOP-NFMMC180-A-RG178_NTFD(180)-MMC-A-RG178 1. N-type Jack to M16 to MMCX
2.18CM
3. RG178
4. -30dB
5. IP68
6. -20 ~ +80℃
7. 16W
18 N-type to M16

to IPEX

 IOP-NFIPE250-B-RG178_NTFD(250)-IPE-B-RG178 1. N-type Jack to M16 to IPEX
2.25CM
3. RG178
4. -30dB
5. IP68
6. -20 ~ +80℃
7. 16W

Welcome to consult OEM / ODM custom business cooperation!!





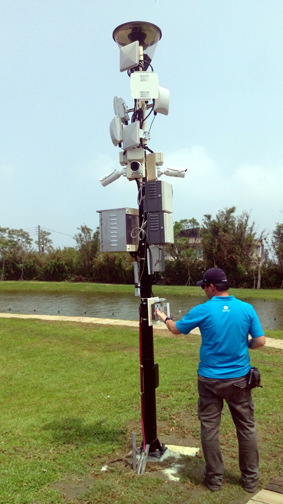

『Taoyuan Agricultural Expo 2018』wireless surveillance & video walkie-talkie and power detection control management implementation project

2018/04/03

Download : Wireless surveillance and video walkie-talkie and power detection control management implementation project EV1

　

Download : Wireless surveillance and video walkie-talkie

and power detection control management implementation project EV1

　

『Mobile PTP MESH wireless surveillance system』with

『Mobile 3G4G wireless router multi-WAN backup export』application design EV3_Price0

　

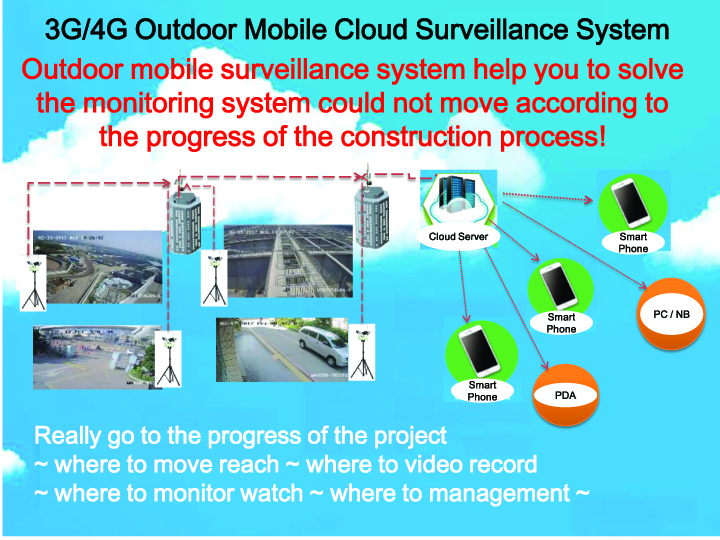

3G4G Mobile Cloud Surveillance System_EV 170220

　

　

Download : IO-Power C-LiFePO4 Lithium Batteries Discharge Watts Define

　

Outdoors 3G/4G wireless cloud surveillance & temporary mobile surveillance system

『Real Outdoor Waterproof, Resistant to High Temperature 70 ℃, Life Cycle more than 6 Years and Outdoor DC UPS Support Power Supply over 12Hrs - 130Hrs.』

Should for "Fire site emergency ", "Emergency accident temporary ", " Illegal to deliver garbage", " Forest stealing the timber ", "Temporary activities ", "Construction site ", " Marathon road race activity "...and so on, to do mobile video record and cloud real time monitoring.

Integration Special Features:

n Cloud Network IR Camera

- Support 1.3 Mega Pixels network Camera and 20-meter infrared effect at night.

- Design of VPN network, simply enter your account number and password in advance online, without making any setting, you can make a cloud video monitoring and network real time monitor.

- If connected to the Internet network can perform remote control setting on a cloud.

- Site backups can used with NVR video recording, also can be used with NAS backend video management.

n The Cloud of Network Monitoring Platform Run Recording and Playback Features

- Only need connected to the Internet network, cloud platform will automatically perform the cloud video in real time.

- Only need connected to the Internet network, you can watch real-time video recording images from cloud platforms.

- Only need connected to the Internet network, you can remote control and playback video recording images from cloud platforms.

- The cloud record video type can select 7-day or 30-day cycle, covers the video replays and download access to your files.

n  Outdoor 3G/4G Wireless Router

- 3G/4G wireless, mobility and wireless advantage does not subject to space restrictions, particularly suitable for monitoring emergency and temporary needs.

- 3G wireless bandwidth up to 2Mbps, 4G the wireless bandwidth up to 8~18Mbps, can handle single or multiple cameras transmission needs.

- 3G/4G wireless router transfers, only need 3G/4G SIM card is inserted, without making any setting can online transferred right away.

n Outdoor Long-term DC UPS Power Supply System

- Power supply system with IP66 outdoor environment with 70℃ heat-resistant normal operation of more than 6 years of service life.

- Support for 12 hrs ~ 130 hrs outdoor power supply system (or connect online backup DC UPS to place an unlimited number of days), (based on the 3G/4G wireless video monitoring system in the cloud power calculations)

- Use large power consumption DC UPS type can supports eight cameras working at same time and large current fast-charge available in a short time (2-10 hours) full battery.

n  Magnet Match-Assembly Equipment and Easy Storage Tripod

- Portable mobility combined with the magnet change and free features such as adsorption of metal fixation, suitable for use in an emergency

　

Outdoor 3G/4G Wireless Cloud Surveillance System Demo

Dome Website: http://service.skywatch24.com/en/login

Account: io-power@io-power.com.tw

Password: 25081985

　

　

Indoor / Outdoor Long-term Model

Online Type Stability Voltage Uninterruptible Power System

12VDC Powered Distance Voltage Drop Test Report

No.

Battery Voltage

Test conditions

Distance

Transformers No Power Supply

Transformers Power Supply

Camera No Power Supply

Camera Power Supply

1.5M

47M

1.5+45
+0.5=47

55M

1.5+45
+1.5*5+1=55

63M

1.5+45
+1.5*10+1.5=63

71M

1.5+45
+1.5*15+2=71

Measuring Voltage

13.3V

￭



￭



13.3V

13.3V

13.29V

13.29V

13.28V

DC voltage difference distance less than the AC voltage difference from many (Consistent with the theory of electricity)

Measuring Voltage

13.2V

￭





￭

13.05V

12.44V

12.12V

11.74V

11.46V

Camera Operation











OK

OK

OK

OK

OK

Thread number not included in voltage reduction assessments

Measuring Voltage

13.2V



￭



￭

13.06V

12.5V

12.23V

11.9V

11.52V

Camera Operation











OK

OK

OK

OK

OK

Recommended 1:12VDC power supply within distance to 50M is good.
Recommended 2 distance after over 50M: 12VDC power supply, voltage after voltage drop is less than 12.3V, but because most of the cameras are operating within the range of 9V~16V, therefore can also be functioning properly.

 Download : 12VDC Powered Distance Voltage Drop Test Report file


I I I I I I

IO-Power Technology Co., Ltd. 1F, No. 5, Neighbor 1, Chailin Vil., Xikou Township, Chiayi County 623, Taiwan  Tel / Fax :+886 5 2697 986

Line ID: jmj10101  E-mail:io-power@io-power.com.tw  jacky@io-power.com.tw


　

Web Management Mail to  io-power@io-power.com.tw 。   Copyright (C) 2009 ~ IO-Power Technology Co., Ltd Last Upgrade：04.09.2024
