IOP-DAPS-I3O18A-1 IOP-DAPS-I3O18A-2
Input 12~24Vdc * 3 Insert

Parallel Connection 3 Insert Power

Output 12~24Vdc 6A (8A Instant max)

Input 12~48Vdc * 3 Insert

Parallel Connection 3 Insert Power

Output 12~48Vdc 6A (8A Instant max)

Input DC Voltage:12~24VDC (28V Max) Input DC Voltage:12~48VDC (56V Max)
Input DC Current: Suggest 6A~ Above Input DC Current: Suggest 6A~ Above
Output 12~24Vdc / 6A (8A Instant max)
--Output Power Supply 24Vdc 144W Max
Output 12~48Vdc / 6A (8A Instant max)
--Output Power Supply 48Vdc 288W Max

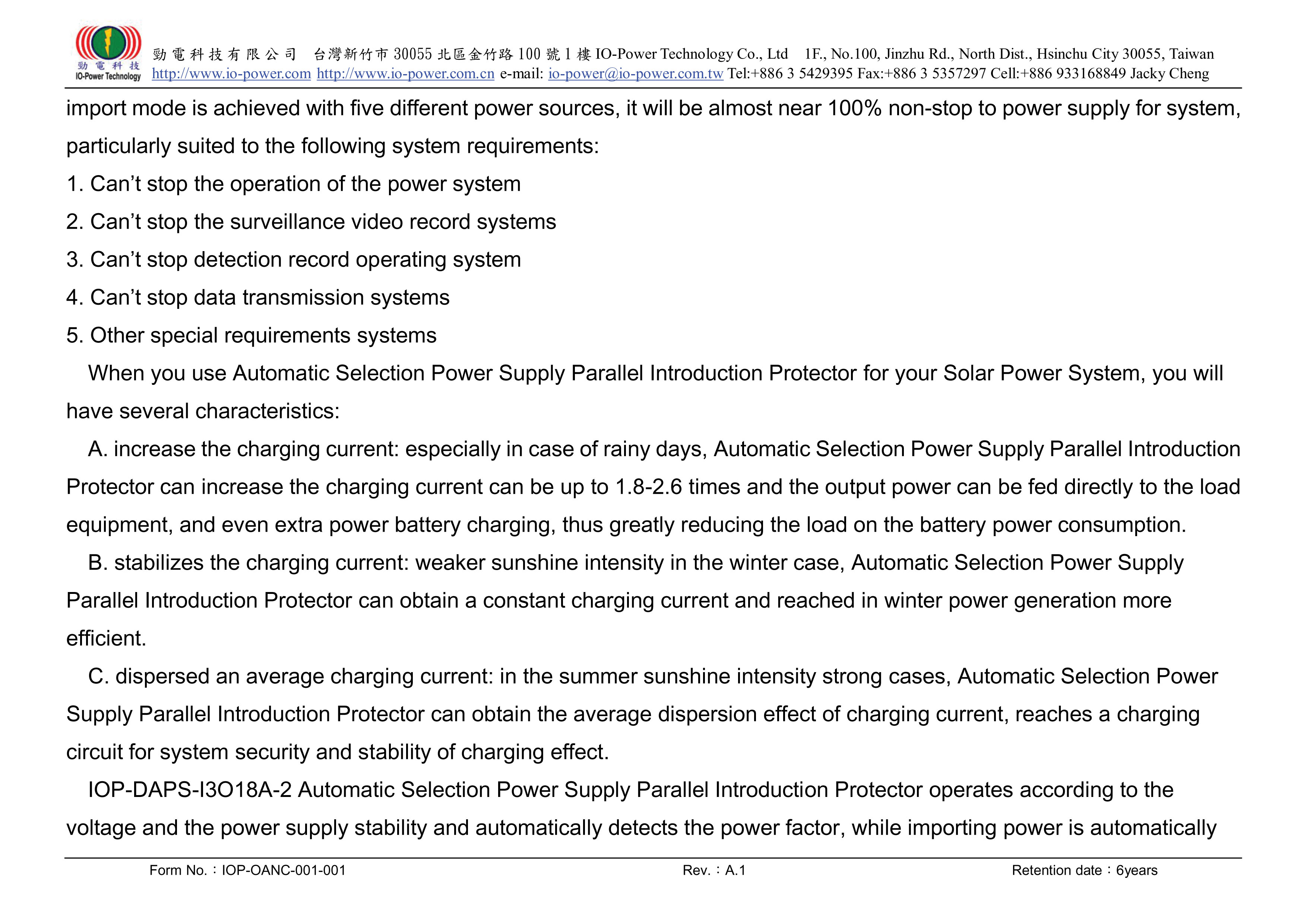

Designed for solar systems and uninterruptible power systems (UPS) and battery protection operation in parallel connection design
Data Sheet Data Sheet  New release !!

IO-Power IOP-DAPS-I3O18A-2

Outdoor Automatic Selection Power Supply Parallel Introduction Protector: 12~48VDC

Multiple Import Power Source by Parallel Protect to Charging DC UPS Power System

Download Product Data Sheet : IOP-DAPS-I3O18A-2 (12-48VDC) Data Sheet 2018 EV1.0



Download : IO-Power C-LiFePO4 Lithium Batteries Discharge Watts Define
