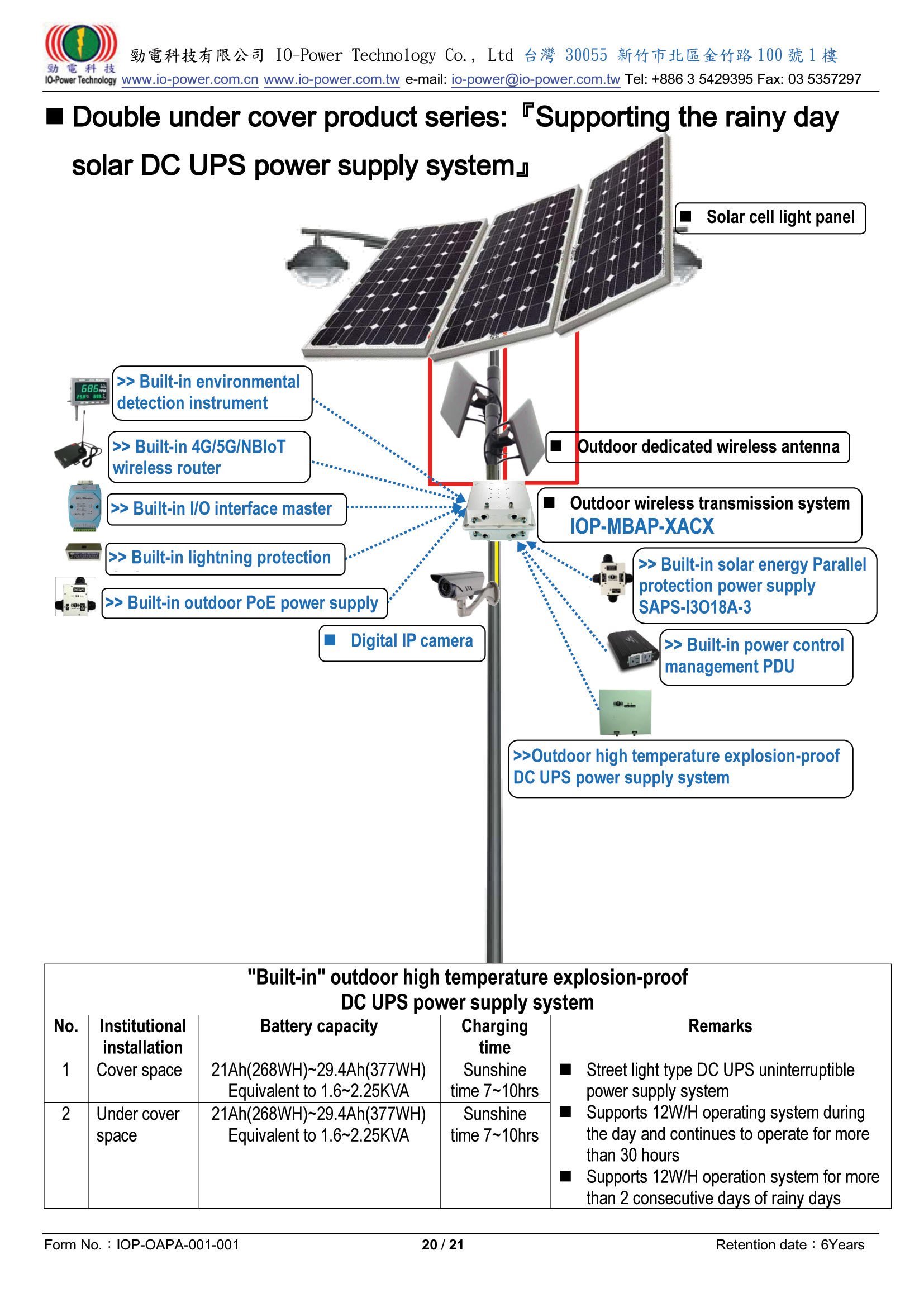

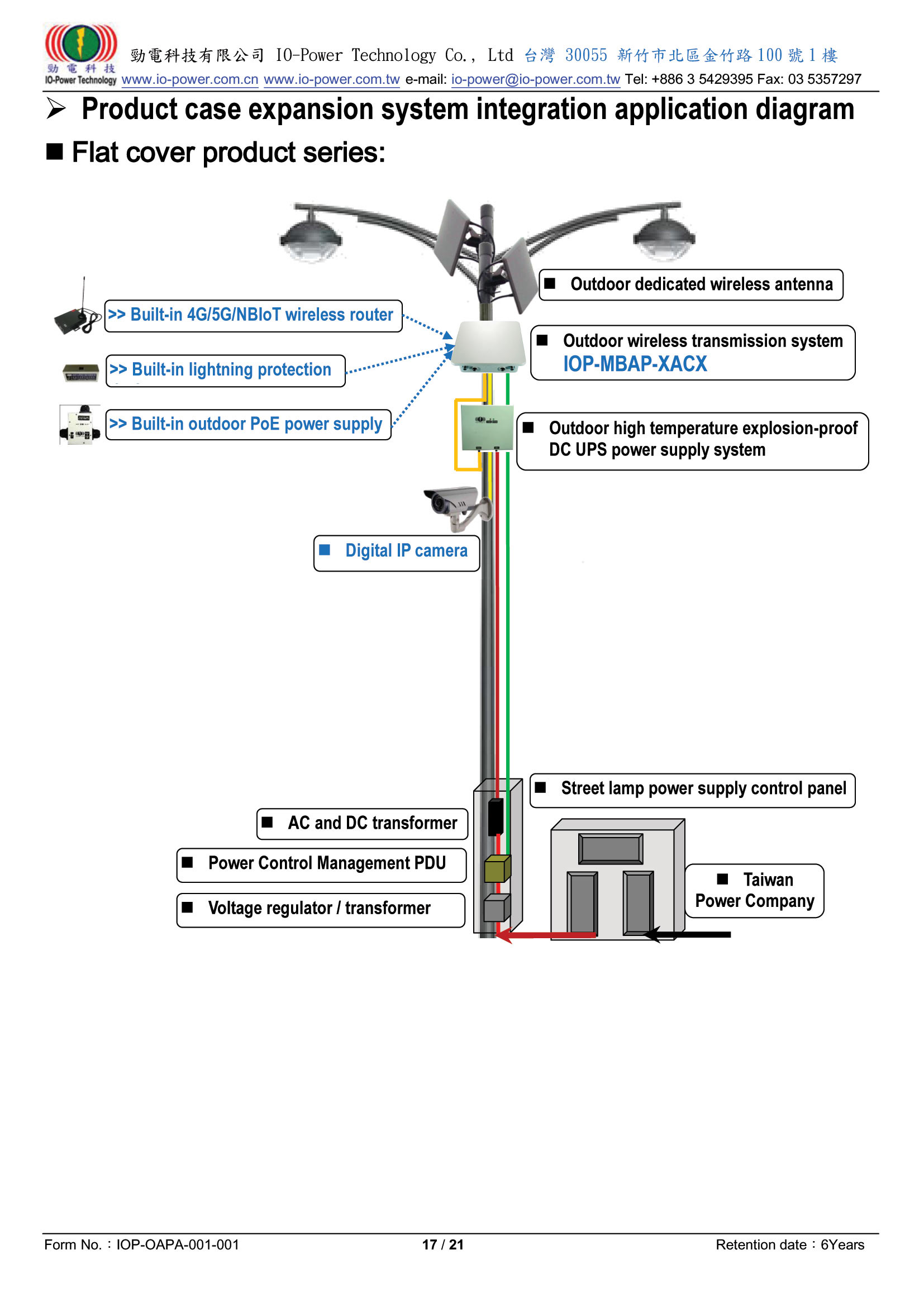

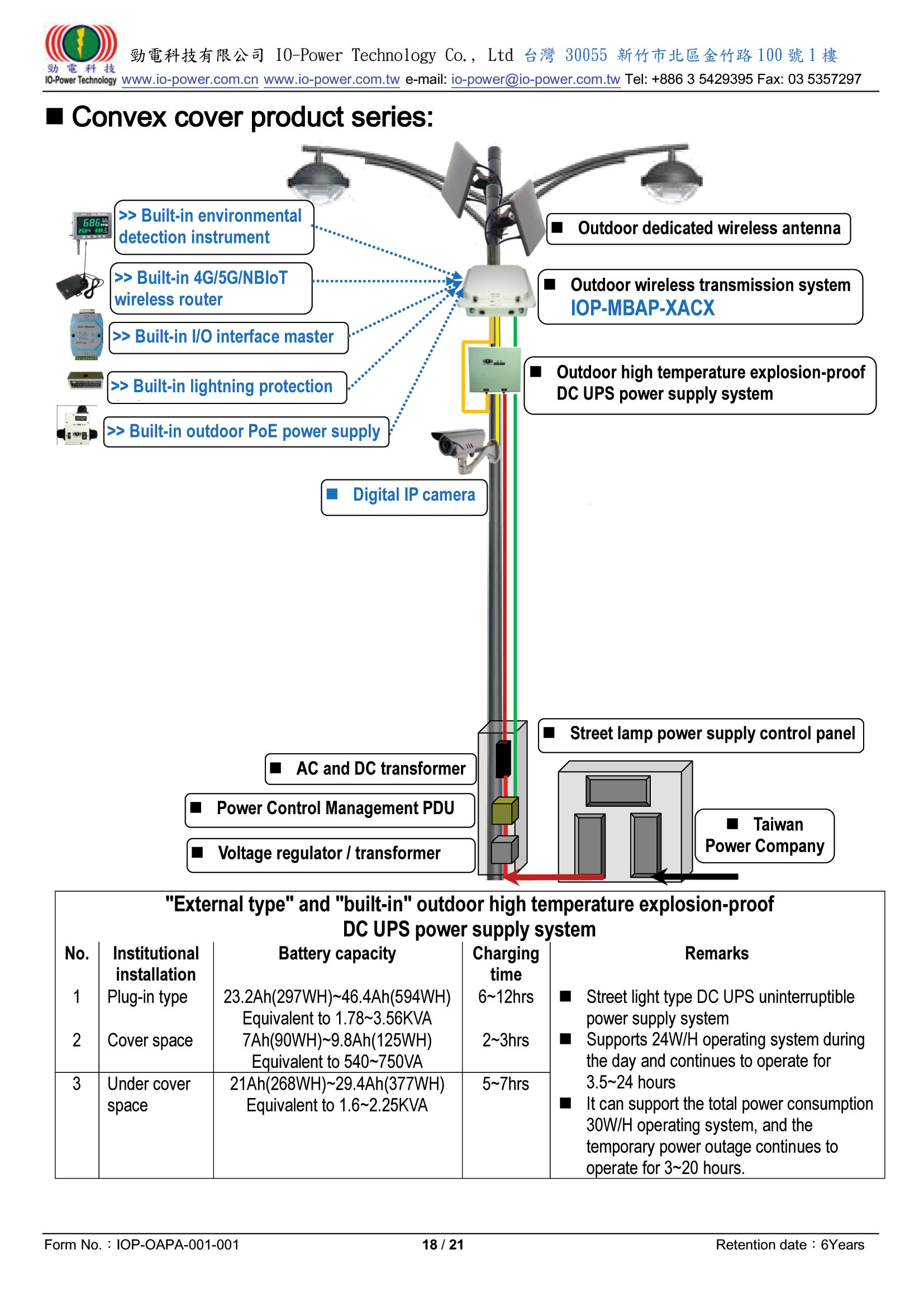

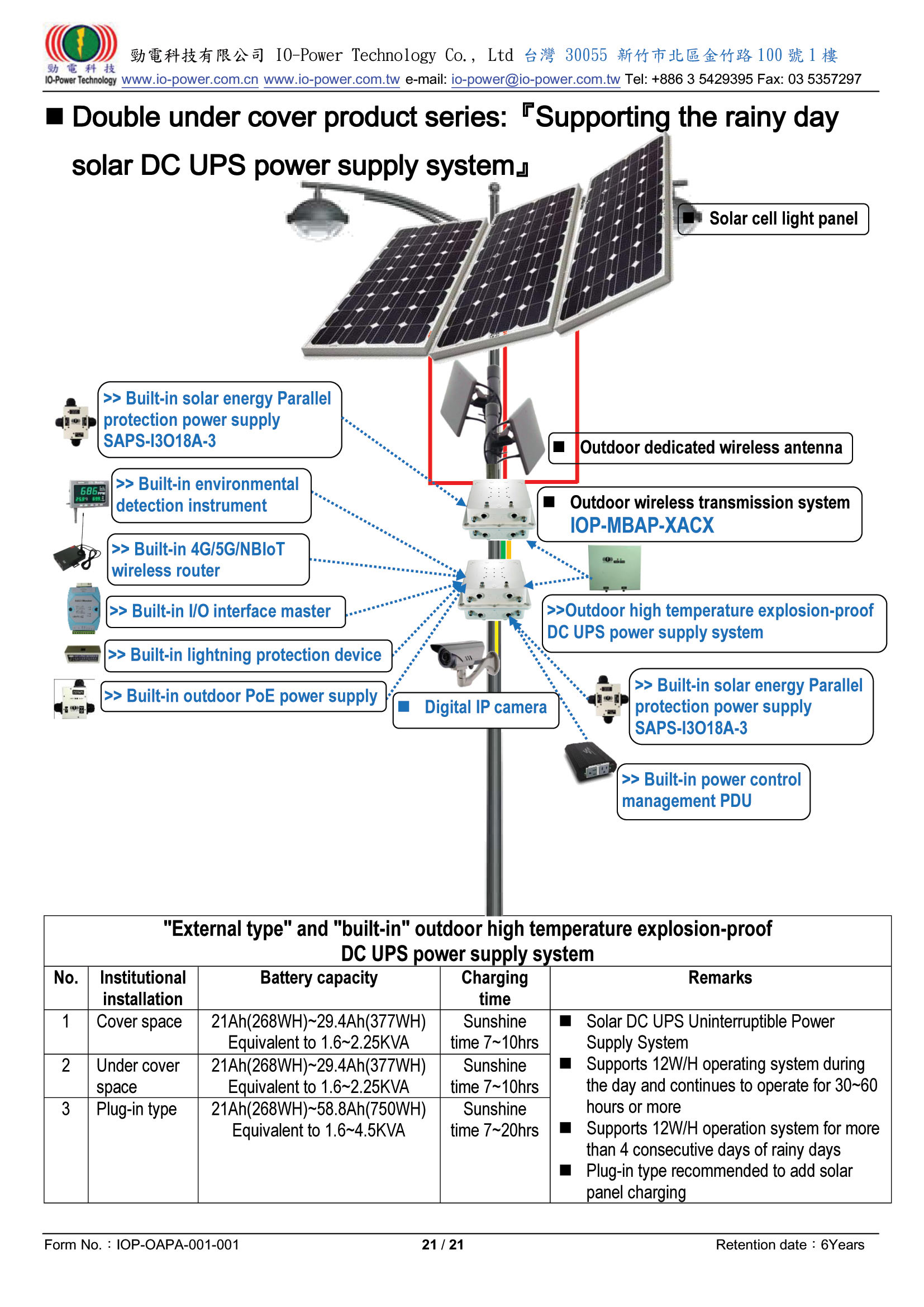

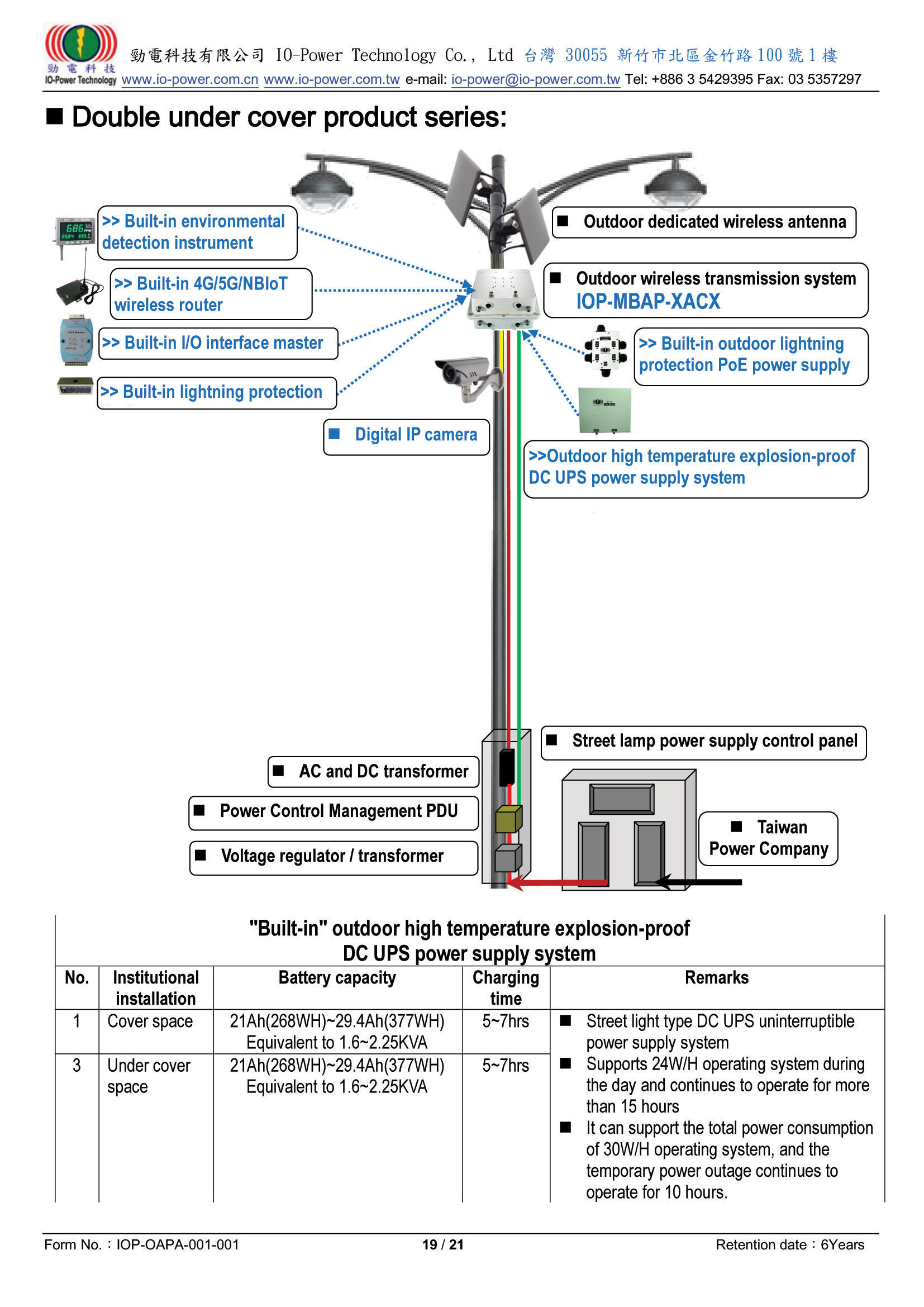

Outdoor DC UPS Power System Application_Street Light Solar Power Wind Power General Grid Power

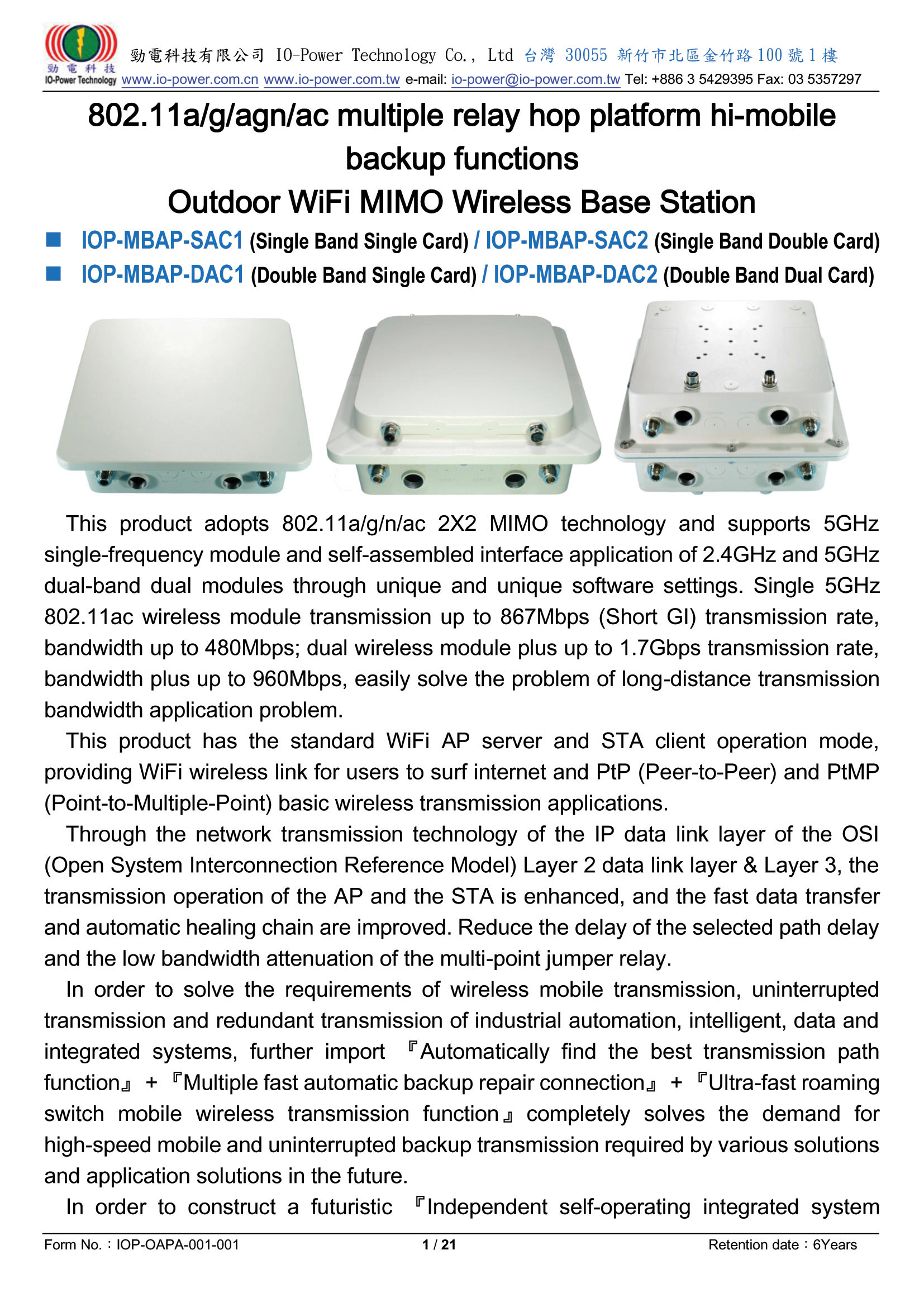

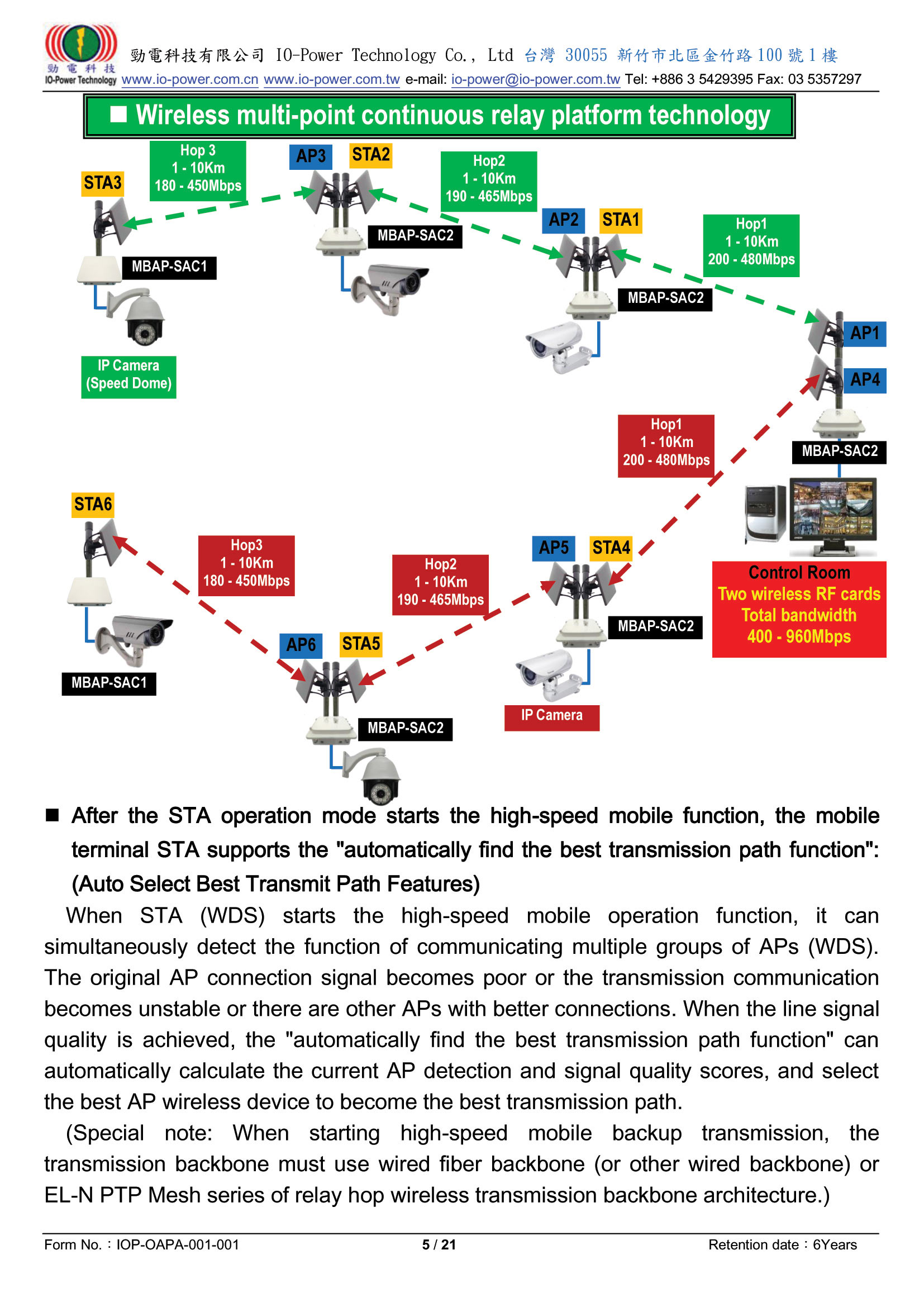

802.11a/g/agn/ac multiple relay hop platform hi-mobile backup functions

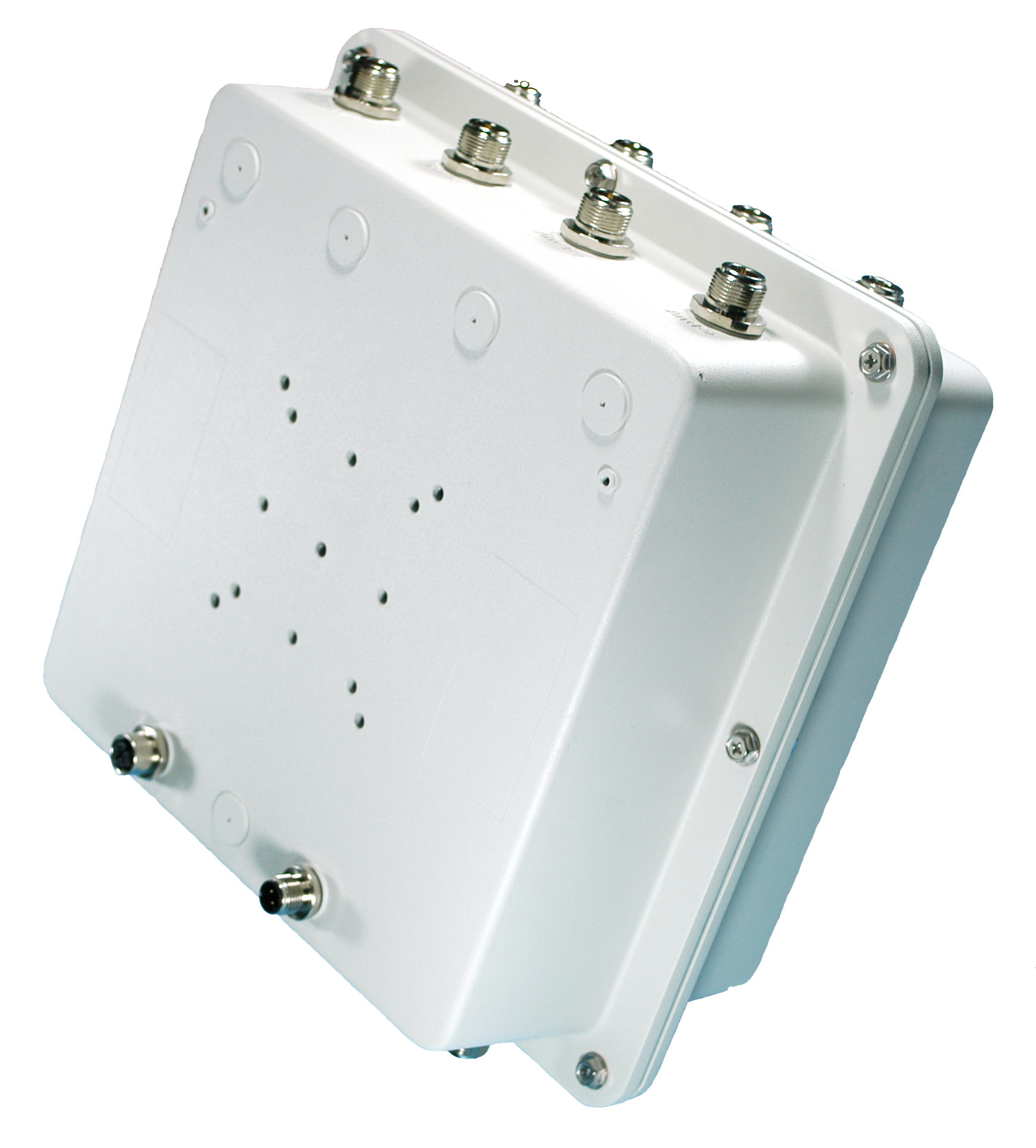

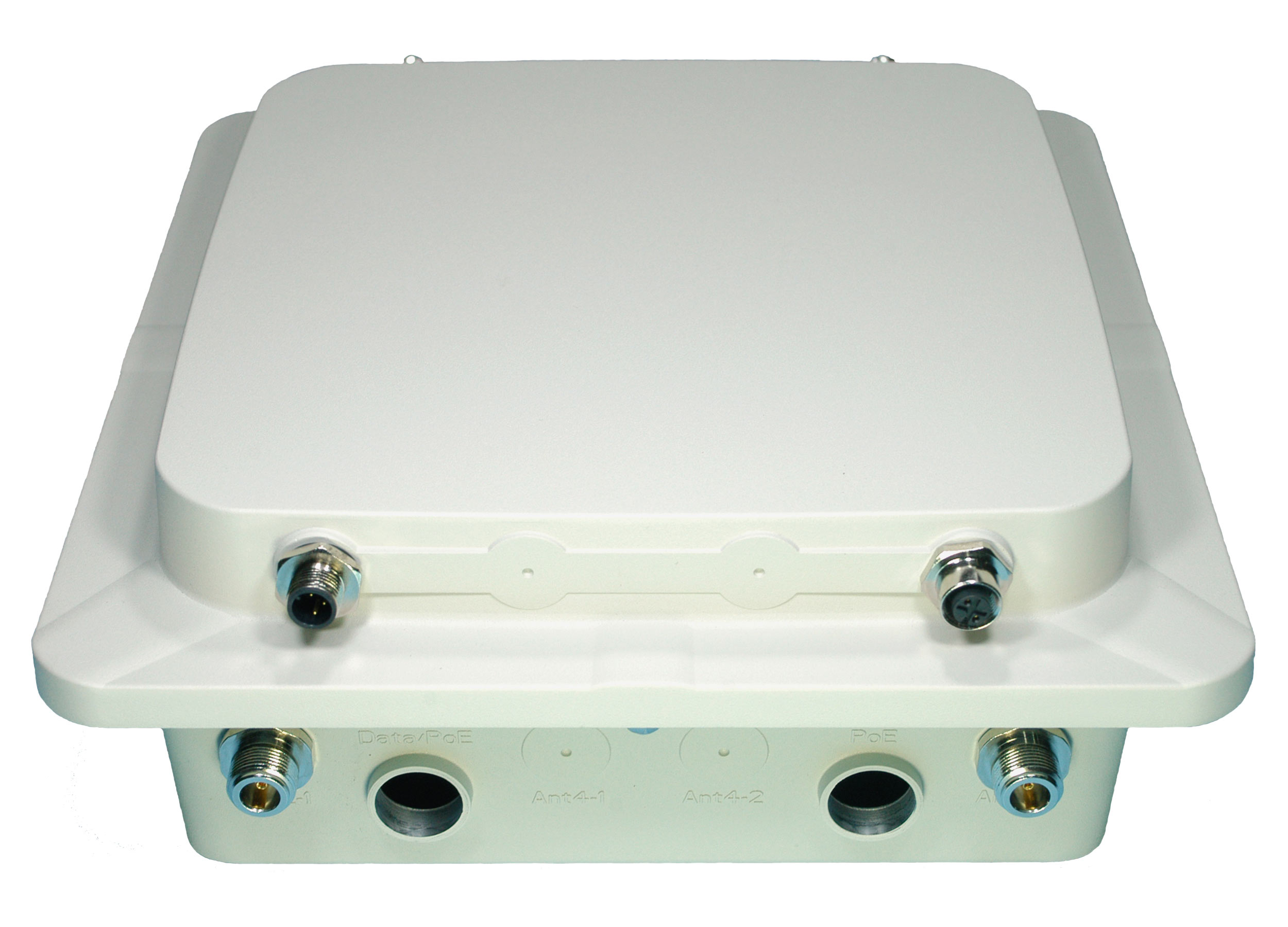

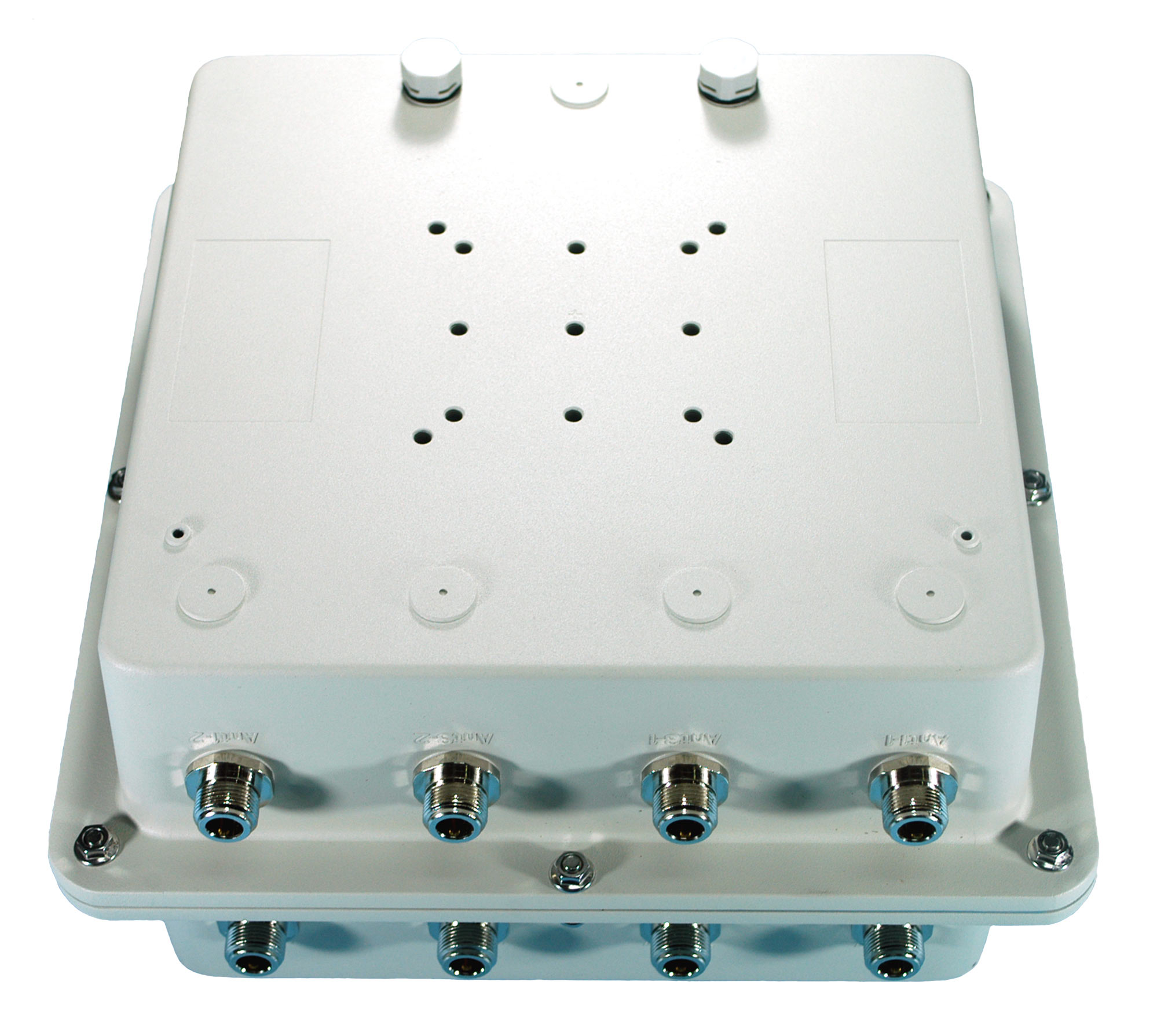

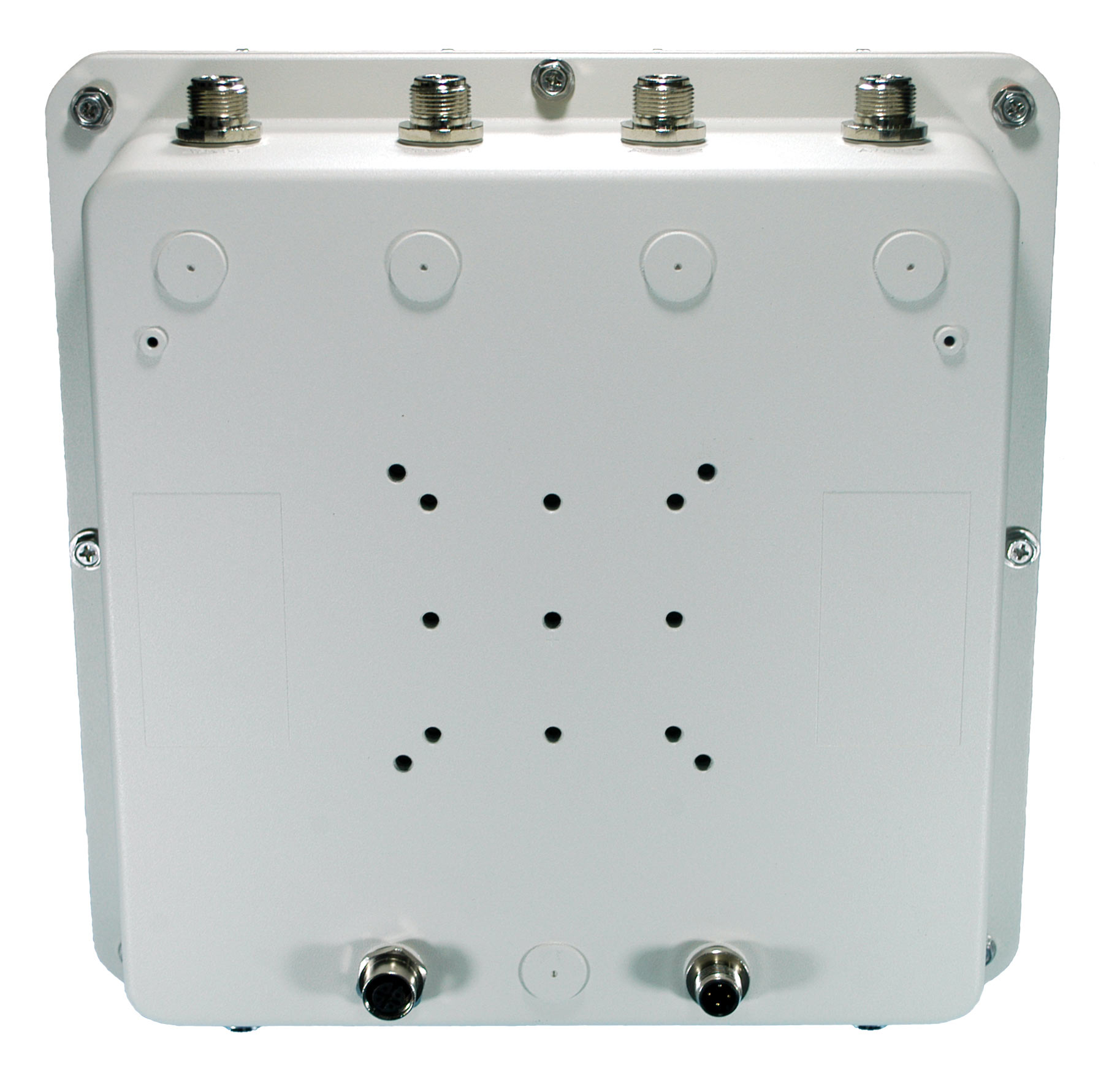

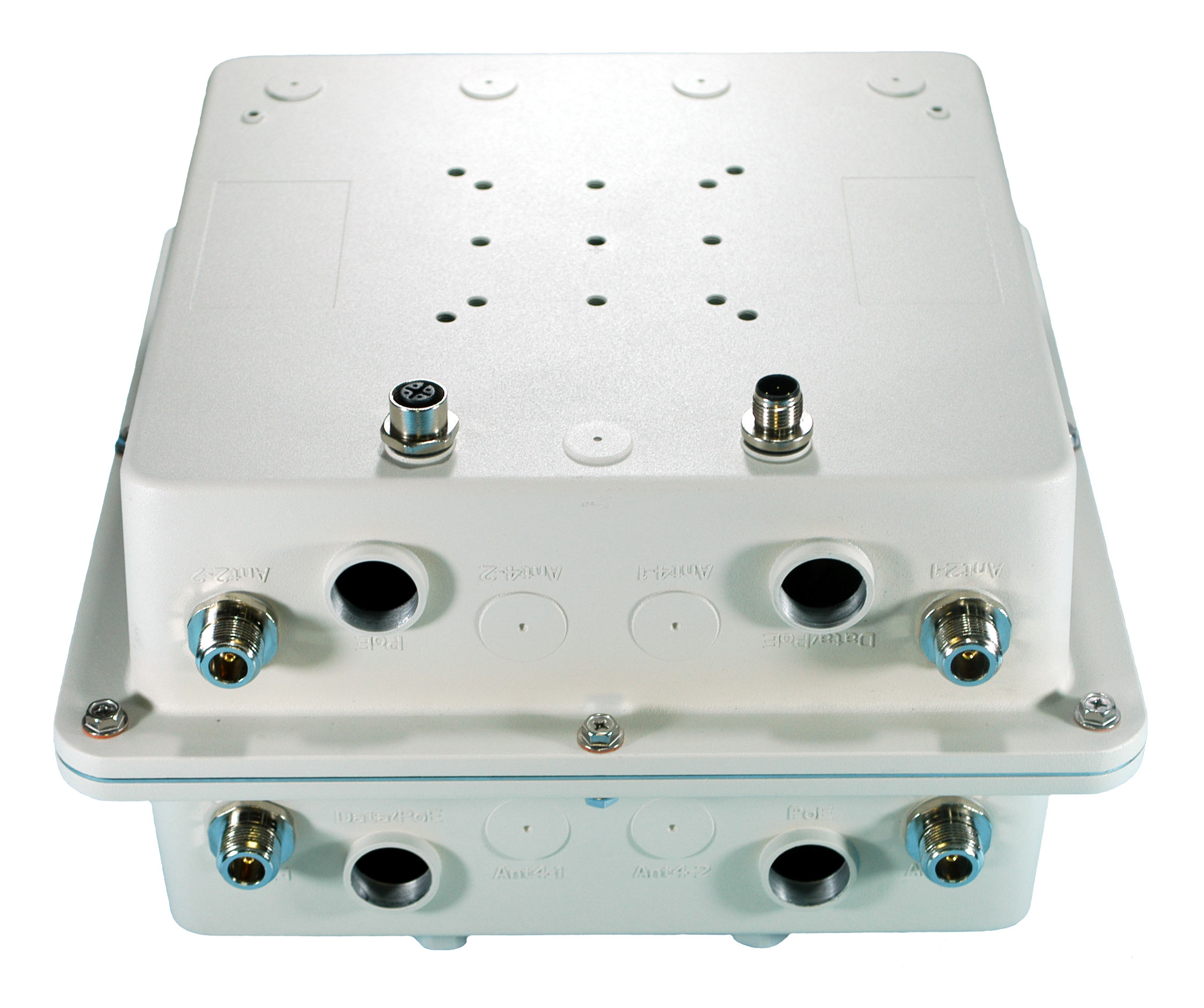

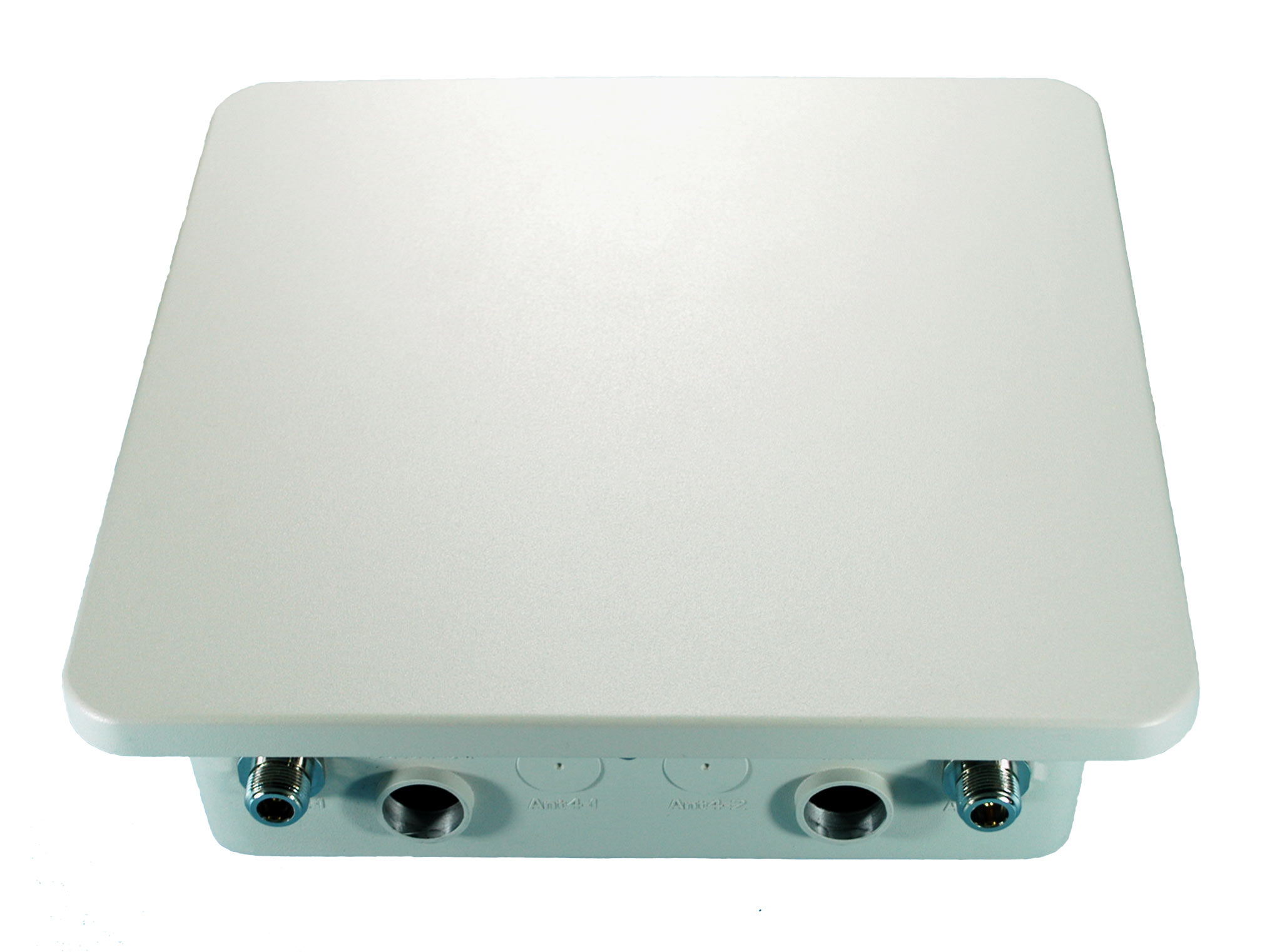

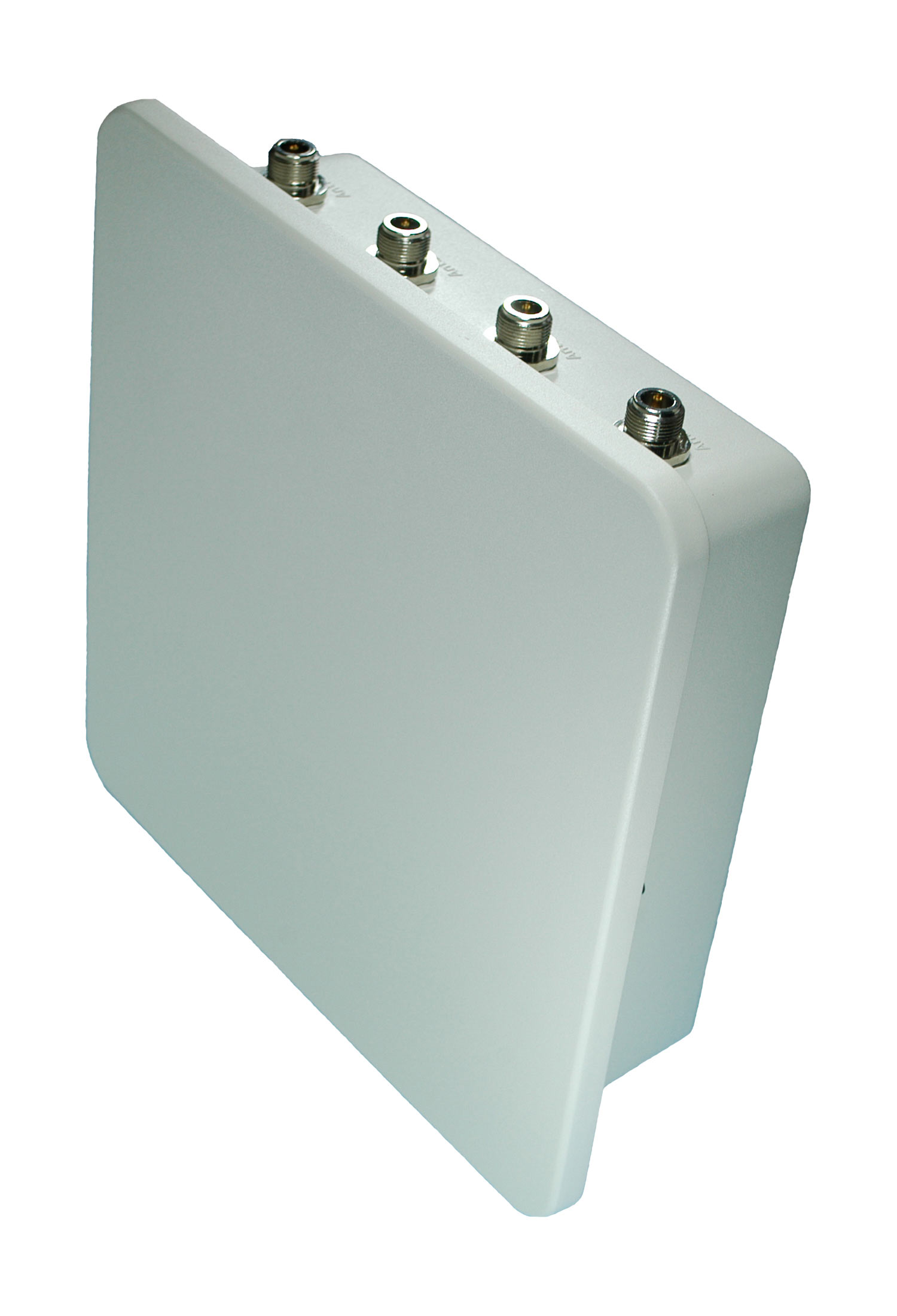

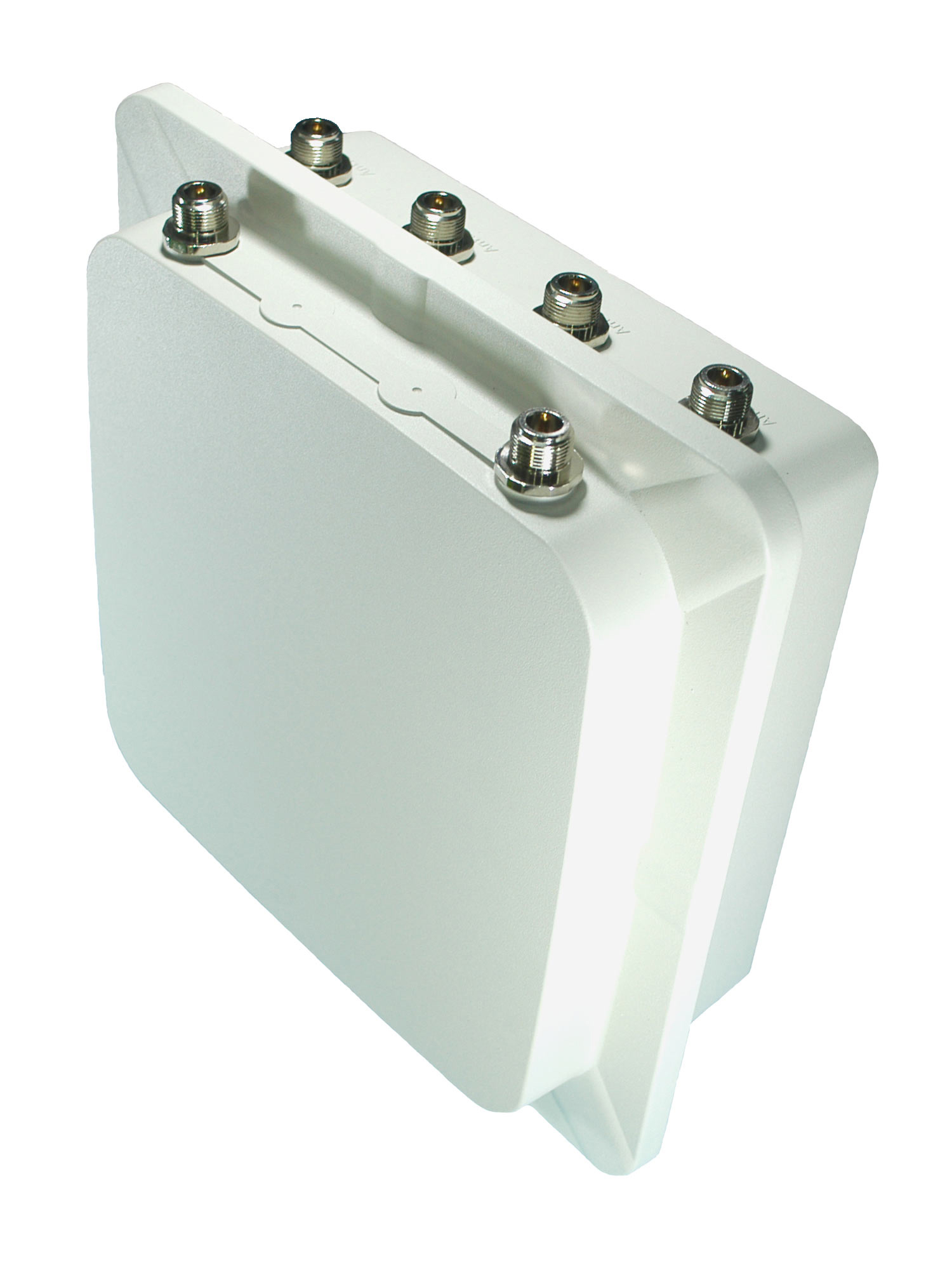

Outdoor WiFi MIMO Wireless Base Station

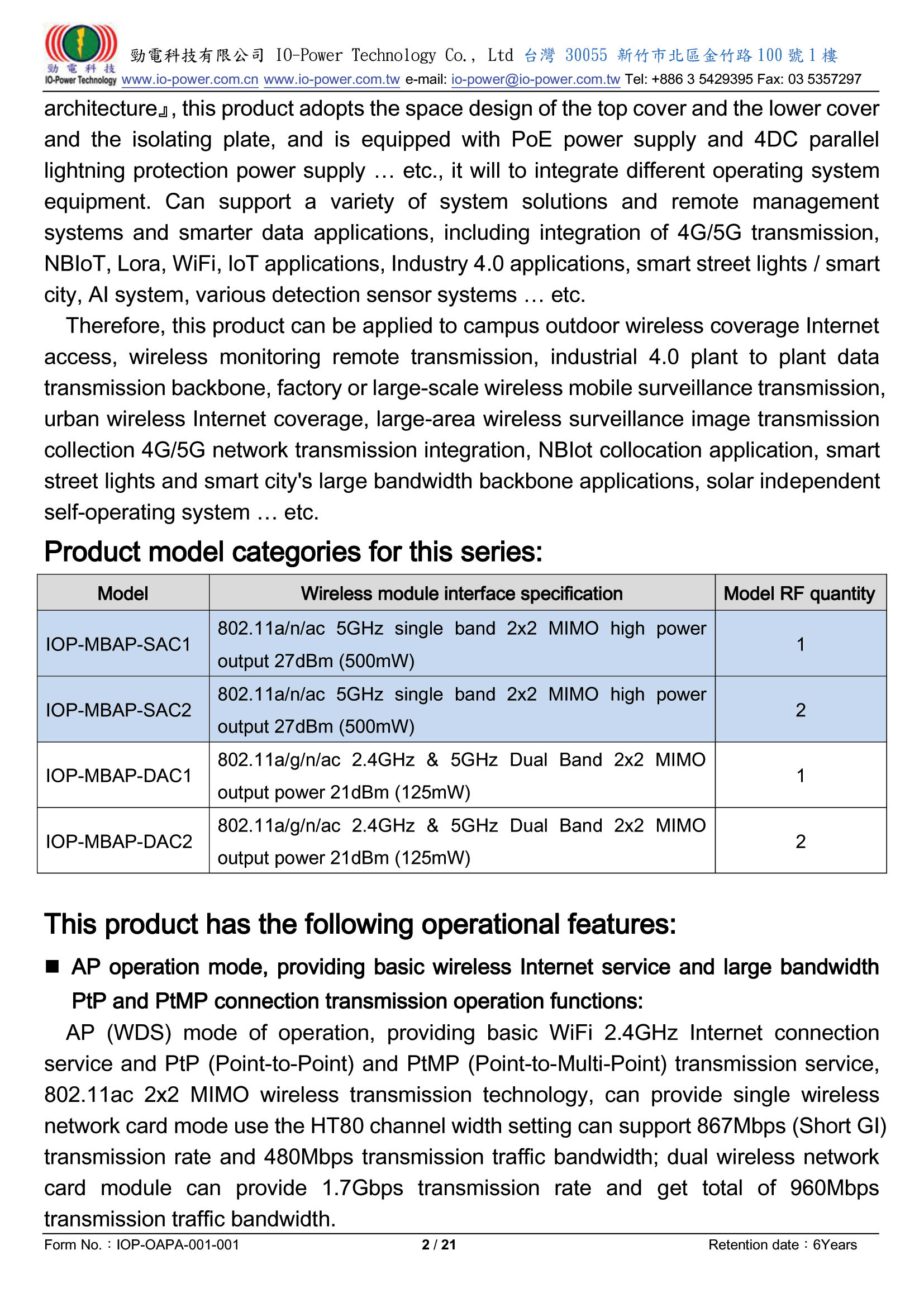

Model	Wireless module interface specification	Model RF quantity
IOP-MBAP-SAC1	802.11a/n/ac 5GHz single band 2x2 MIMO high power output 27dBm (500mW)	1
IOP-MBAP-SAC2	802.11a/n/ac 5GHz single band 2x2 MIMO high power output 27dBm (500mW)	2
IOP-MBAP-DAC1	802.11a/g/n/ac 2.4GHz & 5GHz Dual Band 2x2 MIMO output power 21dBm (125mW)	1
IOP-MBAP-DAC2	802.11a/g/n/ac 2.4GHz & 5GHz Dual Band 2x2 MIMO output power 21dBm (125mW)	2
