30Km Highway 100 Camera 300Mbps
Wireless Surveillance Backhaul 01

34 Speed Dome 221Mbps
Wireless Surveillance Backhaul 02

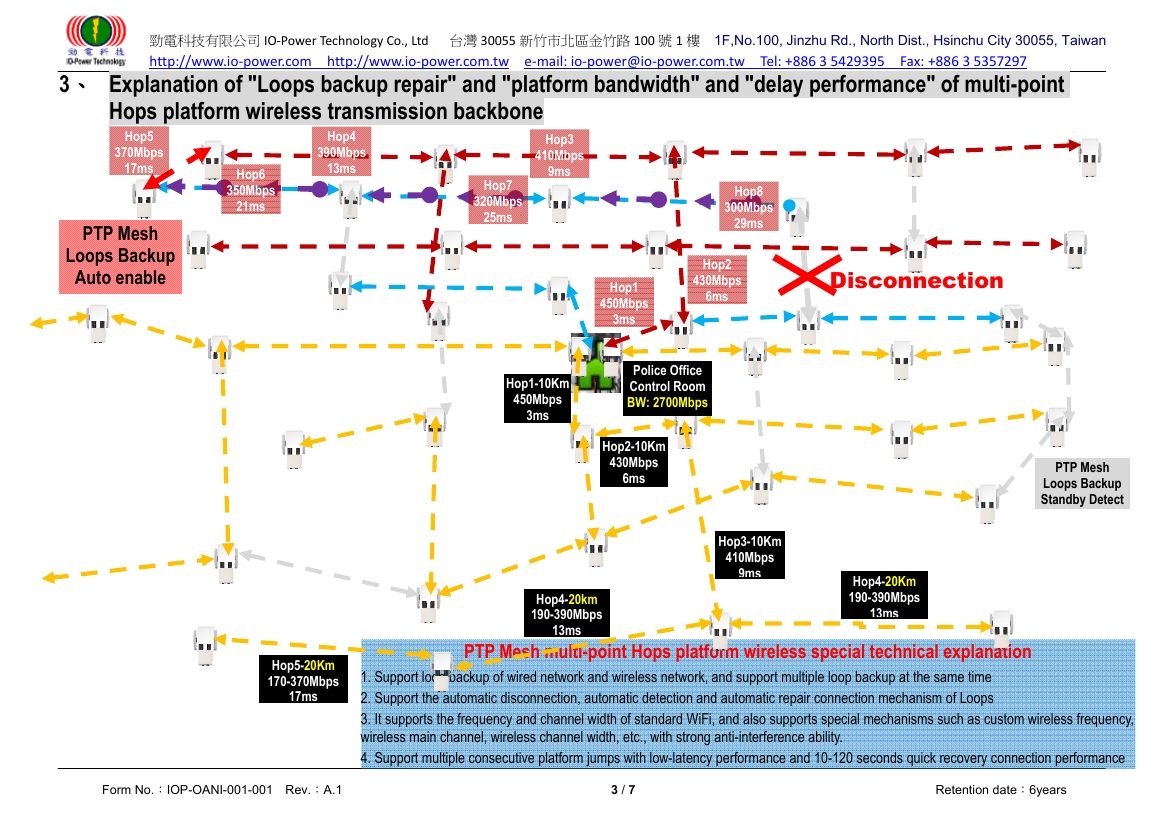

Police Office Project
Wireless Surveillance System 03

Train Crossing Solar DC UPS
Wireless Surveillance System 04

30Km Transformer Substation Multiple Hops
Wireless Surveillance Solar Power System 05

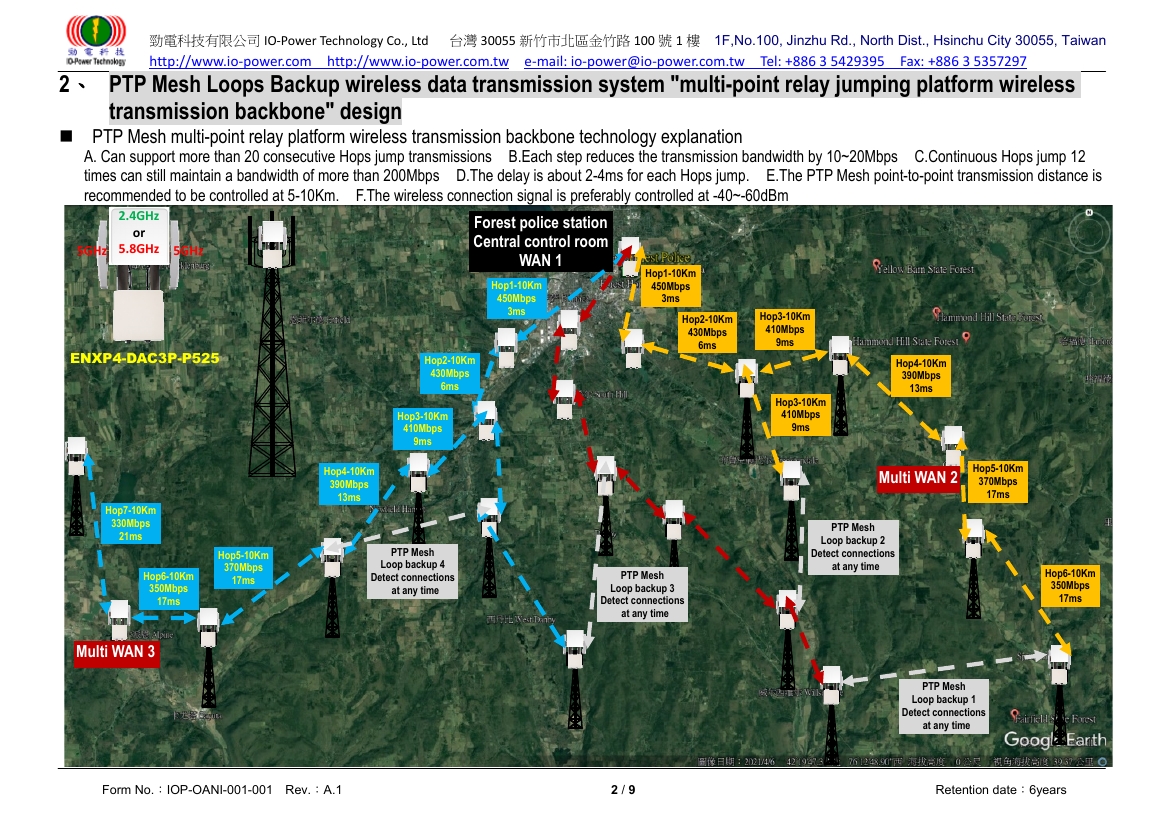

Wireless Multiple Hops V.S.Double Bridge & Repeater
(Backhaul Dead End) Comprehensive Comparison

Uninterruptible Surveillance Recording Solution with DC UPS Power System (Surge-free and Stable Voltage)

Wireless Automobile Data Transmission Slution for Parking Lot (Mobile DVR/NVR)

Long Distanced Bus Stops Wireless Surveillance Transmission System in Real-time

Wireless Remote Power On / Off Schedule Controller
for Solar System & Street Lamps Power Control System

Outdoor Streetlamp Model DC UPS Power System
Streetlamp Model DC UPS Installation Instruction

Graph of C-LiFePO4 Battery Voltage and Capacity

The Difference between Transmission Throughput of Dual Polarization and Single Polarization Antenna with MIMO Wireless Device

New Products & New Solutions & New Applications

Bus Surveillance System with DC UPS System

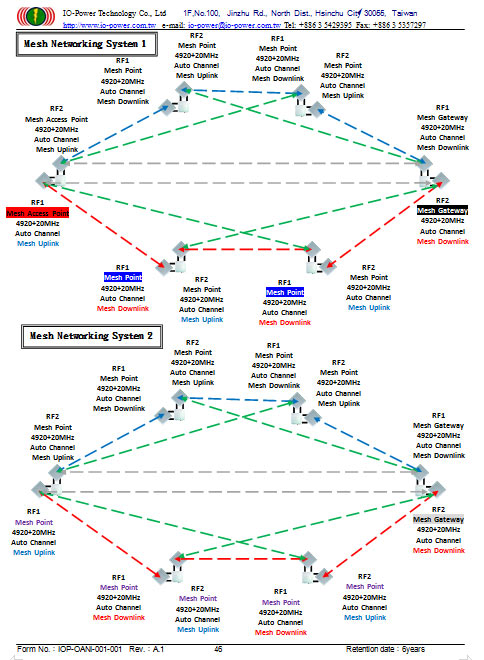

WiFi MIMO Mesh Hi-mobile Network System
-- Train & Subway & Freeway & City Road

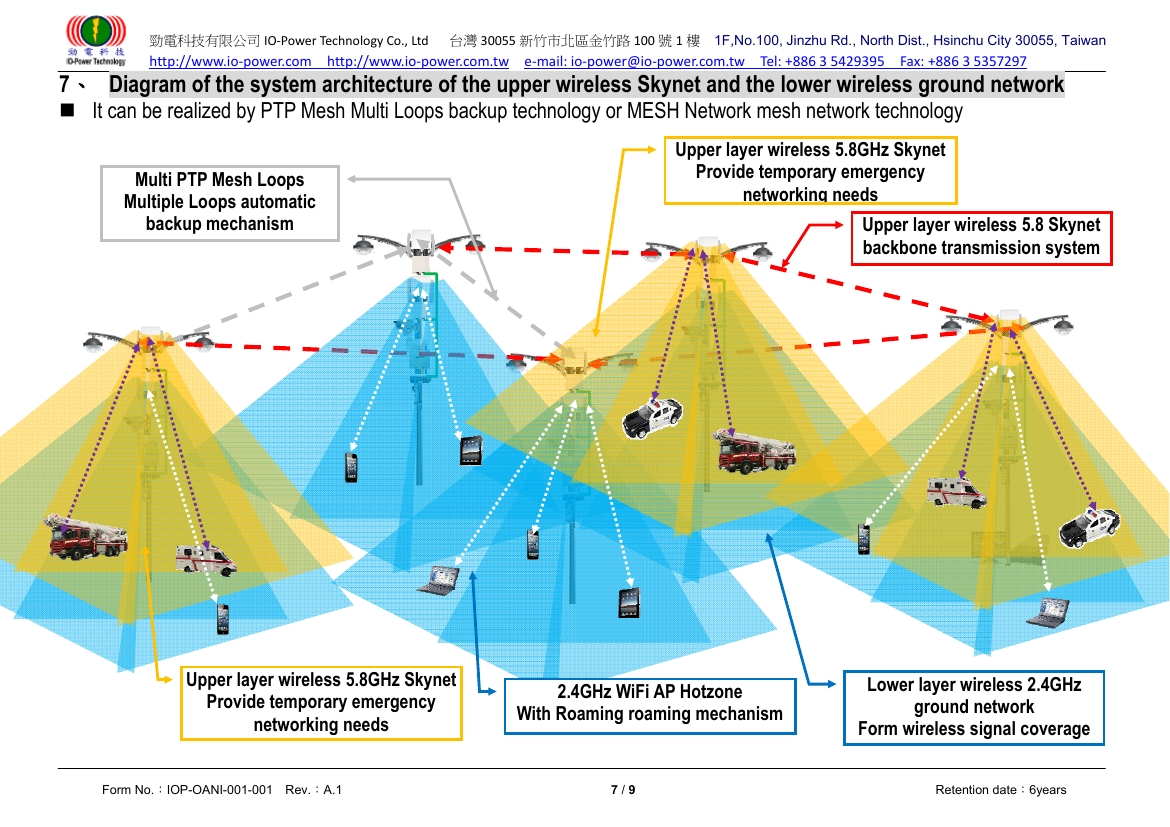

Hi-mobile Surveillance in WiFi Mesh network system (emergency disaster relief)

Vehicles Wireless Surveillance System of Multi Power Supply Solutions

Outdoor ultra-long-term in high temperature long life cycle DC UPS power system

Outdoor 3G / 4G Wireless Cloud Surveillance System
with『APS Parallel Solar DC UPS Power System』

Outdoors 3G/4G wireless cloud surveillance & temporary mobile surveillance system

Outdoor DC UPS Power Supply Solutions (SCBP + General Grid Power) for telecom / surveillance system

Outdoor WiFi MIMO large bandwidth by Multiple Hops wireless surveillance system planning (With DC UPS)

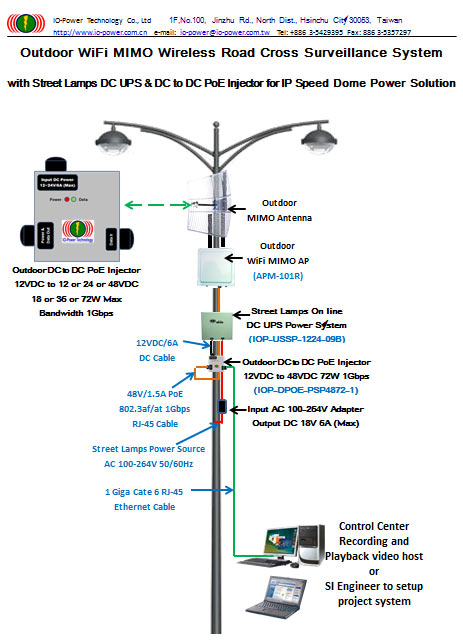

Part Area or Industrial Park or Highway Wireless Surveillance System with Street Lamps DC UPS Power System Solutions

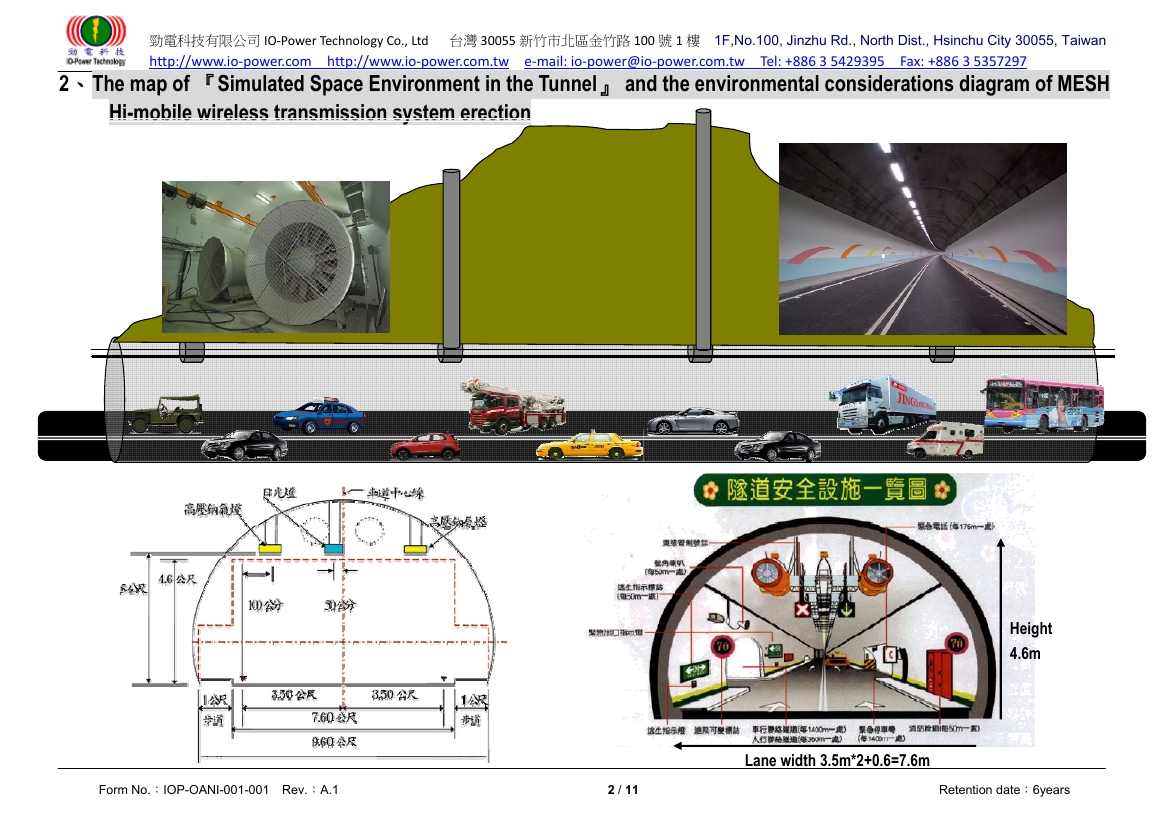

Outdoor EL-N & ML-N Series PTP Mesh Hi-mobile Wireless Network System Design for Train / Subway / MRT (Bus) / Highway

3G/4G Outdoor Mobile Cloud Surveillance System with Mobile DC UPS Power System

Outdoor Mobile 3G4G_WiFi Wireless Surveillance with DC UPS Power System Design EV3

AI artificial intelligence farm_LoRa_4G-LTE_PTP Mesh wireless surveillance transmission system planning and design 20180509 EV1


IOP-IP66-WMB-L1 Series4G-LTE + PTP Mesh wireless surveillance transmission backbone + WiFi wireless Internet service system

Outdoor high and low temperature IP66 wireless mobile monitoring system

<< With multi-function integration and extension expansion function >>

Download : IOP-IP66-WMB-L1 series _4G-LTE_PTP Mesh wireless backbone _WiFi wireless surf system EV1



Download : IOP-IP66-WMB-L1 series _4G-LTE_PTP Mesh wireless backbone _WiFi wireless surf system EV1

AI artificial intelligence farm LoRa + 4G-LTE + PTP Mesh wireless monitoring transmission system planning and design

Download : AI artificial intelligence farm_LoRa_4G-LTE_PTP Mesh wireless surveillance transmission system planning and design 20180509 EV1

Download : AI artificial intelligence farm_LoRa_4G-LTE_PTP Mesh wireless surveillance transmission system planning and design 20180509 EV1

Taoyuan Agricultural Expo 2018wireless surveillance & video walkie-talkie and power detection control management implementation project

2018/04/03

Download : Wireless surveillance and video walkie-talkie and power detection control management implementation project EV1



Download : Wireless surveillance and video walkie-talkie and power detection control management implementation project EV1



IO-Power 2018 New Products Announce List

DAPS Parallel Solar DC UPS Power System

IP66 Wireless Mobile Surveillance System



10KA DC / RJ-45 Lightning Protector

12V~48Vdc Parallel Backup 24Vdc Series Boost 96Vdc Output 400W



Product features fully upgraded, 2018 update released !!

IO-Power USSS-12V1224OA Series

Continuous by Cloudy Days / Rainy Days / Snowy Days of Solar Power System

Working in High Efficiency Capacity Charge & Discharge Type

High Efficiency Power Outlet & Ultra Low Self-wear DC UPS Power System

IO-Power USSS-12V3556OA Series

Continuous by Cloudy Days / Rainy Days / Snowy Days of Solar Power System

Working in High Efficiency Capacity Charge & Discharge Type

High Efficiency Power Outlet & Ultra Low Self-wear DC UPS Power System

Download Product Data Sheet: IO-Power - USSS-12V1224-OA Series Data Sheet 2018 V1.0_SW ENG

Download Product Data Sheet : IO-Power - USSS-12V3256-OA Series Data Sheet 2018 V1.0_SW ENG



Xi-Bin Expressway Elevated Engineering PTP Mesh Wireless Monitoring Transmission System Case Study

The implementation of the project: Wisdom Eye Technology Co., Ltd.

2017/11/15

Download Case Study Project Data File

Download Case Study Project Data File

4Units O4PSW series connected to 100Mbps bandwidth transmission test OK

New release !!     New release !!     New release !!

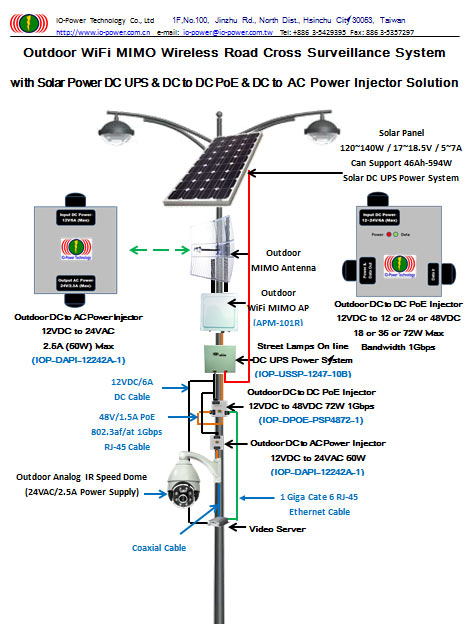

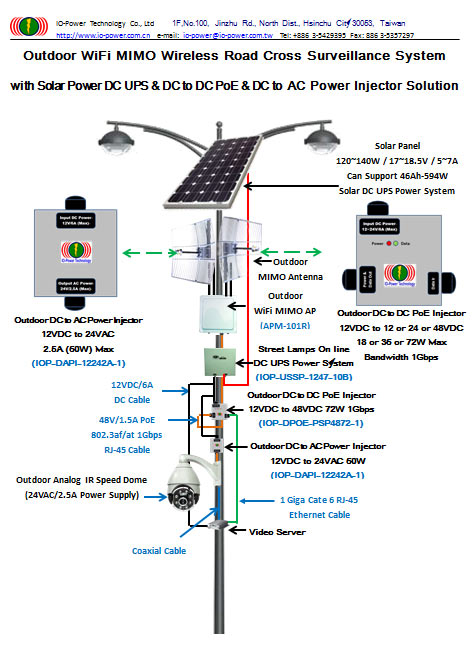

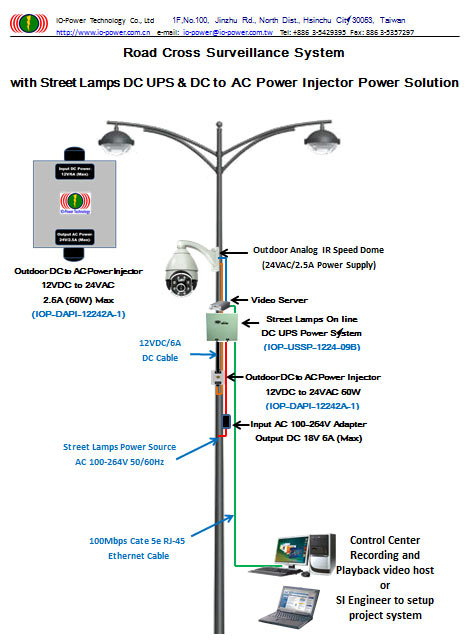

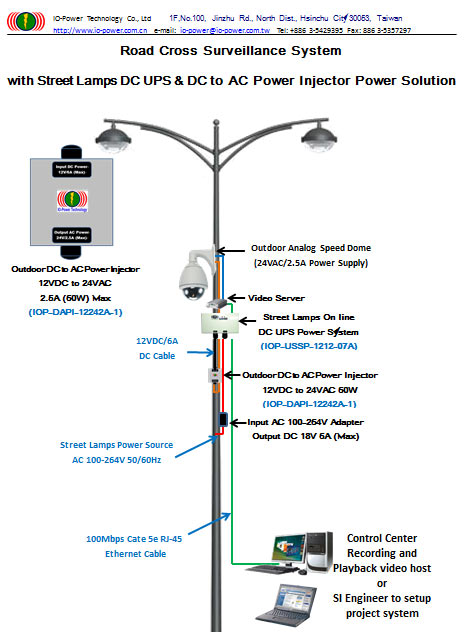

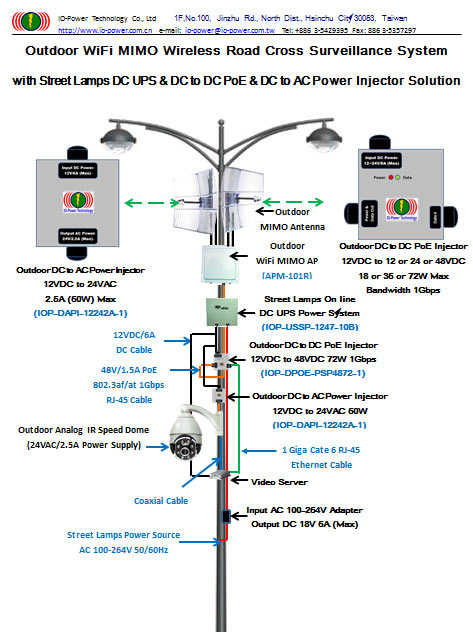

IOP-DAPI-12242A-1 IOP-DAPI-24242A-1
Input 12Vdc to Output 24VAC Input 24Vdc to Output 24VAC
Input Current 6A~ Above Input Current 3A~ Above
Output 24VAC/2.5A--60W Max Output 24VAC/2.5A--60W Max

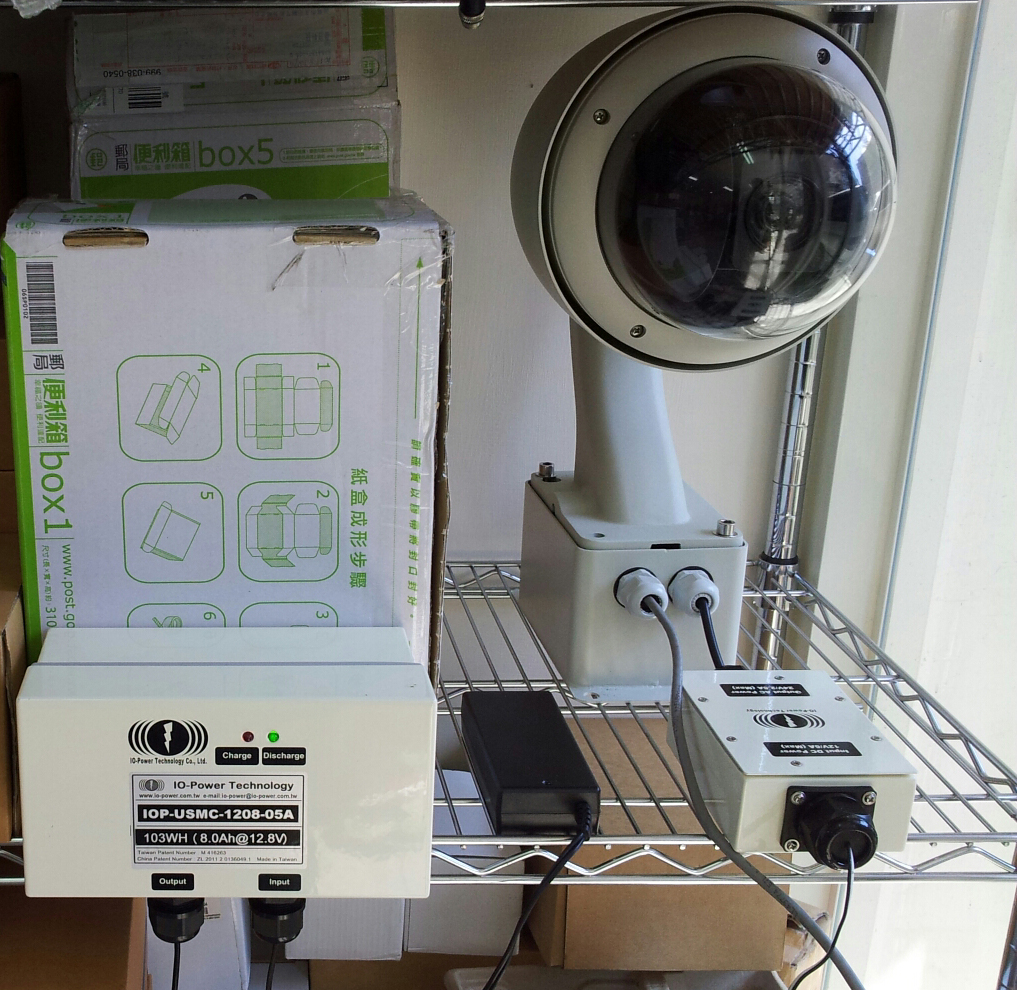

Specially designed for Speed Dome 24VAC AC power supply
Data Sheet Data Sheet  New release !!



New release !!     New release !!     New release !!

IOP-DAPS-I3O18A-1 IOP-DAPS-I3O18A-2
Input 12~24Vdc * 3 Insert

Parallel Connection 3 Insert Power

Output 12~24Vdc 6A (8A Instant max)

Input 12~48Vdc * 3 Insert

Parallel Connection 3 Insert Power

Output 12~48Vdc 6A (8A Instant max)

Input DC Voltage:12~24VDC (28V Max) Input DC Voltage:12~48VDC (56V Max)
Input DC Current: Suggest 6A~ Above Input DC Current: Suggest 6A~ Above
Output 12~24Vdc / 6A (8A Instant max)
--Output Power Supply 24Vdc 144W Max
Output 12~48Vdc / 6A (8A Instant max)
--Output Power Supply 48Vdc 288W Max
Designed for solar systems and uninterruptible power systems (UPS) and battery protection operation in parallel connection design
Data Sheet Data Sheet  New release !!



New release !!     New release !!     New release !!

IOP-SCBP-D12O48-1 IOP-SCBP-D24O96-1
Input 12Vdc * 4 Insert

Series connection 4 power to boost the output power supply voltage

12Vdc + 12Vdc=> Output 24Vdc
12Vdc +12Vdc +12Vdc=> Output 36Vdc
12Vdc +12Vdc +12Vdc +12Vdc=> Output 48Vdc

Input 12Vdc * 4 Insert

Series connection 4 power to boost the output power supply voltage

24Vdc + 24Vdc=> Output 48Vdc
24Vdc +24Vdc +24Vdc=> Output 72Vdc
24Vdc +24Vdc +24Vdc +24Vdc=> Output 96Vdc

Input DC Voltage:12VDC Input DC Voltage:12~24VDC
Input DC Current: Suggest 6A~ Above Input DC Current: Suggest 6A~ Above
Output 24~48Vdc / 6A (8A Instant max)
--Output Power Supply 48Vdc 288W Max
Output 24~96Vdc / 4A (6A Instant max)
--Output Power Supply 96Vdc 384W Max
Designed for solar energy systems and uninterruptible power systems and battery in series connection power supply operation protection designed
Data Sheet Data Sheet New release !!





IO-Power IOP-SELP-1P10KA-X

 [Dedicated to Lightning Area]
Ethernet lightning protection and surge protector

IO-Power IOP-SELP-1P10KA-X Data Sheet



EL-N & ML-N Series Utility Simple Network Management Manual

Download: EL-N & ML-N Series Utility Simple Network Management Manual & Software



『Mobile PTP MESH wireless surveillance system』with『Mobile 3G4G wireless router multi-WAN backup export』application design EV3_Price0



3G4G Mobile Cloud Surveillance System_EV 170220



IOP-DANFO-5M3000606

5GHz 30dBi Dual Polarization MIMO Dish Antenna

Electrical Specification

Frequency range

5150 - 5850 MHz

Gain

30 dBi

VSWR

1.8 : 1 Max.

Polarization

Dual Linear, +- 90°

HPBW / Horizontal

6°

HPBW / Vertical

6°

Standard compliance

N / A

Front to back ratio

-35dB (Max)

Isolation

24dB (Min)

Power handing

100W (cw)

Impedance

50 Ohms

Connector

N Jack Female × 2

Environmental & Mechanical Characteristics

Survival wind speed

241Km/hr

Temperature

-40 to +80

Humidity

95% @ 55

Radome color

Gray

Radome material

Aluminum Die Cast

Weight

6.15Kg

Dimensions

Φ 600

Mounting Mast Dimension

Ø50 ~ Ø80



Use 5GHz 30dBi dual-polarized MIMO gain directional dish antenna
 For long distance point to point wireless transmission of connection signals 30Km computing

Product Data Sheet Download



IOP-PANFO-5T2101708

5GHz 21dBi Triple Polarization MIMO Panel Antenna

Electrical Specification

Frequency range

5150 - 5875 MHz

Gain

20 +- 1dBi

VSWR

2 : 1 Max.

Polarization

Linear, Horizontal / Vertical & 45°

HPBW / Horizontal

17°

HPBW / Vertical

8°

Sidelobe Level

-10dB (Max)

Front to back ratio

-35dB (Max)

Isolation

25dB (Min)

Power handing

6W (cw)

Input Impedance

50 Ohms

Connector

N Jack × 3

Environmental & Mechanical Characteristics

Survival wind speed

216Km/hr

Temperature

-40 to +80

Humidity

95% @ 55

Lightning protection

DC ground

Radome color

Gray-white

Radome material

PC, UV resistant (UL94 V-2)

Weight

2.5Kg

Dimensions

371 × 371 × 165 mm

Waterproof

IP-X7

Mounting kit

Pole mount & Wall mount

Product Data Sheet Download



Download : IO-Power C-LiFePO4 Lithium Batteries Discharge Watts Define



Outdoor EL-N & ML-N Series PTP Mesh Hi-mobile Wireless Network System

Design for Train / Subway / MRT (Bus) / Highway



Outdoor PTP Wireless Over Ethernet AP Outdoor PTP Mesh Backup Network Outdoor PTP Mesh Hi-mobile System


WEPTP-101DB / TRPTP-202DB


EL-N-1 / EL-N-2 / EL-N-3


ML-N-1 / ML-N-2 / ML-N-3



New DC UPS Mainboard Upgrade New Products Features Announce !!

IO-Power technology USSP & USSS & USMC series, based on -40℃ ~ + 80℃ design need of industrial level environment tolerance grade, for hardware circuit and electronic component of planning and import. Match can bear -20℃ ~ + 60℃ of resistance high & low temperature C-LiFePO4 lithium batteries, using metal shell of IP66 above of institutions design and the used 1300W super high anti-lightning bursting wave impact of protection, to build out outdoor waterproof online intelligent type DC UPS not interrupted operation power system. It can affordable outdoor -30℃ ~ + 75℃ operating environment require of high & low temperature resistant products. To help face a variety of systems integrators in the construction after the power supply problems, you can choose the following achieved the best power solution:

1. The street lamps, Garden lamps ... etc., not all 24-hour power supply for power charging source:

At day use "outdoors on-line intelligent DC UPS not interrupted operation power system (Outdoor DC UPS)" within built charge & discharge controller, to combine of customized C-LiFePO4 lithium batteries and power supply for operation system about 8A max loading as around 100W/H power supply to the devices.

At night can through street lamps or garden lamps of general mains AC power, using transform adapter to exchange AC power turned into DC power in15~32VDC. And then entered to "outdoor on-line intelligent DC UPS not interrupted operation power system" within built charge and discharge controller, turned out 12VDC voltage power for discharge loading system in 11.7V~14.2V DC power voltage. At the same time, using within built charging and discharging controller by turned out of 14.2V DC power to charging internal built of 12.8V C-LiFePO4 lithium batteries by fast charge mode.

2. The solar power, wind power and other energy power ... etc., with a patented design『DAPS- DC Auto Power Selector by parallel connection mode of power supply』for power charging source:

The DAPS will be collection of DC power from different power sources; through special ideas design independent parallel connection to integrate all power together. Working by similar input power voltage and higher voltage is preferred modes and use loading distribution of current input mode ... etc., to direct charge “outdoors on-line intelligent DC UPS not interrupted operation power system (Outdoor DC UPS)". And then through within built charging and discharging controller by directly DC to DC way for down grade voltage and rectifier current to discharge loading system in 11.7V~14.2V DC power. When any entered power source interrupted, other entered power source will undertake power of needs power, it can be avoided in the operation of equipment because there is no power source leads to cease operation of the system.

3. Car 12VDC or 24VDC generator ... etc., with a unique design “DBBVC- DC Buck Boost Voltage Convertor” for power charging source:

Using vehicles of generator (engine power circuit) or Cigar light device of plug hole output contact, through unique design of car DC Buck Boost Voltage Convertor, will entered 12~28VDC/6A (8A maximum design, can avoid on car generator in the vehicles power caused damage risk), lifting pressure turned out 20VDC/4A (5A maximum). To direct charge " outdoors on-line intelligent DC UPS not interrupted operation power system (Outdoor DC UPS)", and then through within built charging and discharging controller by directly DC to DC way for reduced voltage and rectifier current to discharge loading system in 11.7V~14.2V DC power.

In addition, the DC Buck Boost Voltage Convertor out of 20VDC/4A (5A maximum) power, can charging the Notebook Laptop use vehicle cigar light pole DC power too.

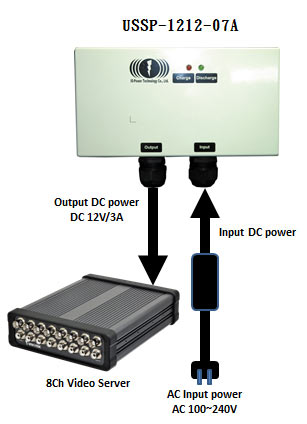

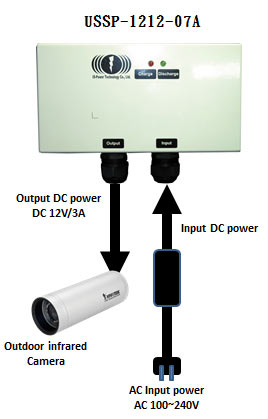

4. General power of indoor or outdoor ... etc., all 24hour power supply for power charging source:

Entered 100-260V AC power source, exchange AC to DC by transform adapter conversion for 15~32V DC voltage and 4.5~8A DC current. Through " outdoors on-line intelligent DC UPS not interrupted operation power system (Outdoor DC UPS)" within built charging and discharging controller by directly DC to DC way for reduced voltage and rectifier current to discharge for loading system in 11.7V~14.2V DC power. It is not needs exchange DC power of battery to AC power and then AC power exchange to DC power again and will save exchange power of 50% conversion losses.

Specifications additional to general uninterrupted power systems (UPS) power supply capacity of the indoor mark mode, that has shown corresponds to the VA value and discharging time and full charging time. It will help the system integrators or operators to plan projects design and let designer can easily adopt the corresponding data and do projects appraisal of the outdoor DC UPS power supply system in advanced.

5. Using general power supply or streetlights power + solar power and other green energy generator + temporary power... etc., for variety of hybrid power sources, with a patented design “DAPS - DC Auto Power Select by parallel connection mode of power supply” for power charging source:

The DAPS will be collection of DC power from different power sources; through special ideas design independent parallel connection to integrate all power together. Working by similar input power voltage and higher voltage is preferred modes and use loading distribution of current input mode ... etc., to direct charge “outdoors on-line intelligent DC UPS not interrupted operation power system (Outdoor DC UPS)". And then through within built charging and discharging controller by directly DC to DC way for down grade voltage and rectifier current to discharge loading system in 11.7V~14.2V DC power. Because has more stable of general power or street lamps power or solar power... and other power sources, so built-in customized C-LiFePO4 lithium batteries is almost at full charging power status or stability can be achieved full operational status, it can completely solve the outdoor exigencies of the uninterruptible power supply issues.

6. Mobile backup power system (built-in battery) or independent separate battery ... etc., with a unique design “DBBVC-DC Buck Boost Voltage Convertor” for power charging source:

If want to use battery charging the battery, will meet between battery voltage have differential pressure is not too much, so shall be could not charging each other or balance of power voltage or averaging power capacity. It needs to match the boost voltage to achieve certain level of 2V voltage over the differential pressure between the batteries, finally can achieve do the battery to charge battery upgrade voltage effectiveness.

Through the unique design of the “DBBVC-DC Buck Boost Voltage Convertor” entered the battery 12~28VDC / 6A the power sources, buck out or boost out of 20VDC/4A (5A max) charging power supply. That can direct charge low voltage for mobile power supply battery or charge controller to charge low voltage battery or built-in charge controller in the functioning of the battery ...etc. Even It can also fine-tune the automatic lifting power switch out of 14.4~15VDC / 5A (6A max) as charge power or discharge power, applied to independent 12V battery charging or similar emergency power system to start car batteries.

Outdoors on-line intelligent DC UPS not interrupted operation power system, solutions for various systems & applications:

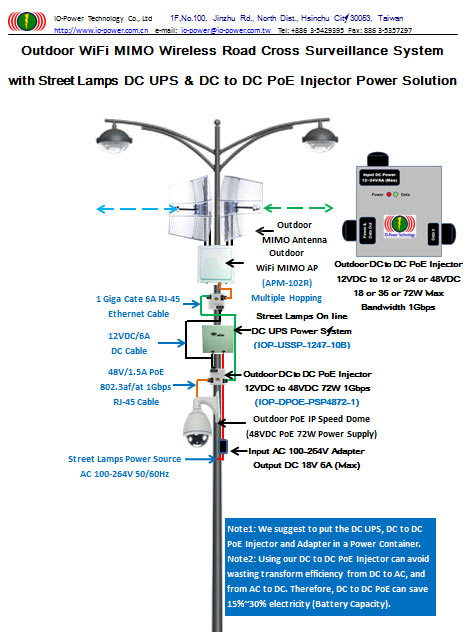

Street Lamps Type DC UPS Power System



Car / Vehicle Type DC UPS Power System



Solar Power APS Type DC UPS Power System



Mobile Backup Power Type DC UPS Power System



Outdoor 5GHz 16dBi Dual Polarization MIMO Panel Antenna

IOP-PANJO-5M1602422

Support Point to Point Transmit Distance about 2Km and Bandwidth 150Mbps

Electrical Specification

Frequency range

5150 - 5875 MHz

Gain

15-16 dBi

VSWR

2 : 1 Max.

Polarization

Dual Linear, +- 90°

HPBW / Horizontal

17°-24°

HPBW / Vertical

17°-22°

Front to back ratio

-20dB (Max)

Isolation

25dB (Min)

Power handing

6W (cw)

Impedance

50 Ohms

Cable

RG233, 70cm

Connector

N Jack × 2

Environmental & Mechanical Characteristics

Survival wind speed

216 Kg / hr

Temperature

-40 to +80

Humidity

95% @ 55

Lightning protection

DC ground

Radome color

Gray

Radome material

ABS, UV resistant

Weight

800g

Dimensions

210 x 210 x 73 mm

Waterproof

IP-X5

Mounting kit

Pole mount & Wall mount

*exclusive of mounting kit





Outdoors 3G/4G wireless cloud surveillance & temporary mobile surveillance system

Real Outdoor Waterproof, Resistant to High Temperature 70 , Life Cycle more than 6 Years and Outdoor DC UPS Support Power Supply over 12Hrs - 130Hrs.

Should for "Fire site emergency ", "Emergency accident temporary ", " Illegal to deliver garbage", " Forest stealing the timber ", "Temporary activities ", "Construction site ", " Marathon road race activity "...and so on, to do mobile video record and cloud real time monitoring.

Integration Special Features:

n Cloud Network IR Camera

- Support 1.3 Mega Pixels network Camera and 20-meter infrared effect at night.

- Design of VPN network, simply enter your account number and password in advance online, without making any setting, you can make a cloud video monitoring and network real time monitor.

- If connected to the Internet network can perform remote control setting on a cloud.

- Site backups can used with NVR video recording, also can be used with NAS backend video management.

n The Cloud of Network Monitoring Platform Run Recording and Playback Features

- Only need connected to the Internet network, cloud platform will automatically perform the cloud video in real time.

- Only need connected to the Internet network, you can watch real-time video recording images from cloud platforms.

- Only need connected to the Internet network, you can remote control and playback video recording images from cloud platforms.

- The cloud record video type can select 7-day or 30-day cycle, covers the video replays and download access to your files.

n  Outdoor 3G/4G Wireless Router

- 3G/4G wireless, mobility and wireless advantage does not subject to space restrictions, particularly suitable for monitoring emergency and temporary needs.

- 3G wireless bandwidth up to 2Mbps, 4G the wireless bandwidth up to 8~18Mbps, can handle single or multiple cameras transmission needs.

- 3G/4G wireless router transfers, only need 3G/4G SIM card is inserted, without making any setting can online transferred right away.

n Outdoor Long-term DC UPS Power Supply System

- Power supply system with IP66 outdoor environment with 70 heat-resistant normal operation of more than 6 years of service life.

- Support for 12 hrs ~ 130 hrs outdoor power supply system (or connect online backup DC UPS to place an unlimited number of days), (based on the 3G/4G wireless video monitoring system in the cloud power calculations)

- Use large power consumption DC UPS type can supports eight cameras working at same time and large current fast-charge available in a short time (2-10 hours) full battery.

n  Magnet Match-Assembly Equipment and Easy Storage Tripod

- Portable mobility combined with the magnet change and free features such as adsorption of metal fixation, suitable for use in an emergency



Outdoor 3G/4G Wireless Cloud Surveillance System Demo

Dome Website: http://service.skywatch24.com/en/login

Account: io-power@io-power.com.tw

Password: 25081985



Congratulations!!   IO-Power Technology gets I454017 invention patents.

Since 30/03/2011 IO-Power technology put forward [online interactive power control system] for invention patent and get Taiwan patent application number 100110906.

After 3 years of project review by patent examination personnel, finally culminated in the 21/09/2014 get I454017 certificate of patent for invention.

During patent: 2014/09/21 ~ 2031/03/29

Patents in total 16 items, patents cover –

[Enter charge], [output discharge], [parallel charging], [parallel discharge], [cascade PoE power input and power output], [characteristics of charge and discharge management], [remote control with the purpose to judge] ... And so on





IOP-DAPS-I3O18A-1





IOP-DBBV-I12O20-1


Outdoor WiFi 5GHz 23dBi Dual Polarization MIMO Panel Antenna

IOP-PANFO-5M2300808

Support Point to Point Transmit Distance about 15Km and Bandwidth 150Mbps

IOP-PANFO-5M2300808

5GHz 23dBi Dual Polarization MIMO Panel Antenna

Electrical Specification

Frequency range

4900 - 5875 MHz

Gain

22 dBi ± 1dBi

VSWR

2 : 1 Max.

Polarization

Dual Linear, +- 90°

HPBW / Horizontal

8°

HPBW / Vertical

8°

Side Lobes Level

-10dB (Max)

Front to back ratio

-35dB (Max)

Isolation

20dB (Min)

Power handing

6W (cw)

Impedance

50 Ohms

Connector

N Jack × 2

Environmental & Mechanical Characteristics

Survival wind speed

216Km/hr

Temperature

-40 to +80

Humidity

95% @ 55

Lightning protection

DC ground

Radome color

Gray-white

Radome material

PC, UV resistant

Weight

2.5Kg

Dimensions

371 × 371 × 165 mm

Waterproof

IP-X7

Mounting kit

Pole mount & Wall mount

*exclusive of mounting kit



Outdoor WiFi MIMO Large-bandwidth Wireless Transmission System

At the sewage treatment plant surveillance and detection system transmit design.

Implementation of the project company: Today's instrument company corp.

http://www.todays.com.tw/



Life Cycle of Different Types of Batteries in High and Low Temperature Comprehensive Comparison Tables

No

Temp

Lead-acid

Solar DC UPS

Deep-cycle Lead-acid

Solar DC UPS

General Li-Ion

Solar DC UPS

C-LiFePO4 Lithium

Solar DC UPS

IO-Power Product Remark

1

-30°C

Unable to work

Unable to work

Unable to work

Possible to work

(able to work with housing)

Controller in the housing and mechanism design, it can work with housing @-30°C

2

-25°C

Unable to work

Unable to work

Unable to work

Able to work
(able to work with housing)

It is able to work @-25°C, however, the discharging capacity is only35-45%

3

-20°C

Unable to work

Unable to work

Able to work
(Discharge capacity 15-25%)

Able to work
(Discharge capacity 45-55%)



4

-15°C

Unable to work

Unable to work

Able to work
(Discharge capacity 20-30%)

Able to work
(Discharge capacity 55-60%)



5

-10°C

Able to work
(Discharge capacity 15-25%)

Able to work
(Discharge capacity 15-25%)

Able to work
(Discharge capacity 30-45%)

Able to work
(Discharge capacity 60-80%)



6

-5°C

Able to work
(Discharge capacity 25-40%)

Able to work
(Discharge capacity 30-50%)

Able to work
(Discharge capacity 40-60%)

Able to work
(Discharge capacity 80-90%)



7

0°C

Able to work
(Discharge capacity 30-50%)

Able to work
(Discharge capacity 40-60%)

Able to work
(Discharge capacity 60-80%)

Able to work
(Discharge capacity 85-95%)



8

25°C

300-500 times
(Solar energy system is deep charging and discharging. Cannot refer to the transient discharging for car)

500-1000 times

500-1000 times

More than 2000 times

Working temperature is based on 25°C for both charging and discharging

9

33°C

150-250 times
(life cycle cuts half when it raise every 8°C)

250-500 times
(life cycle cuts half when it raise every 8°C)



More than 2000 times



10

41°C

75-125 times

125-250 times

When it is over 45°C
Life cycle diminishes obviously.

More than 2000 times



11

49°C

33-65 times

65-125 times

When it is over 50°C
Life cycle diminishes obviously and has risks of explosion.

More than 1500 times



12

56°C

Unable to work

Unable to work

Unable to work

More than 1200 times



13

63°C

Battery damage

Unable to work

Battery damage

More than 700 times



14

70°C

Battery damage

Battery damage

Battery damage

Unable to work
(able to work with housing)

When it is 70°C, controller takes protection and will stop discharging



Download : Outdoor Solar DC UPS Power System Power System Comprehensive Comparison tables_Ev7



Outdoor Wireless MIMO AP Water-proof & Dust-proof IP67 Test

(Customer Self Test Report)

Download Test Report : IO-Power Outdoor Wireless MIMO AP IP67 Customer Self Test Report



Outdoor Solar DC UPS Power System

Comprehensive Comparison Tables

** The C-LiFePO4 Lithium battery manufacturers, each battery formulations and raw materials are not the same, so different manufacturers of lithium iron phosphate battery the battery output characteristics vary considerably, including high and low temperature tolerance and number of charge and discharge cycle life and charging and discharging efficiency will be significantly different.**

No.

Item

Lead-acid
Solar DC UPS

General Li-Ion
Solar DC UPS

C-LiFePO4 Lithium Solar DC UPS

Remark

1

Battery Management

Non

Yes, but only high level power system, general level is Non

Yes

Lead-acid battery cannot cell management charging & discharge

2

Battery cycle life
(for Indoor Used)

300~450 times, Left 50-60% Power capacity

500~1000 times, Left 80% Power capacity

>2000 times, Left 80% Power capacity

Real outdoor to test UPS of C-LiFePO4 Lithium Batteries after 1200 times are still have 95% power capacity

3

Service life
(for Indoor Used)

1~1.5 years

1.5~2.5 years

>7 years

Solar DC UPS of C-LiFePO4 Lithium Batteries for indoor used, will have more battery cycle life

4

Battery cycle life
(for Outdoor Used)

150~300 times, Left 50-60%
Power capacity

300~600 times, Left 70%
Power capacity

>1100 times, Left
>80% Power capacity

At the time of system design, you want plus the power attenuation and doubled the capacity of the number and replacement of time and frequency

5

Service life
(for Outdoor Used)

0.5~1 year
(need replace 6 times in 3 years)

1~1.5 year
(need replace 3 times in 3 years)

>3 year

Outdoor UPS of C-LiFePO4 Lithium Batteries real outdoor tested 3 years still 95%~ power capacity

6

Operation of high and low temperature

-0 ~ 45 °C
(with Housing can support -10~55
°C)

-5 ~ 45 °C
(with Housing can support -20~55
°C)

-20 ~ 70 °C
(with Housing can support -30~75
°C)

General Lithium batteries temperature 50°C operation easily damaged

7

Proportional to the design capacity plus

More than 180%
(Deep cycle battery required bonus 150%)

More than 150%

More than 110%

For the sake of the system enough power capacity of the equipment operation, designs are subject to decay to add on, to cope with the operation of the system power supply enough

8

Match Solar Panel

Design wattage required bonus 180%

Design wattage required bonus 150%

Design wattage required bonus 110%

Having regard to the increase in battery capacity to match more of the solar panel, so will affect the set up costs and space used for erection and erection equipment difficulties, for the system is satisfied that requirements for the assessment of projects.

9

Set up space and erection harder

Solar panel need more wattage and size

Solar panel need more wattage and size

Solar panel wattage can match the design and area

Solar panel is too large, would create a wind pressure of an area to improve many, resulting in erection and maintenance of security risks increase, too heavy batteries, too

10

Memory effect

No

No

No

C-LiFePO4 Lithium Batteries can fast charging and large current discharge

11

Security

Releasing toxic gas and explosion hazards

Have explosion hazards risk in 50~60°C

No explosion risk**

Solar DC UPS of C-LiFePO4 Lithium Batteries @short circuit conditions, maximum temperature up to 120~130°C, at the same time have the security design of the pressure relief valve, so no explosion risk (please see the test report)

12

Maintenance costs

Very higher

Higher

Lowest

General Li-Ion batteries for use in outdoor environments, will face 3 times in 3 years replacement cost ; While operation due to frequent battery replacement issues, resulting in low system properly rate

13

Battery cost

Cheap

Expensive

Very Expensive

Cost for 1 given to lead-acid battery < deep Lead-acid as 3 times< General Li-Ion as 4~5 times < C-LiFePO4 Lithium as 6~7 times

14

Green environmental protection
(RoHS)

Lead pollution
(No coincide)

Yes
(
Coincide)

Yes
(
Coincide)

2015 Lead Acid Battery will be disabled

Note1: Outdoor solar DC UPS system normally taken facing outdoor high temperature of 55~70°C operating environment requirements, Lead-acid & General Li-Ion battery will be shorten cycle life, even have explosion risk.

Note2: Outdoor solar DC UPS system usually need to face deep discharge and high current charging cycle operational requirements, Lead-acid & General Li-Ion battery will be shortening cycle life and even will accelerated damage.

C-LiFePO4 Lithium Batteries different temperature and short circuit test report



Outdoor DC UPS Power System Output 12VDC Transmit Distance Test

  + x12 = 20 meter

Test 1 : Non Charging Output Power Voltage 13.20V ----20 meter ---->13.19V
DC 13.19V Power Supply for IP Camera working test OK (Pass)

+ x22 = 38 meter

Test 2 : Non Charging Output Power Voltage 13.30V ----38 meter ---->13.26V
(
13.30V ---->20 meter @13.29V---->38 meter @13.26V )
DC
13.26V Power Supply for IP Camera working test OK (Pass)



Indoor / Outdoor Long-term Model

Online Type Stability Voltage Uninterruptible Power System

12VDC Powered Distance Voltage Drop Test Report

No.

Battery Voltage

Test conditions

Distance

Transformers No Power Supply

Transformers Power Supply

Camera No Power Supply

Camera Power Supply

1.5M

47M

1.5+45
+0.5=47

55M

1.5+45
+1.5*5+1=55

63M

1.5+45
+1.5*10+1.5=63

71M

1.5+45
+1.5*15+2=71

Measuring Voltage

13.3V





13.3V

13.3V

13.29V

13.29V

13.28V

DC voltage difference distance less than the AC voltage difference from many (Consistent with the theory of electricity)

Measuring Voltage

13.2V





13.05V

12.44V

12.12V

11.74V

11.46V

Camera Operation











OK

OK

OK

OK

OK

Thread number not included in voltage reduction assessments

Measuring Voltage

13.2V





13.06V

12.5V

12.23V

11.9V

11.52V

Camera Operation











OK

OK

OK

OK

OK

Recommended 1:12VDC power supply within distance to 50M is good.
Recommended 2 distance after over 50M: 12VDC power supply, voltage after voltage drop is less than 12.3V, but because most of the cameras are operating within the range of 9V~16V, therefore can also be functioning properly.

 Download : 12VDC Powered Distance Voltage Drop Test Report file



Outdoor DC UPS Power System Output 12VDC for Multi Cameras Test

+

Power Supply for IP Camera * 4pcs working test OK (Pass)
               Suggest Power Supply for IP Camera * 2pcs Max (< 1.5~3A Max)

+

Power Supply for IP Camera * 6pcs working test OK (Pass)
               Suggest Power Supply for IP Camera * 4pcs Max (< 3A Max)

+

Power Supply for IP Camera * 10pcs working test OK (Pass)
               Suggest Power Supply for IP Camera * 8pcs Max (< 6A Max)



Bank ATM / Museum / Goldsmith & Jewelry Shop / Store / Exhibition Booths / Police Station Firearms Room & Military Ammunition Depots ...and so on
Distributed UPS Surveillance System


I I I I I I

IO-Power Technology Co., Ltd. 1F, No.100, Jinzhu Rd., North Dist., Hsinchu City 30055, Taiwan, R.O.C.  Tel:+886 3 5429395 Fax:+886 3 5357297  E-mail:io-power@io-power.com.tw




Web Management Mail to  io-power@io-power.com.tw   Copyright (C) 2009 ~ IO-Power Technology Co., Ltd Last Upgrade:02.21.2018
